SECTION 7

7. OPERATOR INSTALLATION

7.1. New Site Installations

When installing the D5 SMART, it is important to take note of the information
found in Sections 7.1.1. and 7.1.2. when determining the position of the
Foundation Plate, and the height of the D5 SMART in relation to the gate that is
to be automated.

7.1.1. Locating an Initial Reference Point

Firstly, it is necessary to establish a reference point. To do this, manually open and close
the gate so that it moves past a stationary point (i.e. a vertical spike), and determine
which part of the gate (including its wheels) protrudes the furthest towards where the
D5 SMART will be installed. Refer to the examples shown below.
Check for wheels, palisade, uprights, etc. that could potentially collide
with the pinion.
Palisade Palisade
Gate Gate
GATE MOVEMENT GATE MOVEMENT
Foundation
for D5 SMART
Palisade Gate
Gate
GATE MOVEMENT GATE MOVEMENT
Foundation
for D5 SMART
Possible
Collision
Once the point which protrudes the furthest has been found, this will be the
reference point to be used when finding the optimum position for the
D5 SMART.
Gate Rail Gate Rail
Edge that Edge that
protrudes out protrudes
the furthest the most
(Reference Point) (Reference Point)
Gate Rail Gate Rail
Palisade
Edge that Edge that
protrudes out protrudes
the furthest the most
(Reference Point) (Reference Point)
page 18
Palisade
Warped Gate
GATE MOVEMENT
Foundation
for D5 SMART
Palisade Palisade
Gate Gate
GATE MOVEMENT GATE MOVEMENT
Foundation
for D5 SMART
Possible
Collision

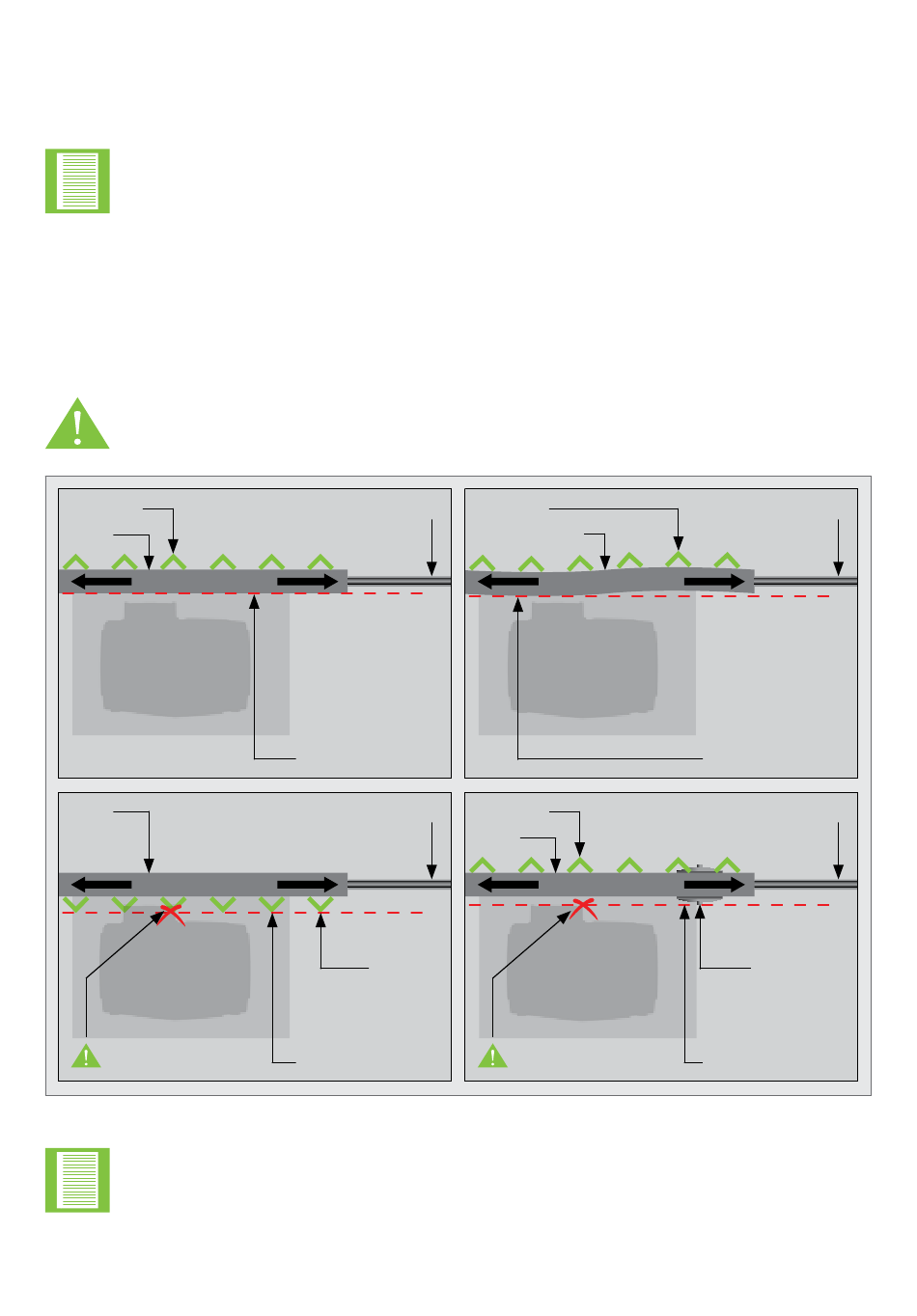

FIGURE 9. FINDING A REFERENCE POINT
OPERATOR INSTALLATION
Gate Rail
Edge that
protrudes
the furthest
(Reference Point)
Gate Rail Gate Rail
Gate Wheel
Edge that Edge that
protrudes out protrudes
the furthest the most
(Reference Point) (Reference Point)
