SECTION 7

7.10.3. Placing the Lower Battery Tray and Charger back into Position

Ensure that the Camlock is in the "unlocked" position and that the Release
Handle is partially open.
Place the Lower Battery Tray into position. Whilst doing this, route the cabling and
harnesses through. A click from both sides will be heard if the tray is fitted correctly.
Ensure that the Cam Driven
Slide is in the correct
position before placing the
Lower Battery Tray back into
the Gearbox.
i.e. Push it to the left.
Refer to Section 7.4 -
"Preparing the D5 SMART
for Installation" for further
information on locked and
unlocked positions
Note the position of the
Override Sensor Harness.
Gearbox
Groove for
Harnesses
Lower
Battery Tray
Cam Driven
Slide
Cam Driven Slide
Cam Driven Slide

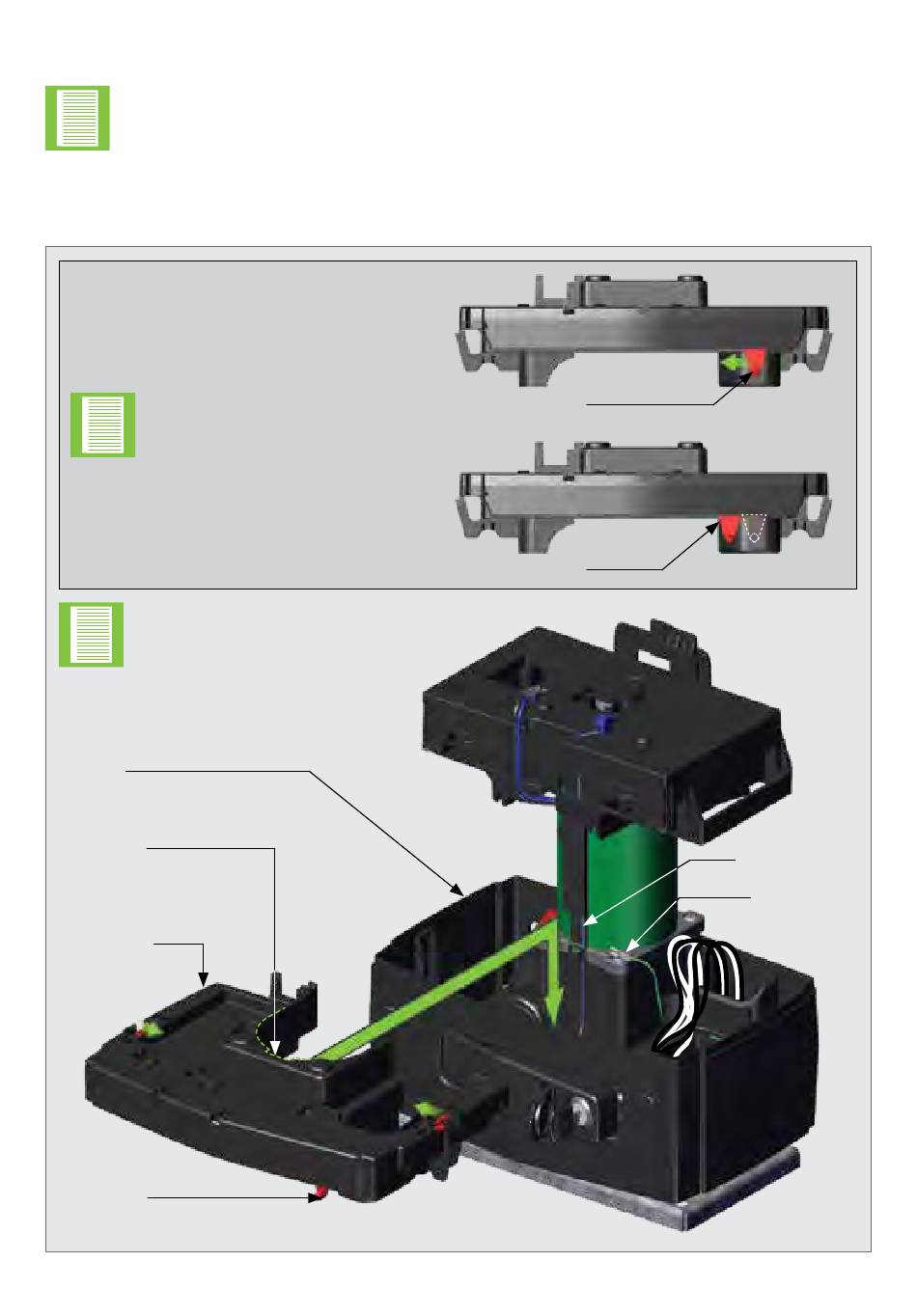

FIGURE 71. LOWER BATTERY TRAY PLACEMENT
page 43
OPERATOR INSTALLATION
Locked
Unlocked
Override Sensor
Harness
Earth Harness
