SECTION 7

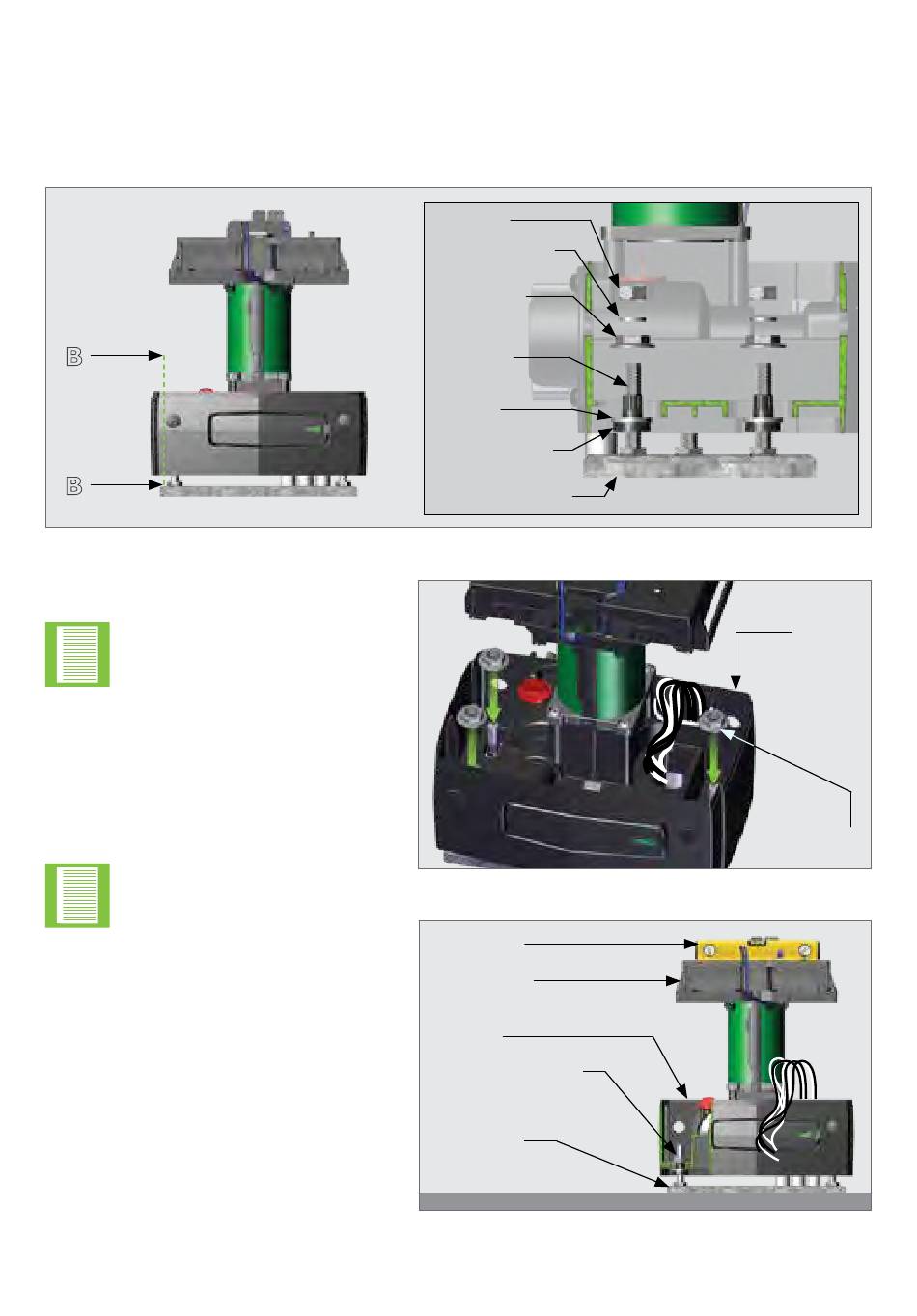

7.8. Height Adjustment

The D5 SMART's unique Height Adjustment System adjusts from the top of the gearbox.
This adds further security to the system, as it is not possible to access the lock nuts from
the outside of the gearbox.
B
B
Only add the Spring
Washers and Lock Nuts
once the Rack has been
installed and the operator
height is correct. See
Section 7.9.2. - "Finalising
the Height Adjustment".
Place a Top Height Adjuster onto
each Mounting Bolt so that it
engages with the teeth on the
Bottom Height Adjuster.
Note the orientation of the
Top Height Adjuster as
shown in Figure 50 and 51.
Using a ratchet and a 19mm socket,
turn the Top Height Adjuster anti-
clockwise to lift the Operator, or turn
it clockwise, to lower the Operator.
Using a spirit level, ensure that
the Operator is level. If not, use
the Height Adjusters to level the
Operator.
Lock Nut
Spring Washer
Top Height
Adjuster
Mounting
Bolt
Washer
Bottom Height
Adjuster
Foundation Plate
Spirit Level
Control Card
Platfrom
Gearbox
Height Adjustment
System
Foundation
Plate
page 35
OPERATOR INSTALLATION
Section View B-B
FIGURE 50
Gearbox
Top Height
Adjuster
FIGURE 51
FIGURE 52
