Master Interface Submenu

The VMEbus master setup lets you configure the XVME processor board's VMEbus
master interface.
When the master interface setting is turned on, master image 0 is re-
served for BIOS use. To avoid conflict, master images 1, 2, and 3 are
available for use.
PhoenixBIOS Setup–Copyright 1985-95 Phoenix Technologies Ltd.
Request Level:
Request Mode:
Release Mode:
↑↓
F1 Help
←→
ESC Exit
Option Description
Request Level Sets the bus request level when requesting use of the VMEbus to Level 0, Level 1, Level 2, or
Level 3. The default is Level 3.
Request Mode Sets the bus request mode. Choices are Demand or Fair. The default is Demand.
Release Mode Sets the bus release mode to use when controlling the VMEbus. The default is When Done.
Note
Master Interface
[Level 3]
[Demand]
[When Done]
Select Item
Select Menu

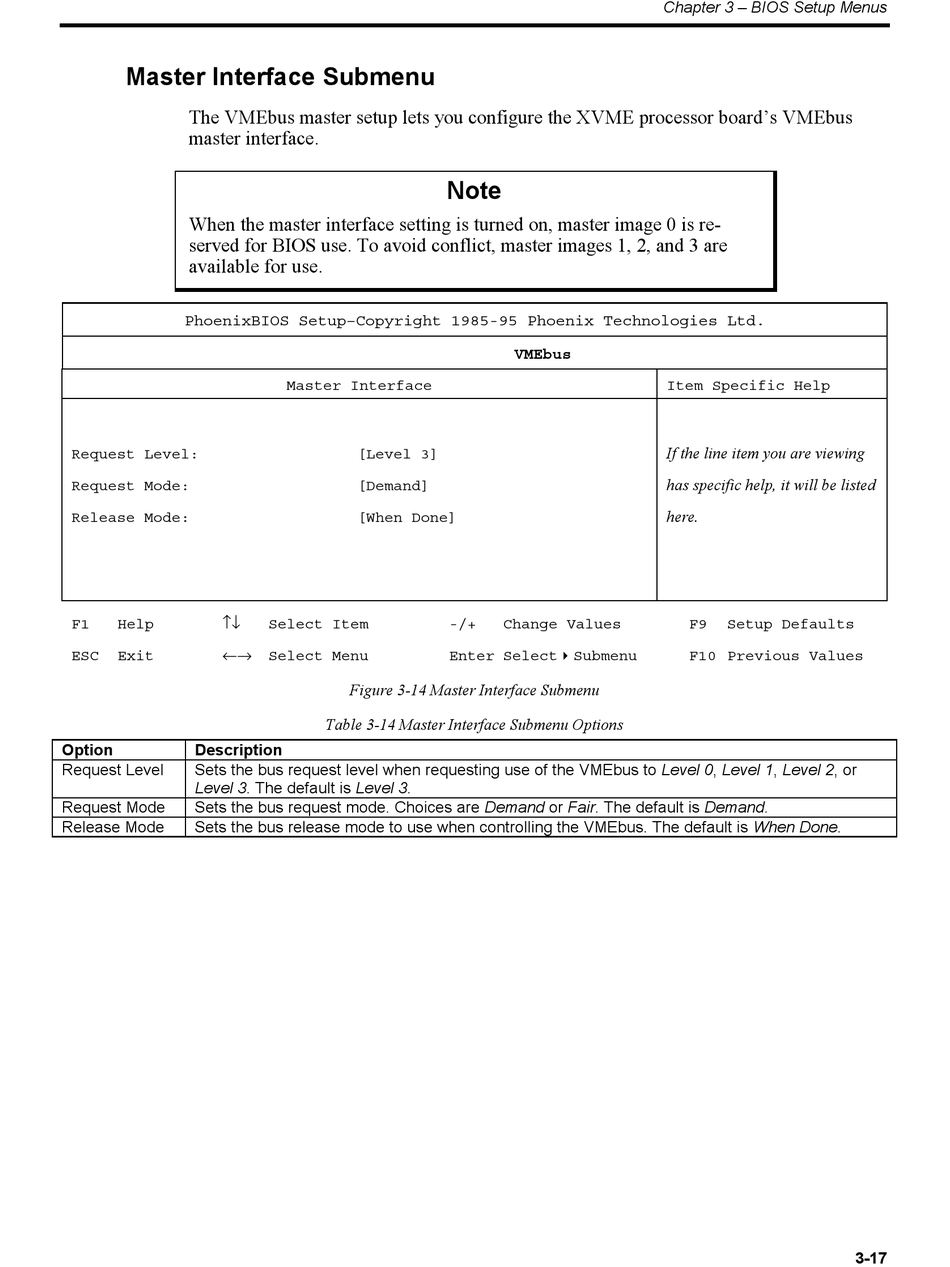

Figure 3-14 Master Interface Submenu
Table 3-14 Master Interface Submenu Options
VMEbus
-/+ Change Values
&
Enter Select Submenu
Chapter 3 – BIOS Setup Menus
Item Specific Help
If the line item you are viewing
has specific help, it will be listed
here.
