XVME-653/658 Manual

IDE Adapter 0 Master and Slave Submenus

The IDE Adapter 0 Master and Slave submenus are used to configure IDE hard drive in-
formation. If only one drive is attached to the IDE adapter, then only the parameters in
the Master Submenu need to be entered. If two drives are connected, both Master and
Slave Submenu parameters will need to be entered. The Master and Slave Submenus
contain the same information.
PhoenixBIOS Setup–Copyright 1985-95 Phoenix Technologies Ltd.
Main
IDE Adapter 0 Master (C: 850 Mb)
Autotype Fixed Disk:
Type:
Cylinders:
Heads:
Sectors/Track:
Write Precomp:
Multi-Sector Transfers:
LBA Mode Control:
32 Bit I/O:
Transfer Mode:
↑↓
F1 Help
←→ Select Menu
ESC Exit
3-4
[Press Enter]
[User] 850 Mb
[1647]
[ 16]
[ 63]
[None]
[8 Sectors]
[Enabled]
[Disabled]
[Standard]
Select Item -/+
Enter Select & Submenu

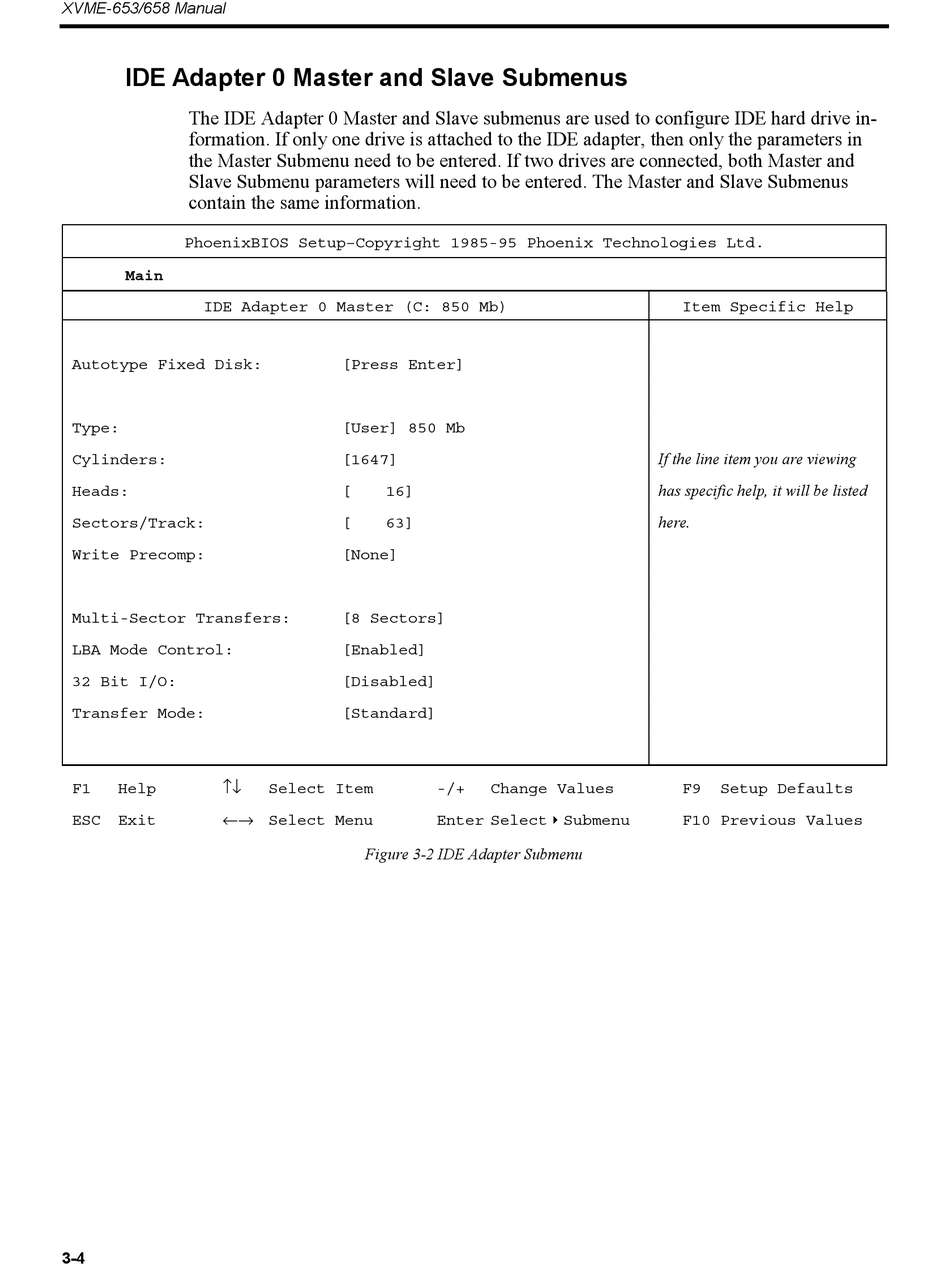

Figure 3-2 IDE Adapter Submenu
If the line item you are viewing
has specific help, it will be listed
here.
Change Values
Item Specific Help
F9 Setup Defaults
F10 Previous Values
