XVME-653/658 Manual

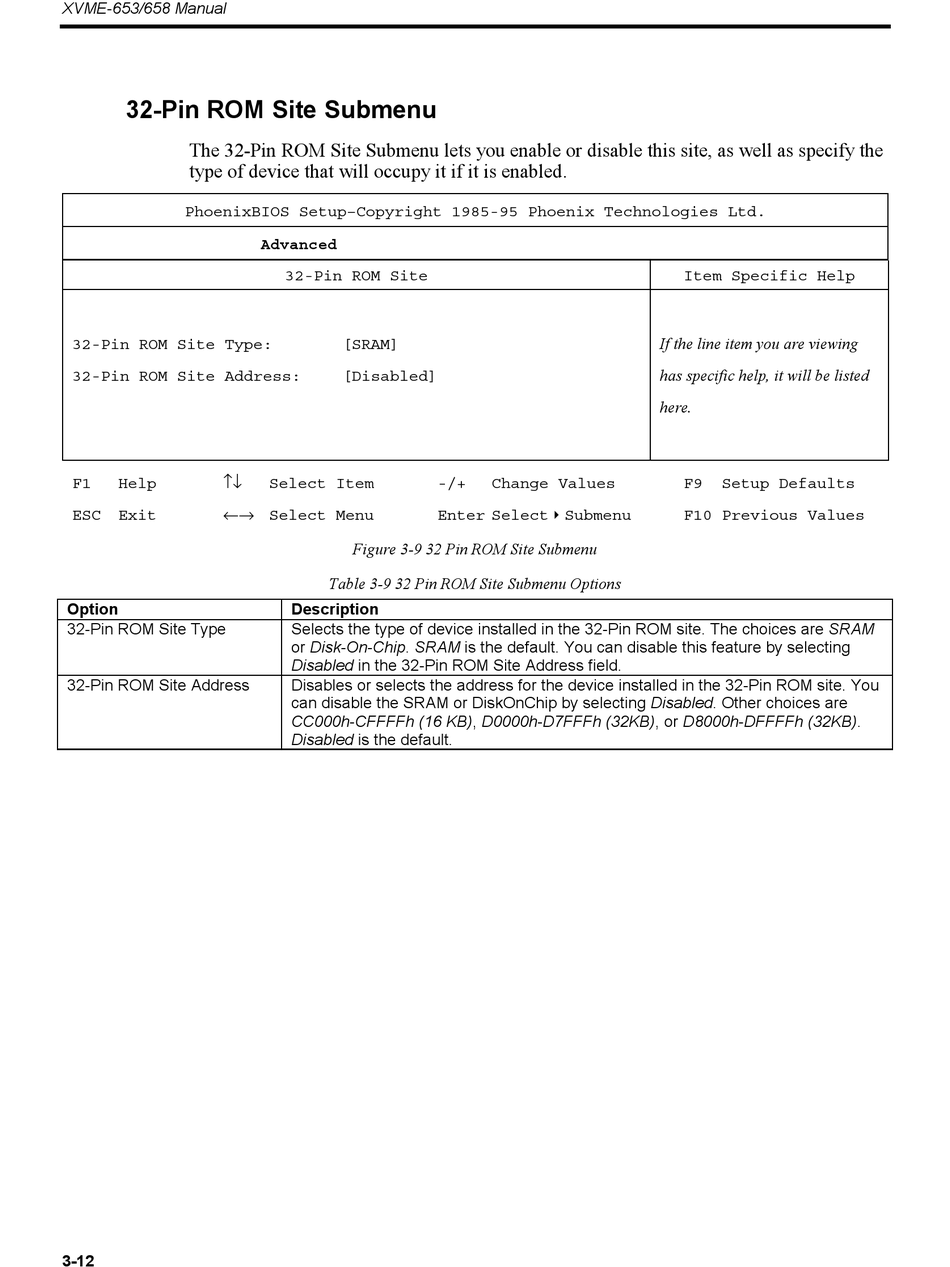

32-Pin ROM Site Submenu

The 32-Pin ROM Site Submenu lets you enable or disable this site, as well as specify the
type of device that will occupy it if it is enabled.
PhoenixBIOS Setup–Copyright 1985-95 Phoenix Technologies Ltd.
32-Pin ROM Site Type:
32-Pin ROM Site Address:
↑↓
F1 Help
←→ Select Menu
ESC Exit
Option
32-Pin ROM Site Type
32-Pin ROM Site Address
3-12
Advanced
32-Pin ROM Site
[SRAM]
[Disabled]
Select Item -/+
Enter Select & Submenu
Figure 3-9 32 Pin ROM Site Submenu
Table 3-9 32 Pin ROM Site Submenu Options
Description
Selects the type of device installed in the 32-Pin ROM site. The choices are SRAM
or Disk-On-Chip. SRAM is the default. You can disable this feature by selecting
Disabled in the 32-Pin ROM Site Address field.
Disables or selects the address for the device installed in the 32-Pin ROM site. You
can disable the SRAM or DiskOnChip by selecting Disabled. Other choices are
CC000h-CFFFFh (16 KB), D0000h-D7FFFh (32KB), or D8000h-DFFFFh (32KB).
Disabled is the default.
If the line item you are viewing
has specific help, it will be listed
here.
Change Values
Item Specific Help
F9 Setup Defaults
F10 Previous Values
