Integrated Peripherals Submenu

The Integrated Peripherals Submenu is used to configure the COM ports and the parallel
ports, and enable/disable the diskette, enhanced IDE controllers, and onboard BIOS.
PhoenixBIOS Setup–Copyright 1985-95 Phoenix Technologies Ltd.
UART1 port:
UART2 port:
UART3 port:
UART4 port:
Parallel Port:
Parallel Port Mode:
Diskette controller:
Local Bus IDE adapter:
Integrated IDE adapter:
On-board Expansion BIOS
& 32-Pin ROM Site
↑↓
F1 Help
←→ Select Menu
ESC Exit
Option
UART1-4 Port
Parallel Port
Parallel Mode
Diskette Controller
Local Bus IDE Adapter
Integrated IDE Adapter
Onboard Expansion BIOS
Advanced
Integrated Peripherals
[3F8, IRQ4]
[2F8, IRQ3]
[3E8, None]
[2E8, None]
[378, IRQ7]
[Bi-directional]
[Enabled]
[Primary]
[Disabled]
[Disabled]
Select Item

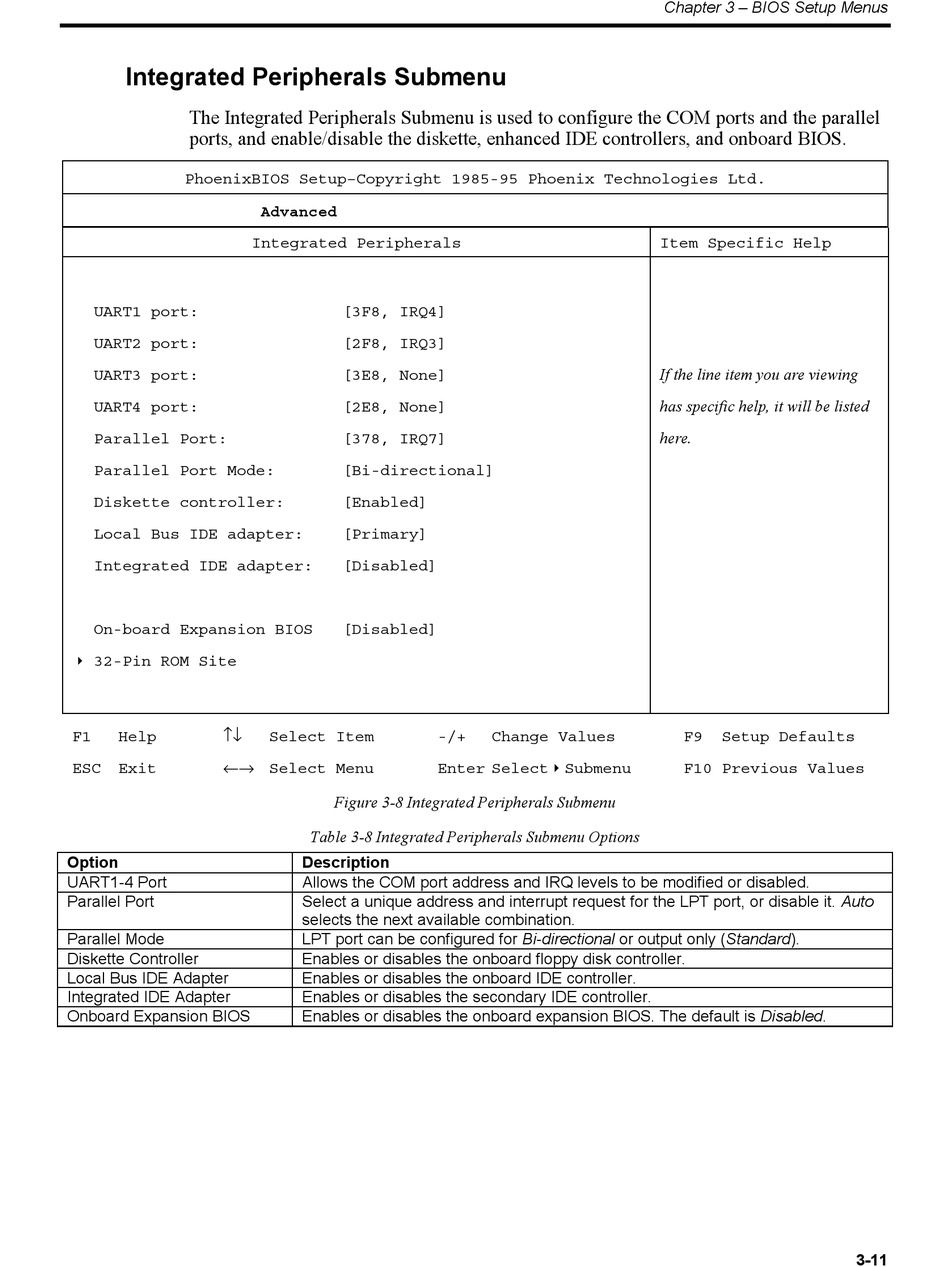

Figure 3-8 Integrated Peripherals Submenu
Table 3-8 Integrated Peripherals Submenu Options
Description
Allows the COM port address and IRQ levels to be modified or disabled.
Select a unique address and interrupt request for the LPT port, or disable it. Auto
selects the next available combination.
LPT port can be configured for Bi-directional or output only (Standard).
Enables or disables the onboard floppy disk controller.
Enables or disables the onboard IDE controller.
Enables or disables the secondary IDE controller.
Enables or disables the onboard expansion BIOS. The default is Disabled.
-/+ Change Values
Enter Select & Submenu
