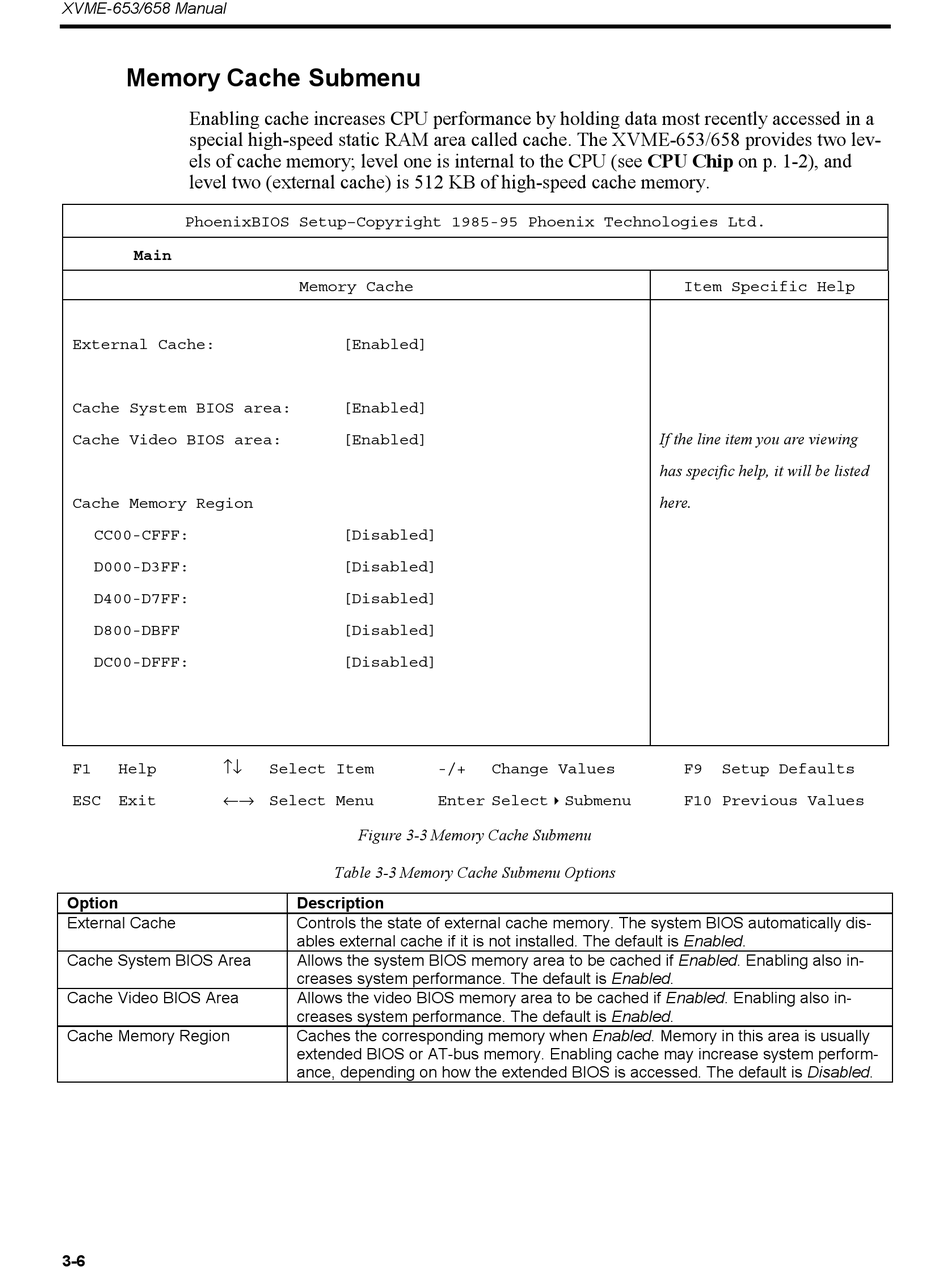

Memory Cache Submenu

Enabling cache increases CPU performance by holding data most recently accessed in a
special high-speed static RAM area called cache. The XVME-653/658 provides two lev-
els of cache memory; level one is internal to the CPU (see CPU Chip on p. 1-2), and
level two (external cache) is 512 KB of high-speed cache memory.
PhoenixBIOS Setup–Copyright 1985-95 Phoenix Technologies Ltd.
Main
External Cache:
Cache System BIOS area:
Cache Video BIOS area:
Cache Memory Region
CC00-CFFF:
D000-D3FF:
D400-D7FF:
D800-DBFF
DC00-DFFF:
↑↓
F1 Help
←→ Select Menu
ESC Exit
Option
External Cache
Cache System BIOS Area
Cache Video BIOS Area
Cache Memory Region
3-6
Memory Cache
[Enabled]
[Enabled]
[Enabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
Select Item -/+
Enter Select & Submenu
Figure 3-3 Memory Cache Submenu
Table 3-3 Memory Cache Submenu Options
Description
Controls the state of external cache memory. The system BIOS automatically dis-
ables external cache if it is not installed. The default is Enabled.
Allows the system BIOS memory area to be cached if Enabled. Enabling also in-
creases system performance. The default is Enabled.
Allows the video BIOS memory area to be cached if Enabled. Enabling also in-
creases system performance. The default is Enabled.
Caches the corresponding memory when Enabled. Memory in this area is usually
extended BIOS or AT-bus memory. Enabling cache may increase system perform-
ance, depending on how the extended BIOS is accessed. The default is Disabled.
If the line item you are viewing
has specific help, it will be listed
here.
Change Values
Item Specific Help
F9 Setup Defaults
F10 Previous Values
