XVME-653/658 Manual

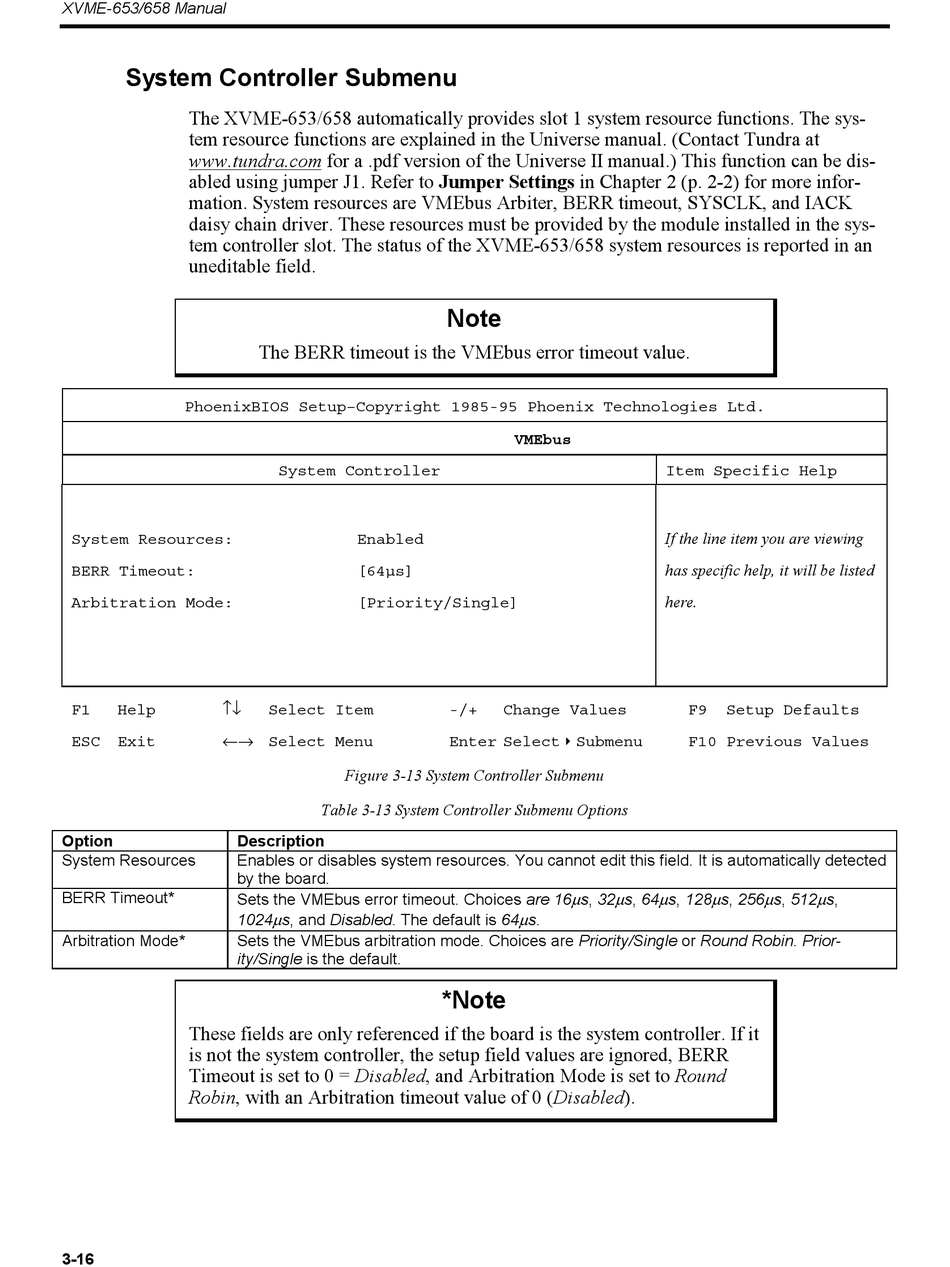

System Controller Submenu

The XVME-653/658 automatically provides slot 1 system resource functions. The sys-
tem resource functions are explained in the Universe manual. (Contact Tundra at
www.tundra.com for a .pdf version of the Universe II manual.) This function can be dis-
abled using jumper J1. Refer to Jumper Settings in Chapter 2 (p. 2-2) for more infor-
mation. System resources are VMEbus Arbiter, BERR timeout, SYSCLK, and IACK
daisy chain driver. These resources must be provided by the module installed in the sys-
tem controller slot. The status of the XVME-653/658 system resources is reported in an
uneditable field.
PhoenixBIOS Setup–Copyright 1985-95 Phoenix Technologies Ltd.
System Resources:
BERR Timeout:
Arbitration Mode:
↑↓
F1 Help
←→ Select Menu
ESC Exit
Option Description
System Resources Enables or disables system resources. You cannot edit this field. It is automatically detected
by the board.
Sets the VMEbus error timeout. Choices are 16 µ s, 32 µ s, 64 µ s, 128 µ s, 256 µ s, 512 µ s,
BERR Timeout*
1024 µ s, and Disabled. The default is 64 µ s.
Arbitration Mode* Sets the VMEbus arbitration mode. Choices are Priority/Single or Round Robin. Prior-
ity/Single is the default.
These fields are only referenced if the board is the system controller. If it
is not the system controller, the setup field values are ignored, BERR
Timeout is set to 0 = Disabled, and Arbitration Mode is set to Round
Robin, with an Arbitration timeout value of 0 (Disabled).
3-16
The BERR timeout is the VMEbus error timeout value.
System Controller
Enabled
[64µs]
[Priority/Single]
Select Item
Figure 3-13 System Controller Submenu
Table 3-13 System Controller Submenu Options
Note
VMEbus
-/+ Change Values
Enter Select & Submenu
*Note
Item Specific Help
If the line item you are viewing
has specific help, it will be listed
here.
F9 Setup Defaults
F10 Previous Values
