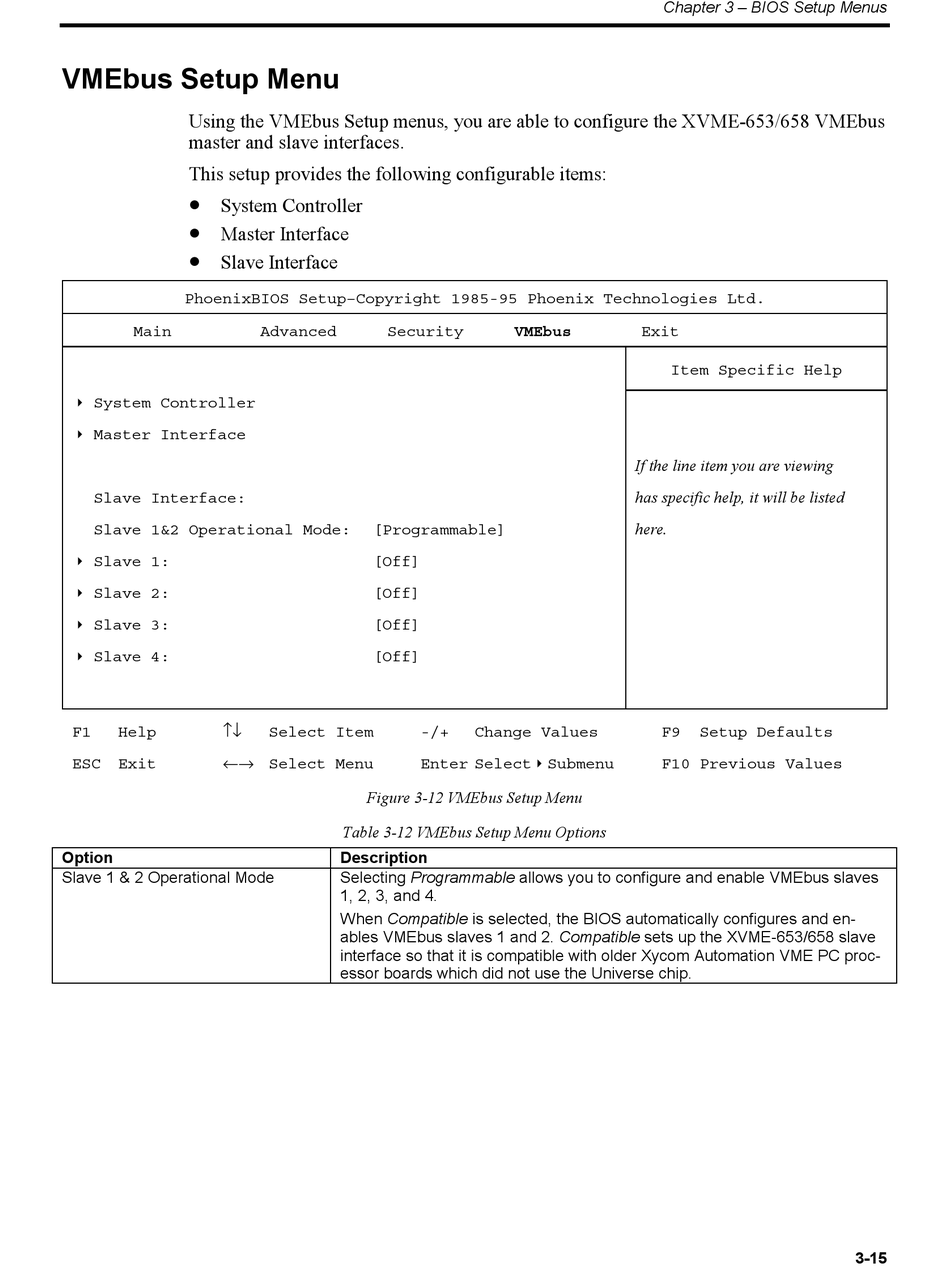

VMEbus Setup Menu

Using the VMEbus Setup menus, you are able to configure the XVME-653/658 VMEbus
master and slave interfaces.
This setup provides the following configurable items:
•
System Controller
•
Master Interface
•
Slave Interface
PhoenixBIOS Setup–Copyright 1985-95 Phoenix Technologies Ltd.
Main
& System Controller
& Master Interface
Slave Interface:
Slave 1&2 Operational Mode:
& Slave 1:
& Slave 2:
& Slave 3:
& Slave 4:
↑↓
F1 Help
←→ Select Menu
ESC Exit
Option
Slave 1 & 2 Operational Mode
Advanced Security
[Programmable]
[Off]
[Off]
[Off]
[Off]
Select Item -/+
Enter Select & Submenu
Figure 3-12 VMEbus Setup Menu
Table 3-12 VMEbus Setup Menu Options
Description
Selecting Programmable allows you to configure and enable VMEbus slaves
1, 2, 3, and 4.
When Compatible is selected, the BIOS automatically configures and en-
ables VMEbus slaves 1 and 2. Compatible sets up the XVME-653/658 slave
interface so that it is compatible with older Xycom Automation VME PC proc-
essor boards which did not use the Universe chip.
VMEbus Exit
If the line item you are viewing
has specific help, it will be listed
here.
Change Values
Chapter 3 – BIOS Setup Menus
Item Specific Help
F9 Setup Defaults
F10 Previous Values
3-15
