Mounting with a wall box
1
Install BB 700M (optional).
3
Add the mounting plate. Align with
the wall box and mark holes for screws.
Secure the mounting plate
to the wall with screws (4).
Back View

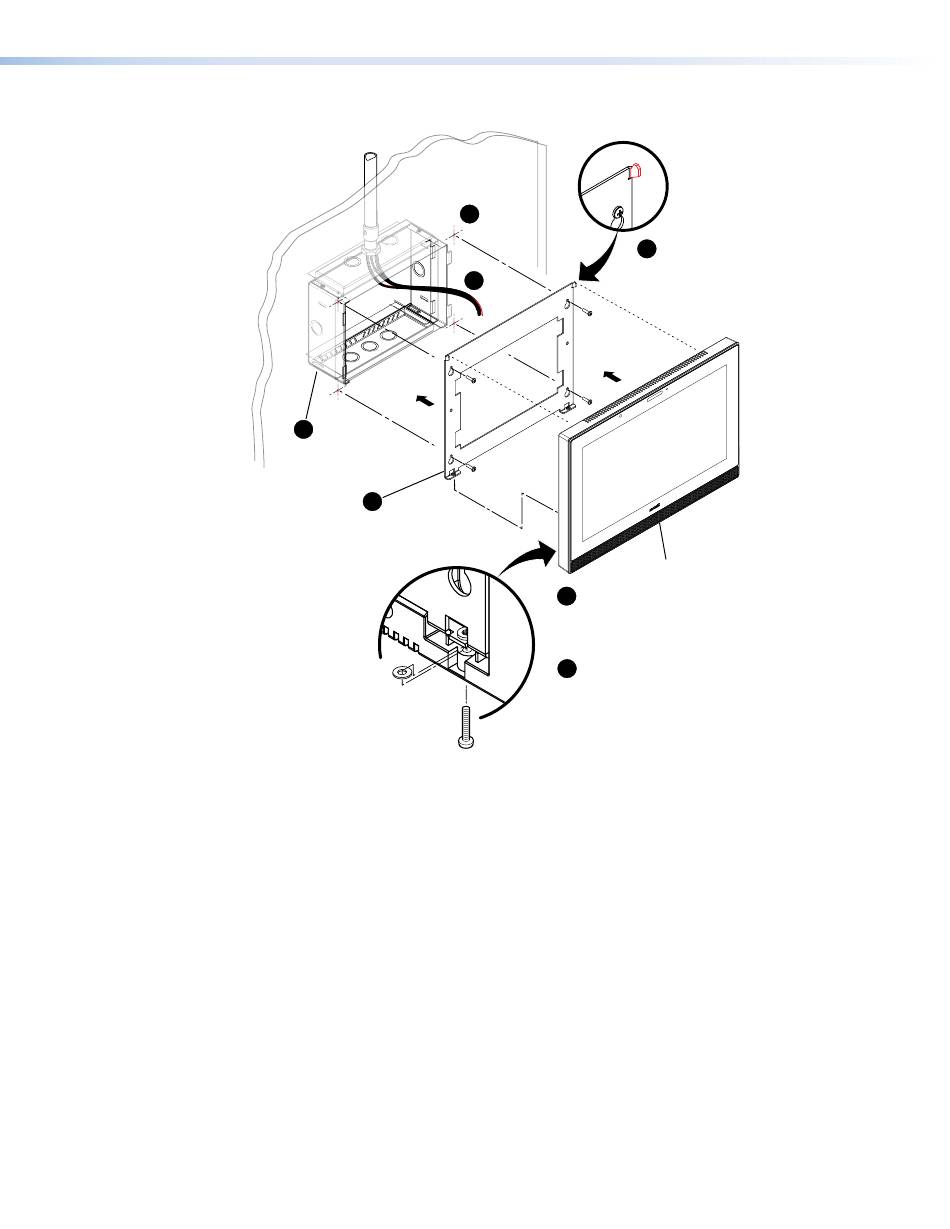

Figure 27. Wall Mounting the TLP Pro 1525MG with the BB 700M
The TLP Pro 1225MG, 1525MG, or 1725MG can be mounted using the BB 700M wall box.
1. Cut a hole in the drywall, 9.55 inches (24.26 cm) wide x 6.55 inches (16.64 cm) high, and
install the BB 700M back box (must be purchased separately), as described in the BB 700M
Installation Guide (see www.extron.com).
2.
Place the metal mounting plate against the wall, mark the four mounting holes, and drill four
pilot holes.
3.
Secure the mounting plate with four #10 screws.
4.
Run and connect cables to the rear of the touchpanel (see
Series Rear Panel Features
5.
Insert the two provided Phillips pan head #6-32 x ¾ inch length screws with washers in the
mounting screw slot (see
6.
Hold the touchpanel at a slight angle and lower the notches at the top of the rear panel (see
figure 4) over the hooks of the mounting plate.
7. Swing the bottom of the touchpanel inwards so that it lies flat against the mounting plate
with the tongue at the bottom of the mounting plate sitting in a groove in the bottom of the
touchpanel.
8.
Secure the touchpanel to the mounting plate with the mounting screws.
2
Hold the touchpanel at a slight angle.
Mount the touchpanel over the two
4
hooks on the mounting plate.
5
Place the provided mounting screws (2)
with washers in the mounting screw slot
in the touchpanel.
8
Secure the touchpanel by tightening the
mounting screws against the base of the
mounting plate.
on page 8).
figure 4 on page 8).
TLP Pro 1225, 1525, and 1725 Series • Mounting
6
TLP Pro 1525MG
TLP Pro 1225, 1525, and 1725
