ACP VC1 D • Setup Guide
The Extron ACP VC1 D Audio Control Panel is a fully configurable control interface for use with any Extron ACP-enabled device.
Each ACP VC1 D includes two ACP ports, which support power and communication between the host device and the
ACP VC1 D. Up to eight ACP panels can be used per host device for more demanding control needs.
Planning System Installation
When planning an ACP system installation, consider how many ACP panels to use, maximum cable distance, and mounting (see
the ACP VC1 D product page at
VOLUME
VOLUME
A A
B B
MUTE
MUTE
Figure 1.
ACP VC1 D

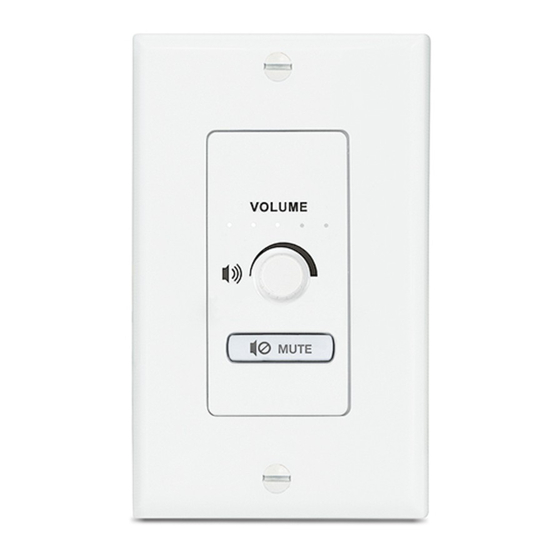

Front Panel Rotary Volume Knob
A
Front Panel Mute Button
B
ACP Ports (2)
C
Installation
Step 1: Get Ready
Use the following checklist to prepare for installation:
…
Download and install the latest software, firmware, and device drivers needed to configure the host device and the
connected ACP devices (see the host device user guide, available at www.extron.com, for details regarding software and
drivers).
…
Obtain cables, mounting hardware, and any other supplies required for the installation.
www.extron.com
for more information regarding the ACP VC1 D).
C C
Connection Status LED
D
Reset Button
E
Bus ID DIP Switches
F
E E
F F
1
