TLP Pro 1225MG and TLP Pro 1525MG • Setup Guide
Overview

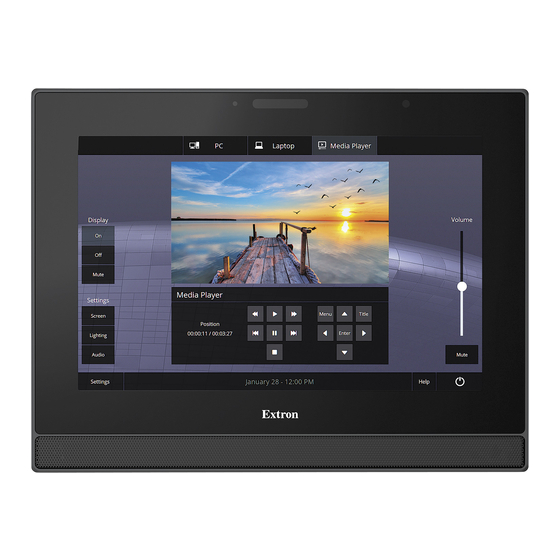

The Extron TLP Pro 1225MG and TLP Pro 1525MG are wall-mounted touchpanels with capacitive, edge-to-edge glass
touchscreens. The TLP Pro 1225MG has a 12.1 inch screen with a 1280x800 resolution. The TLP Pro 1525MG has a 15.6 inch
screen with a 1366x768 resolution. Both touchpanels are ideal for any AV applications requiring large touchpanels with flexible
mounting options and fully customizable interfaces. This guide provides instructions for experienced installers to mount and install
these touchpanels. For more complete details, see the TLP Pro 1225 and TLP Pro 1525 Series User Guide at
Setup Checklist
Get Ready
… Download and install the latest version of the following software:
… GUI Designer — for designing layouts for Extron TouchLink
Global Configurator
…
and touchpanel
… Toolbelt — provides device discovery, device information, firmware updates, configuration of network settings, system
utilities, and user management for TouchLink Pro devices
… Global Scripter
NOTE: All four software programs are available from
…
Obtain the following network information from your network administrator:
… DHCP status (on or off). If DHCP is off, you also require:
… IP address
Username — This can be either admin or user.
…
… Passwords — The factory configured passwords for all accounts on this device have been set to the device serial number.
Passwords can be changed during configuration. Passwords are case sensitive.
NOTE: If the device is reset to default settings, the passwords are reset to the default password, which is extron (for
either admin or user).
… Make a note of the touchpanel MAC address.
Mount and Cable All Devices
ATTENTION:
Do not power on the touchpanels until you have read the Attention in the "Power Supply" section of the TLP Pro 1225
•
and TLP Pro 1525 Series User Guide.
Ne branchez pas les écrans tactiles avant d'avoir lu la mise en garde dans la section « sources d'alimentation » du
•
TLP Pro 1225 and TLP Pro 1525 Series User Guide.
… Mount the units. There are several mounting options for TouchLink Pro touchpanels (see
… Connect the touchpanel to a Power over Ethernet (PoE) injector (not provided). Extron recommends the PI 140 power injector,
which must be purchased separately (see
… Connect the power injector to the LAN and power it on.
… An Extron IP Link ® Pro control processor must be connected to the same Ethernet subnetwork as the touchpanel.
Set up the Touchpanels for Network Communication
… Connect the PC that you will use for setup, the control processor, and touchpanel to the same Ethernet subnetwork.
Setup Menu
… Use the
address, subnet mask, gateway, and related settings for the touchpanel.
Configure the Touchpanels
… Create a graphical user interface with GUI Designer (see GUI Designer Help File for step-by-step instructions).
… Associate functions with the graphical user interface features by configuring (see the Global Configurator Help File) or
programming (see the Global Scripter Help File) the system. Global Scripter provides an Extron-exclusive Python library
(ControlScript ) and Global Scripter modules to get you started.
®
Professional or Global Configurator Plus — for setting up and configuring the control processor
®
— provides an integrated development environment for Extron control systems programming.
®
… Subnet mask
Rear Panel Features
(see page 5) or Toolbelt (see Toolbelt Help File) to set the DHCP status and, if necessary, the IP
Pro touchpanels and third party touch interfaces
®
www.extron.com
.
… Gateway
on page 4).
www.extron.com
Mounting
on page 2).
.
