TLP Pro 1225TG, 1525TG, and 1725TG • Setup Guide
Overview

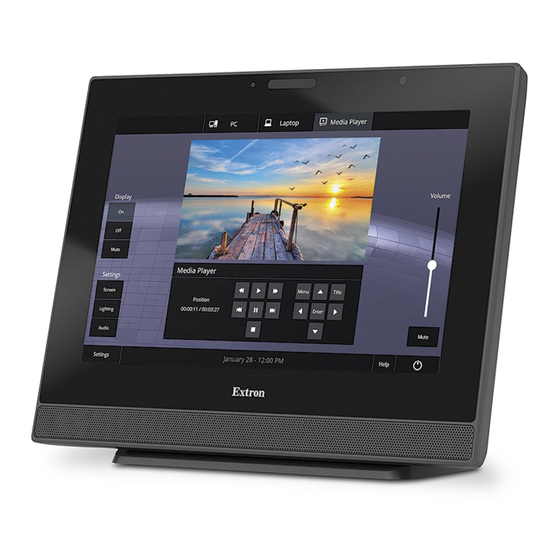

The Extron TLP Pro 1225TG, TLP Pro 1525TG, and TLP Pro 1725TG are table-top touchpanels with high resolution capacitive,
®
edge-to-edge glass touchscreens. The TLP Pro 1225TG has a 12.1 inch screen with a 1280x800 resolution. The TLP Pro 1525TG
has a 15.6 inch screen with a 1366x768 resolution. The TLP Pro 1725TG has a 17.3 inch screen with a 1920x1080 resolution. All
three touchpanels are ideal for any AV applications requiring large touchpanels with flexible mounting options and fully customizable
interfaces. This guide provides instructions for experienced installers to mount and install these touchpanels. For more complete
details, see the TLP Pro 1225, 1525, and 1725 Series User Guide at www.extron.com.
Setup Overview and Checklist
Get Ready
… Download and install the latest version of the following software:
GUI Designer — For designing layouts for Extron TouchLink
z
Global Configurator
z
Global Scripter
z
Scripter provides an Extron-exclusive Python
Toolbelt — For device discovery, device information, firmware updates, and configuration of network settings, system
z
utilities, and user management for TouchLink Pro devices.
NOTE: All four software programs are available from
… Obtain the following network information from your network administrator:
… DHCP status (on or off). If DHCP is off, you also require:
IP address
…
Username — This can be either admin or user.
…
… Passwords — The factory configured passwords for all accounts on this device have been set to the device serial number.
Passwords can be changed during configuration. Passwords are case sensitive.
NOTE:
If the device is reset to default settings, the passwords are reset to the default password, which is extron (for
admin
either
… Make a note of the touchpanel MAC address from the label on the back of the device.
Mount and Cable All Devices
ATTENTION:
Do not power on the touchpanels until you have read the Attention in the Power Supply section of the
•
TLP Pro 1225, 1525, and 1725 Series User Guide.
Ne branchez pas les écrans tactiles avant d'avoir lu la mise en garde dans la section « sources d'alimentation » du
•
TLP Pro 1225, 1525, and 1725 Series User Guide.
… Mount the units. There are several mounting options for TouchLink Pro touchpanels (see
… Connect cables to the touchpanels (see
… Connect the touchpanel to a power source. These models can be powered by PoE or by a 12VDC power supply.
The TLP Pro 1725TG ships with the PI 140 power injector. A power injector or 12 VDC power supply must be purchased
separately for the 12-inch and 15-inch models.
… An Extron IP Link control processor must be connected to the same Ethernet subnetwork as the touchpanel.
®
Set up the Touchpanels for Network Communication
Connect the PC that you will use for setup, the control processor, and touchpanel to the same Ethernet subnetwork.
…
Setup Menu
… Use the
gateway, and related settings for the touchpanel.
Configure the Touchpanels
… Create a graphical user interface with GUI Designer (see GUI Designer Help File for step-by-step instructions).
… Associate functions with the graphical user interface features with Global Configurator or Global Scripter.
Plus and Professional — For setting up and configuring the control processor and touchpanel
®
— Provides an integrated development environment for Extron control systems programming. Global
®
™
Subnet mask
…
user
or ).
Rear Panel Features
(see page 6) or Toolbelt to set the DHCP status and, if necessary, the IP address, subnet mask,
Pro touchpanels and third party touch interfaces
®
library (ControlScript ) and Global Scripter modules to get you started.
®
www.extron.com
.
Gateway
…
on page 4).
Mounting
on page 2).
