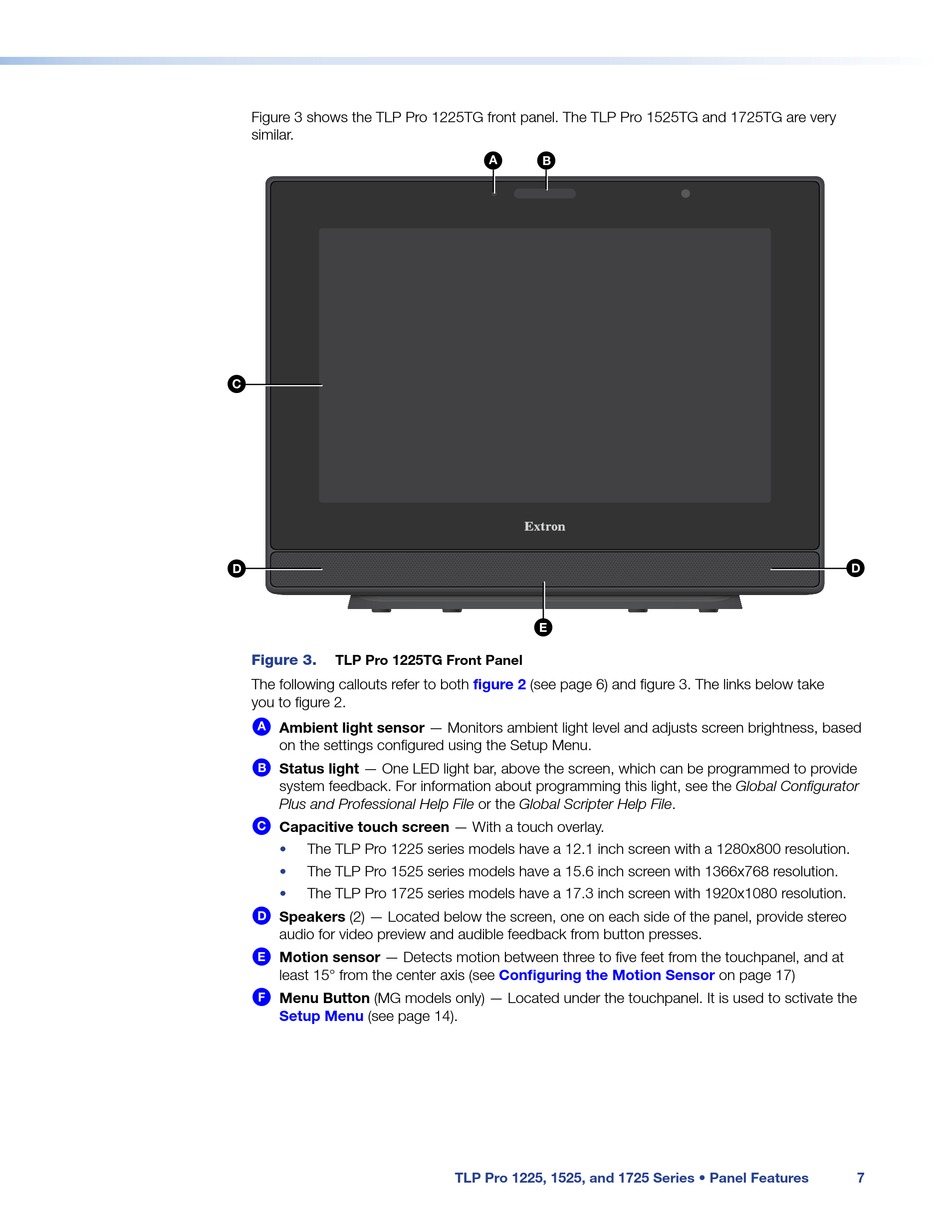

Figure 3 shows the TLP Pro 1225TG front panel. The TLP Pro 1525TG and 1725TG are very
similar.
C
D
Figure 3. TLP Pro 1225TG Front Panel
The following callouts refer to both
you to figure 2.
A Ambient light sensor — Monitors ambient light level and adjusts screen brightness, based
on the settings configured using the Setup Menu.
B
Status light — One LED light bar, above the screen, which can be programmed to provide
system feedback. For information about programming this light, see the Global Configurator
Plus and Professional Help File or the Global Scripter Help File.
C
Capacitive touch screen — With a touch overlay.
The TLP Pro 1225 series models have a 12.1 inch screen with a 1280x800 resolution.
•
The TLP Pro 1525 series models have a 15.6 inch screen with 1366x768 resolution.
•
The TLP Pro 1725 series models have a 17.3 inch screen with 1920x1080 resolution.
•
D
Speakers (2) — Located below the screen, one on each side of the panel, provide stereo
audio for video preview and audible feedback from button presses.
E
Motion sensor — Detects motion between three to five feet from the touchpanel, and at
least 15° from the center axis (see
F
Menu Button (MG models only) — Located under the touchpanel. It is used to sctivate the
Setup Menu
(see page 14).
A B
E
figure 2 (see page 6) and figure 3. The links below take
Configuring the Motion Sensor
TLP Pro 1225, 1525, and 1725 Series • Panel Features
D
on page 17)
