Outputs; Figure 19 Outputs Screen - Michell Instruments Optidew User Manual

3.2.3. Outputs

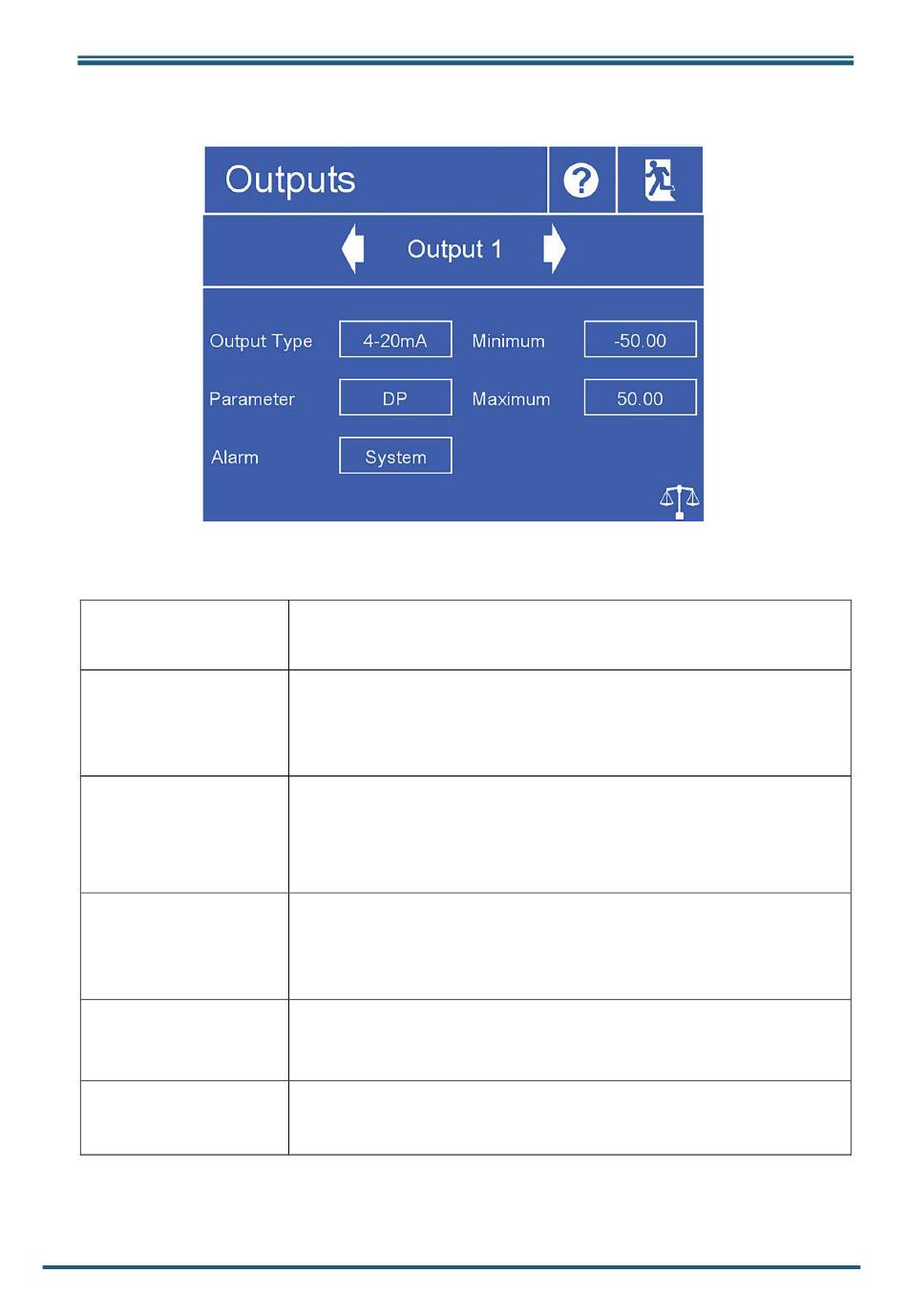

Figure 19 Outputs Screen

Output selector
arrows
Output Type
Parameter
Alarm
Minimum
Maximum
Michell Instruments
Selects the output to be adjusted
Determines the mA output range
Available input: 0-20mA, 4-20mA
Assigns the chosen calculated or measured parameter to this
output channel
Available input: DP, Temperature, Pressure, %RH, wvp, g/m
g/kg, ppm , Wet Bulb
V
If the selected alarm is tripped, then this output will be forced to
Namur alarm level (20.6mA).
Available input: None, System, Process, Both
The minimum output range for the selected parameter
Available input: Dependent on parameter
The maximum output range for the selected parameter
Available input: Dependent on parameter
