2.4. Electrical Connections

2.4.1. Electrical Supply

The Optidew accepts a power supply of the following specification:
Voltage
Frequency
Power Consumption
See Appendix A, Technical Specification, for full operating parameters.
Optidew 501
The wall mount is supplied with a connector wired to a 2m cable. Only use an appropriately rated
mains supply cord.
This power connector is wired as follows:
NOTE: The Optidew 501 is designed for continuous operation and therefore does not feature a
power on/off switch. As soon as power is applied, the display (or DCC button on the transmitter
version) will illuminate and the transmitter will initiate a DCC cycle.
Replacement power cables are available - contact your Michell representative.
Optidew 401
The Optidew 401 is supplied with a 2m IEC cable. The IEC socket is on the left hand side of the
instrument. There is an ON/OFF switch on the front panel. Only use an appropriately rated
detachable mains supply cord.
Michell Instruments
The instrument must be GROUNDED
100-240V AC
50 – 60Hz
30VA max

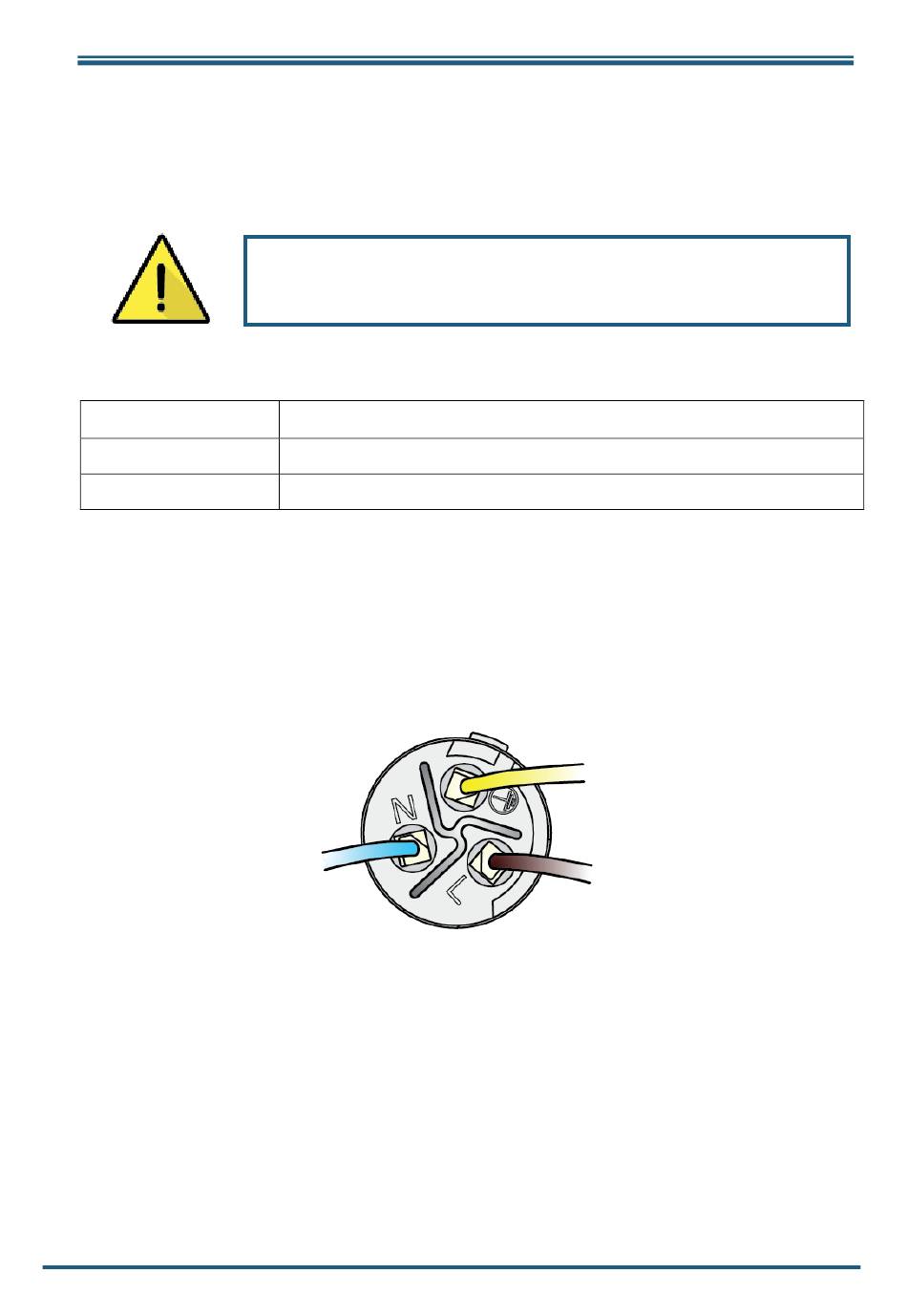

Figure 10 Power Connector

Optidew User's Manual
WARNING:
