1.4. Remote Temperature Probes

Two versions of temperature probe are available for the Optidew, a general purpose probe
rated to +90°C, and a laboratory/high temperature probe rated to +120°C.

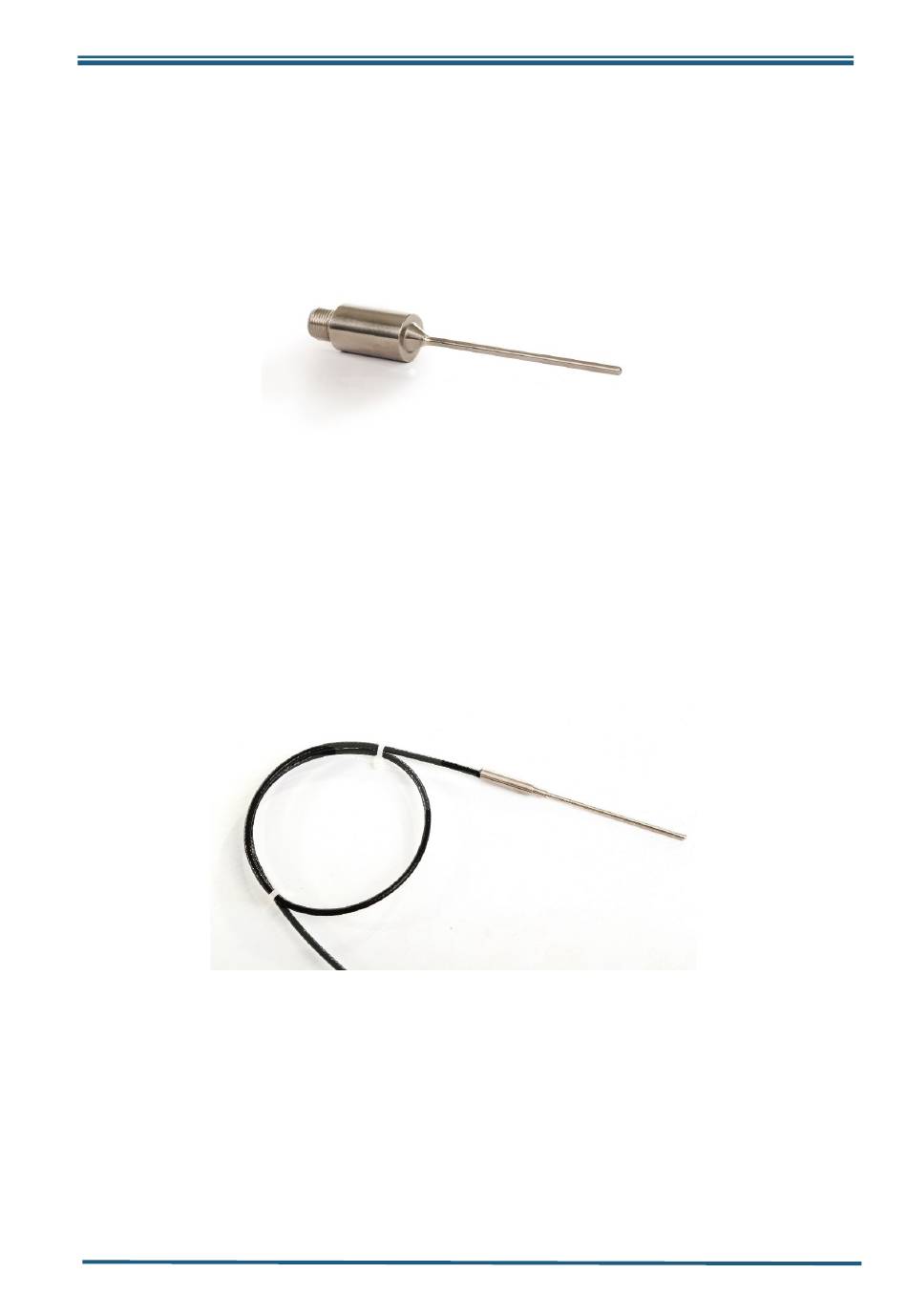

General Purpose Probe

Figure 3 General Purpose Probe

This 75mm probe is supplied when any of the 'standard' sensor cable options are selected. it is
intended to be installed in its' entirety into the environment to be measured.
An M12 plug is integrated into the probe itself to connect to the supplied cable.
Laboratory/High Temperature Probe

Figure 4 Labatory/High Temperature Probe

This 50mm probe is supplied when any of the high temperature cable options are selected,
however it is also designed specifically for compatibility with Michell Instruments or Rotronic
humidity calibration chambers.
The probe is fitted with a 0.5m flying lead with an M12 plug to simplify connection into a
calibration chamber. The chosen cable length option is still supplied.
