3.2.7. Inputs

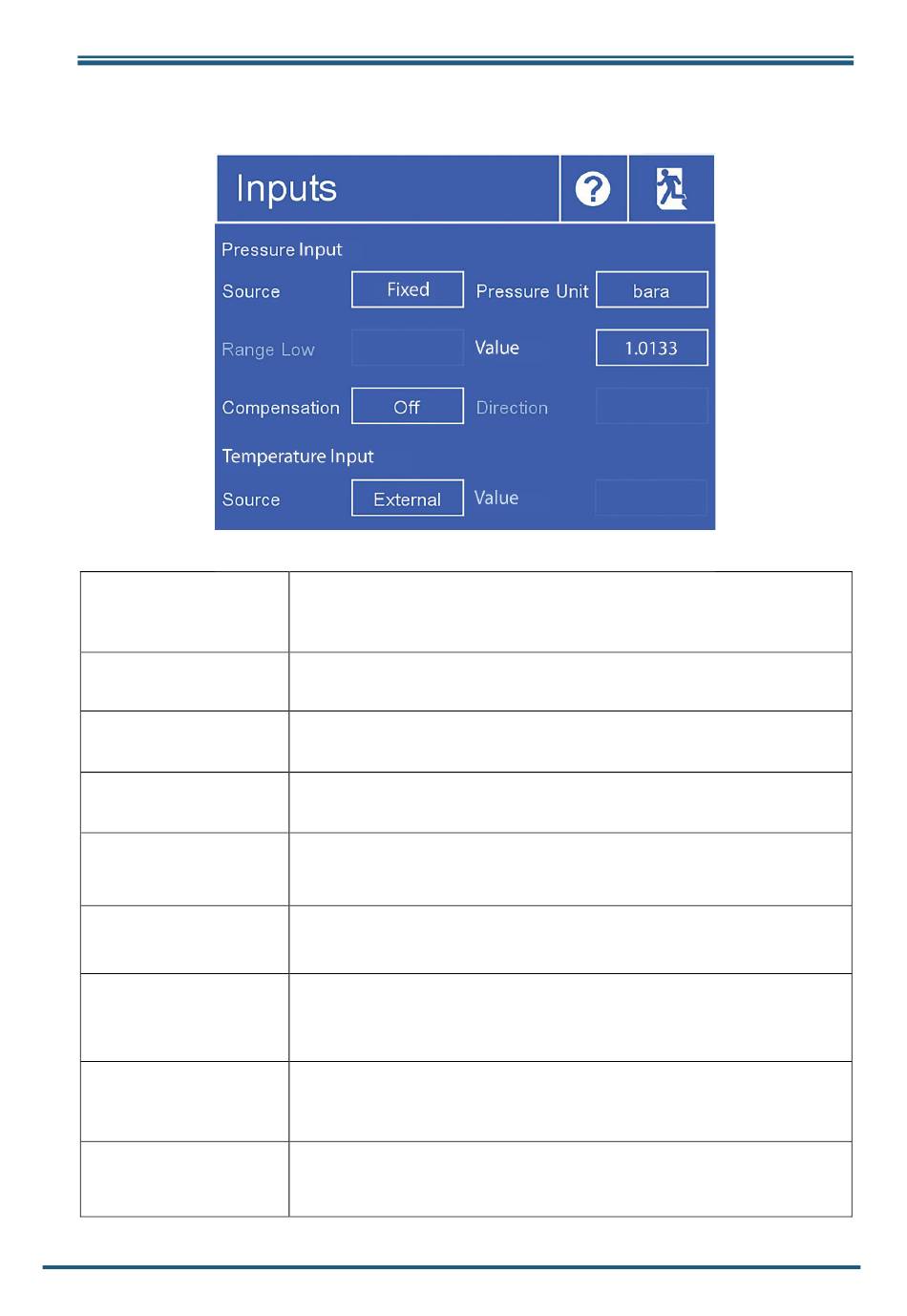

Figure 23 Inputs Screen

Source (Pressure
Input)
Pressure Unit
Value (If 'Fixed'
selected)
Range Low (If
'External' selected)
Range High (If
'External' selected)
Compensation
Direction (If
'Compensation' On)
Source
(Temperature
Input)
Value (If 'Fixed'
selected)
Michell Instruments
Changes between pressure input from external 4-20mA transmitter
or a fixed value
Available input: Fixed, External
Measurement unit for pressure inputs
Available input: kPa, psig, psia, barg, bara
Sets pressure used for internal calculations
Sets the low range of the connected pressure transmitter
Sets the high range of the connected pressure transmitter.
Recalculate dew point based on pressure input
Available input: Off, On
Select 'From Atmos' if dew-point sensor is at atmospheric pressure.
Select 'To Atmos' if dew-point sensor is at entered fixed pressure
or pressure measured by transducer.
Changes between temperature input from external PT100 or a
fixed value. Available input: Fixed, External
Sets temperature used for internal calculations
