Optidew User's Manual

2.3.2. Optidew 401

1

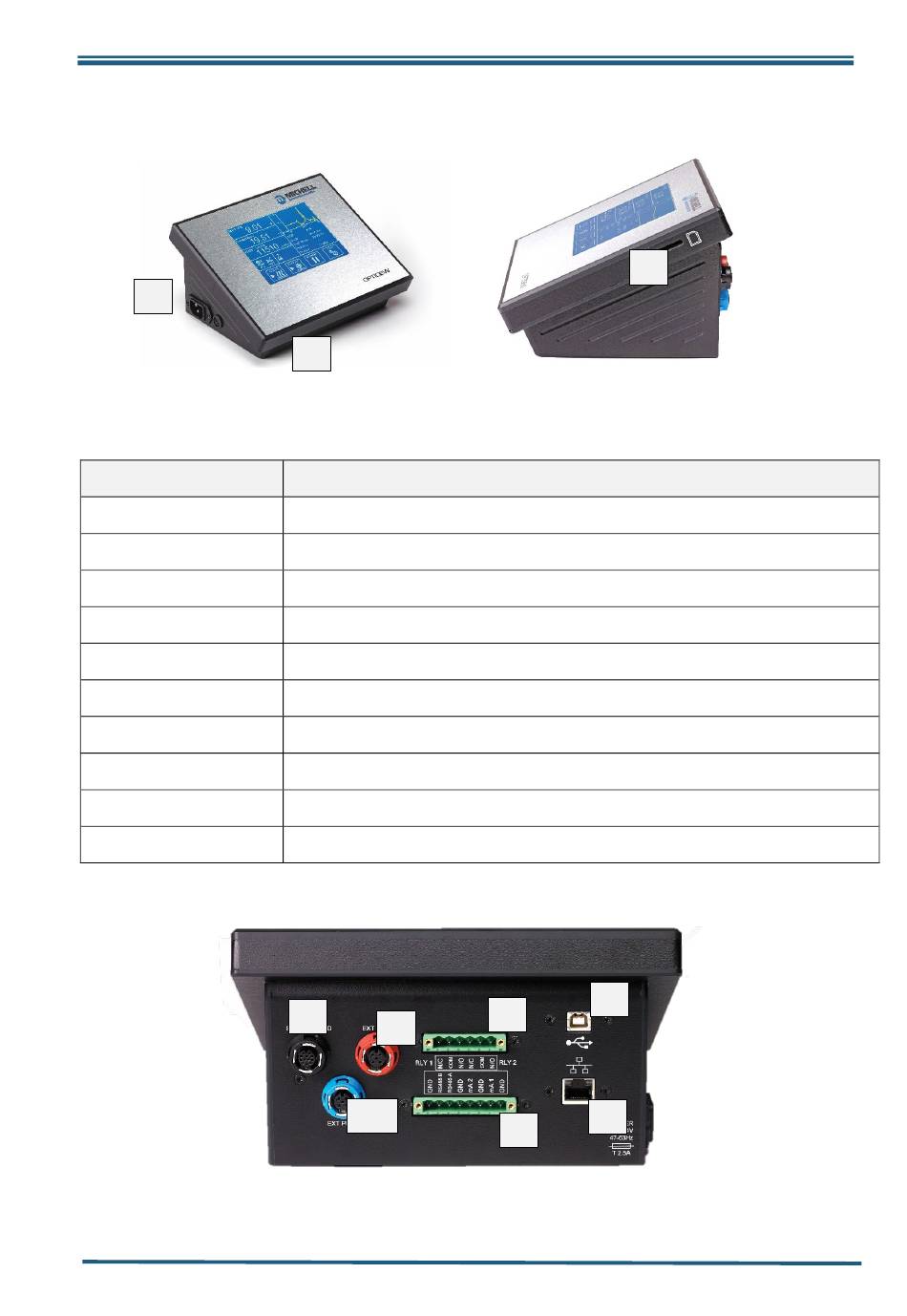

Figure 8 Optidew 401 front and side panels

Number
1
2
3
4
5
6
7
8
9
10

Figure 9 Optidew 401 rear panel

8
2
Description
Power Connector
Power Switch
SD card slot
Alarm contacts connector
RS485 and analog output connector
USB port
Ethernet port (optional)
Sensor Cable connector
Temperature probe cable connector
Pressure transmitter cable connector
8
9
10
3
6
4
7
5
97551 Issue 4.1, October 2019
