2.4.2.2. Current Outputs

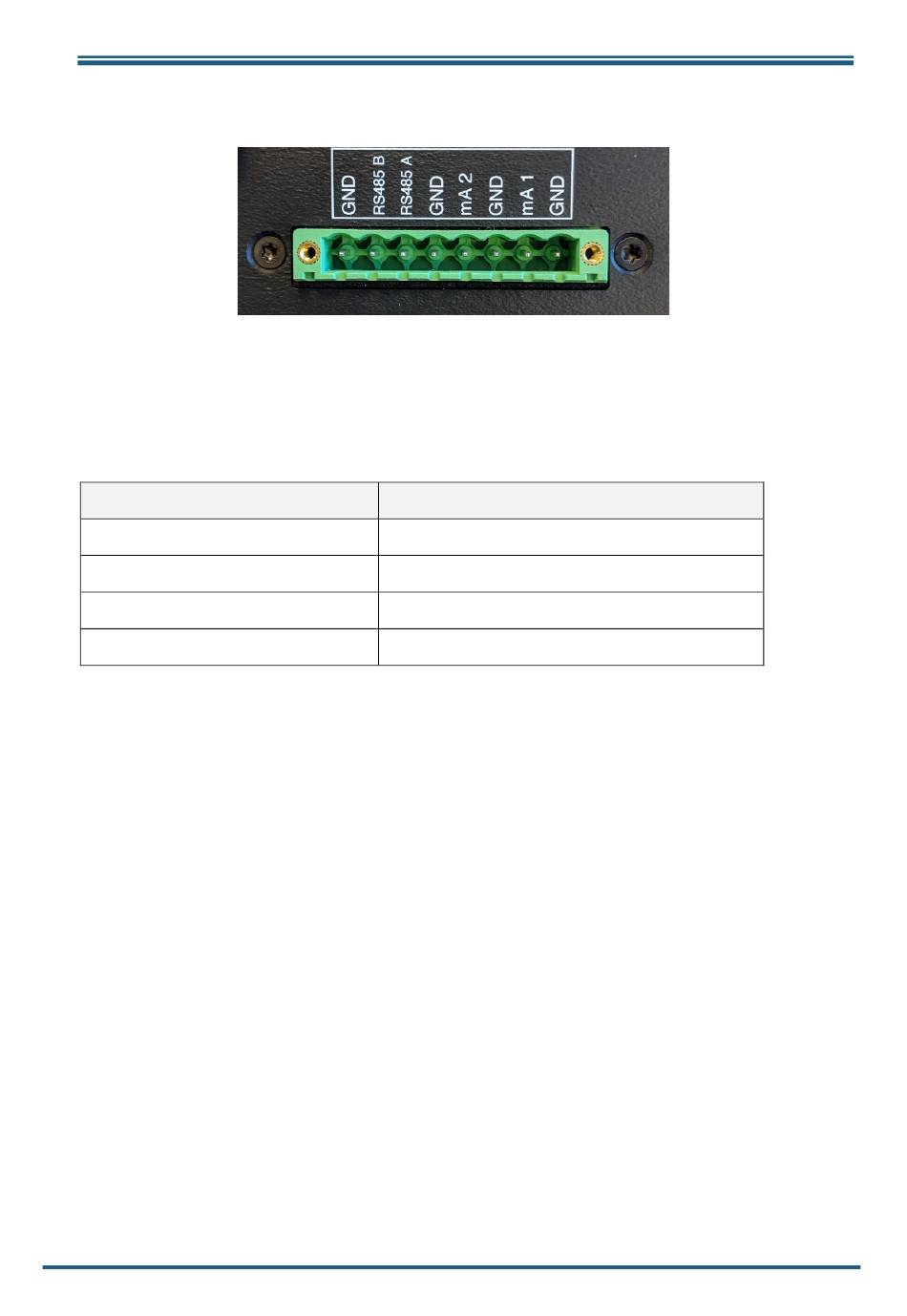

Figure 12 Analog output connector
Left to right, the last four pins on this connector are used for mA outputs.
See section 3.2 for information on configuring the analog outputs
Pin Label
mA2
GND
mA1
GND
Michell Instruments
Description
Channel 2 Current Output
Channel 2 Ground
Channel 1 Current Output
Channel 1 Ground
Optidew User's Manual
11
