3.1.2. Main Screen

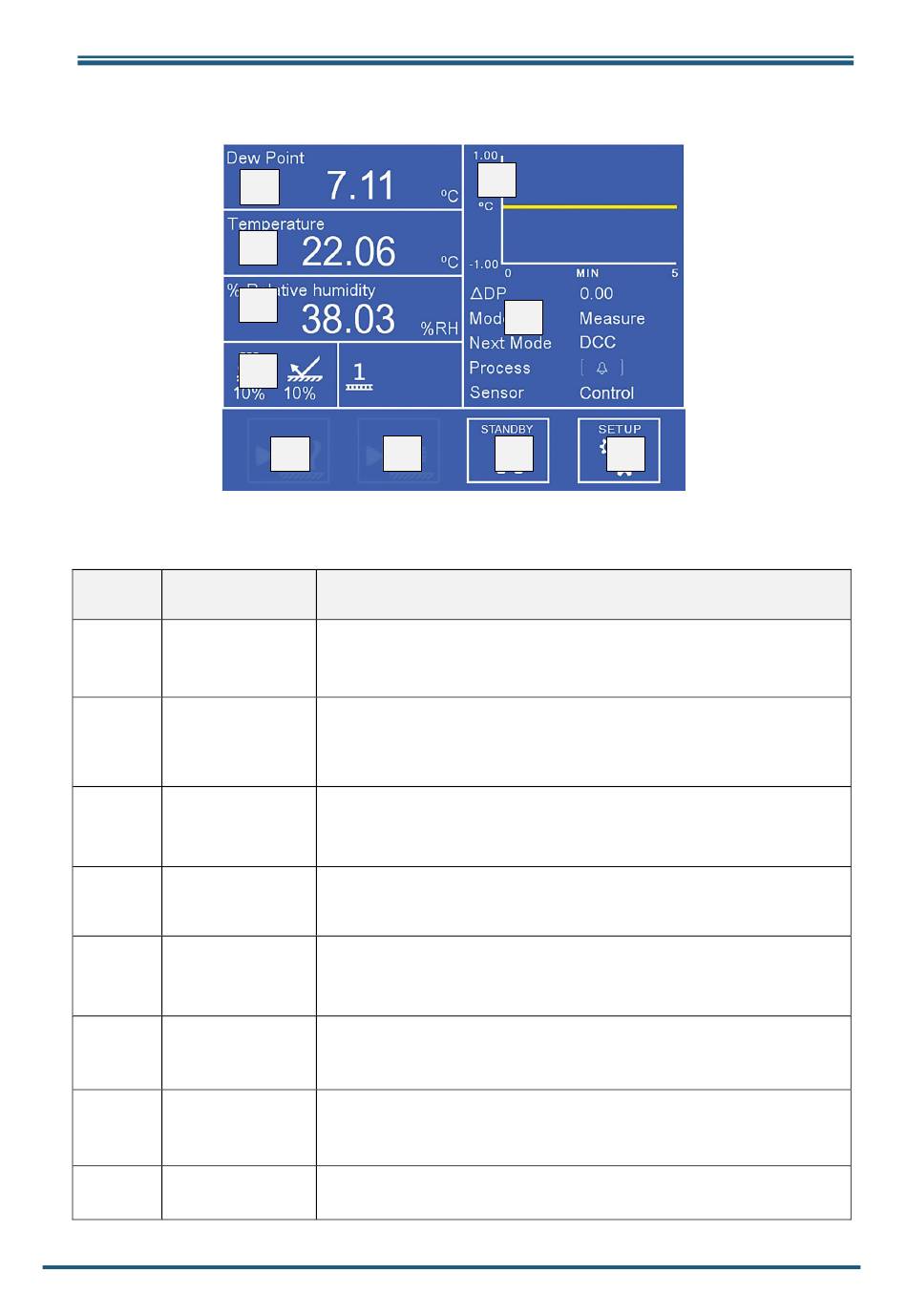

Figure 16 Main Screen layout

No. Name
1
Customizable
Readouts
2
Sensor Status
Display
3
Trend Graph
4
Operational
Status Display
5
DCC On/Off
6
Max Cool On/Off
7
Standby/Operate
8
Setup
Michell Instruments
1
1
1
2
6
5
Description
Display measured and calculated parameters. See section 3.1.3
for additional information
Displays both thermo-electric cooler (TEC) drive and optical
signal condition. Also indicates whether TEC is 1 or 2 stage. See
section 3.1.7 for additional information
Plots measured dew point over time. Time base can be changed
in display settings. Touch the readout once to enter full screen
mode.
See section 3.1.6 for a detailed description of this area.
Initiates or cancels a DCC. See section 4.4.1 for an explanation
of the DCC function.
See section 3.2 for DCC setup parameters.
Initiates or cancels a Max Cool. See section 4.4.2 for an
explanation of the Max Cool function.
Toggles between Measure and Standby modes. When switching
to Measure mode a DCC cycle will be initiated.
Access the Setup menu. See section 3.1.5 for information on
the menu structure and options.
Optidew User's Manual
3
4
7
8
17
