2.3. Instrument Connections

2.3.1. Optidew 501

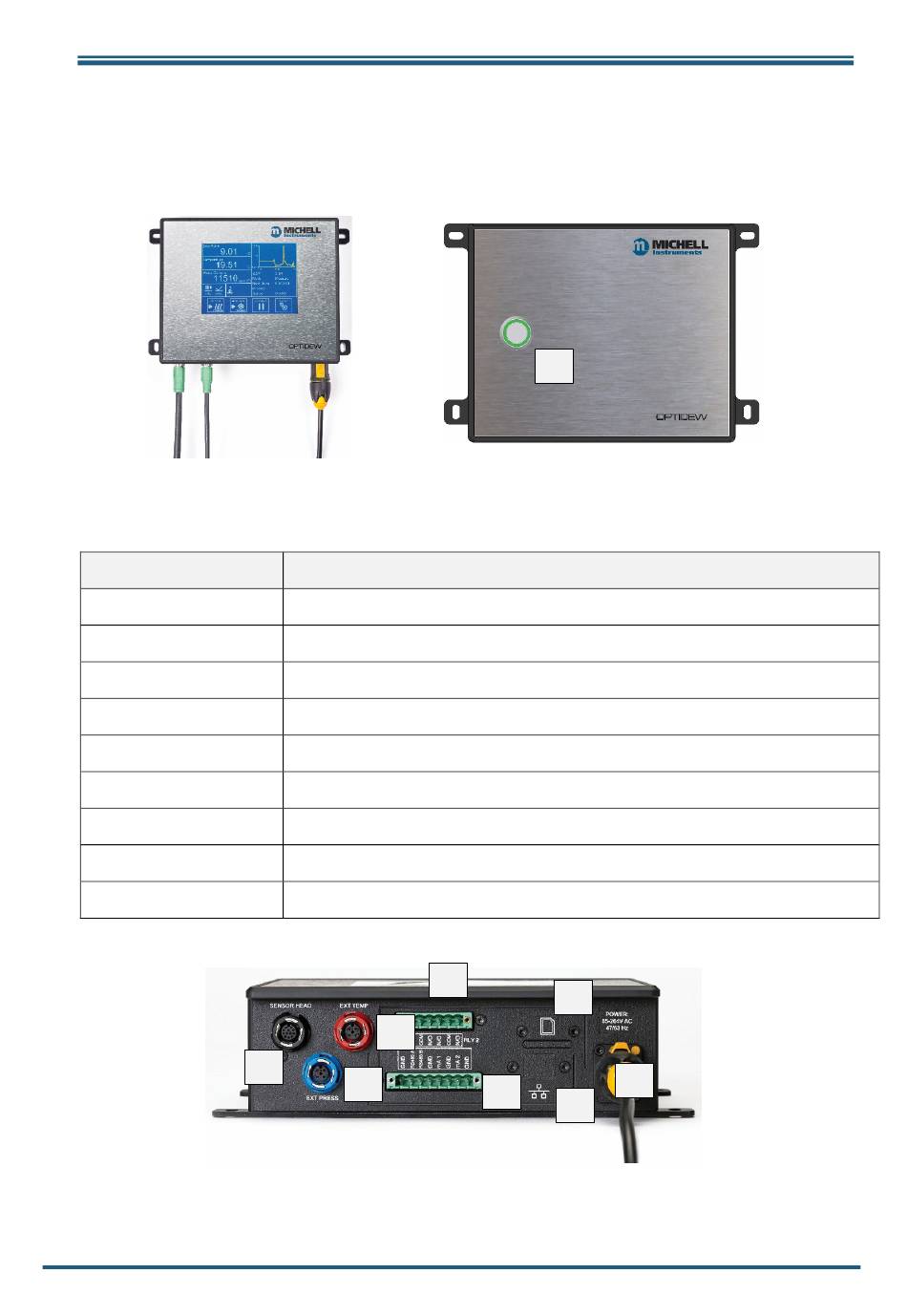

Figure 6 Optidew 501 with Touch Screen display or DCC control button

Number
1
2
3
4
5
6
7
8
9

Figure 7 Optidew 501 bottom panel

Michell Instruments
Description
DCC Control/ Status indicator
Sensor Cable connector
Temperature probe cable connector
Pressure transmitter cable connector
Alarm contacts connector
RS485 and analog output connector
SD Card slot (optional)
Ethernet port (optional)
Power Connector
3
2
4
1
5
7
6
8
Optidew User's Manual
9
7
