3 Components and Power Supply
switch ports.
The external button is physically protected so it cannot be accidentally pushed. You need a sharp-pointed object to
activate it.
3.4.1 Restarting the device
Carry out the following steps to restart the device:
(1) Press the RST button. Device restart is indicated by the S,C and L LEDs in off state and the ON LED lighting in
green.
(2) Stop pressing the RST button as soon as the S, C and L LEDs go to off state.
(3) The device will begin the restart with LEDs S and C off and LEDs L and ON in green.
3.4.2 Default configuration
By following these steps, the RST button allows you to boot the device with its default configuration:
(1) Press the RST button. Device restart is indicated by the S,C and L LEDs in off and the ON LED lights up in
green.
(2) Keep pressing the RST button. The S LED flashes green and the L LED lights up in green while you are still
pressing the RST button. This state indicates the device configuration has changed to the default configuration.
(3) Stop pressing the RST button to allow the device to restart.
(4) The device will begin the restart with LEDs S and C off and LEDs L and ON in green.
(5) As the device now has the default configuration, you can access it through the IP (bearing in mind that the de-
fault address for the equipment is 192.168.1.1 and that it is accessible from any switch port).
3.5 Connecting the data
The Regesta PLC has the following data connections.
3.5.1 Ethernet ports
The Regesta PLC incorporates up to two 10/100 BaseT Ethernet ports with automatic MDI/MDIX to connect to a loc-
al area network (LAN). Two LEDs, labeled "E1" and "E2", indicate the physical connection state. The LAN2 (E2) port
is optional and the device may not include said port.
LAN ports

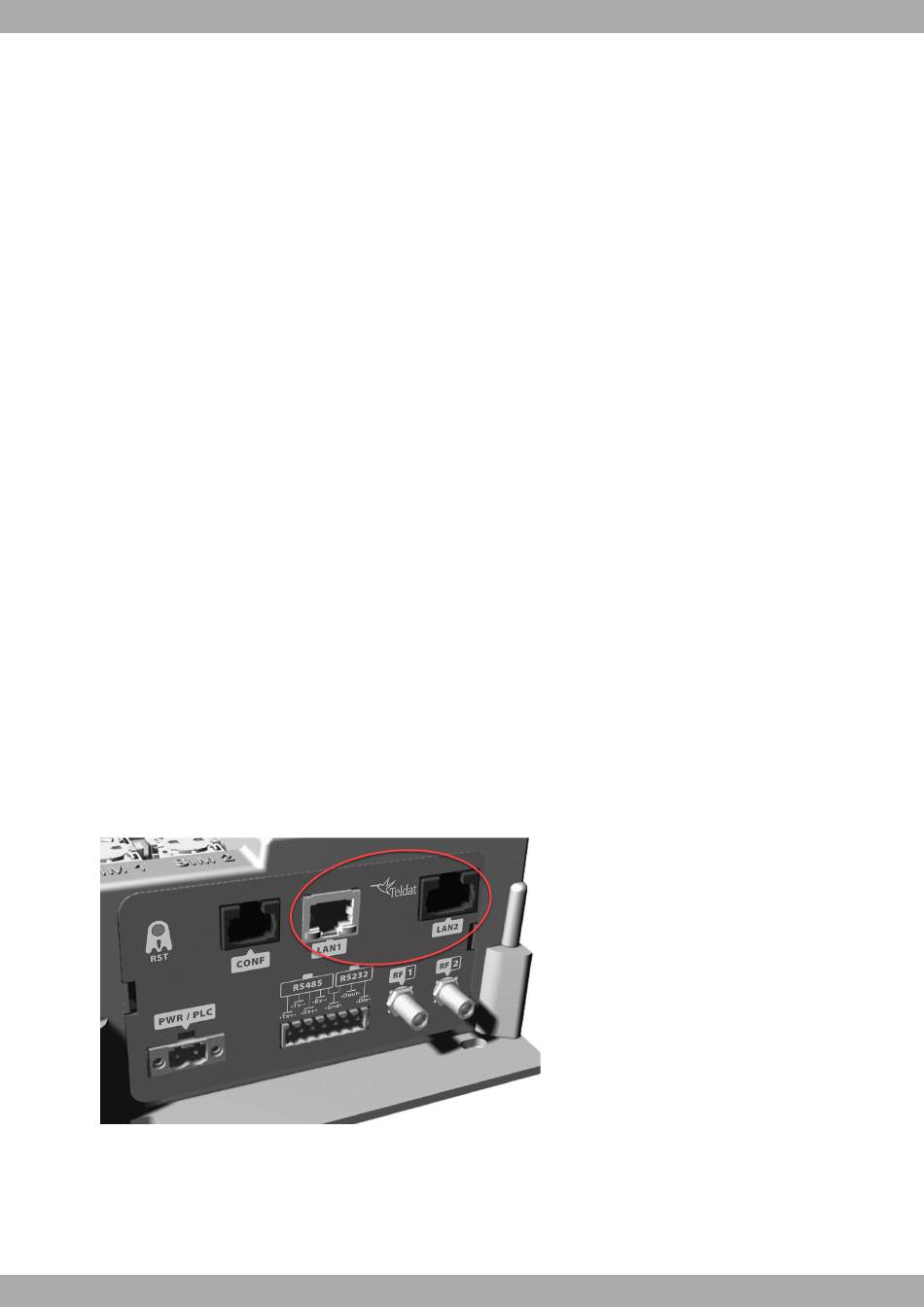

Fig. 14:
3.5.2 WWAN antenna connection (RF connectors)
The Regesta PLC has two connectors for RF antennas. To assemble and disassemble the antennas, simply screw
them into the connectors labeled RF1/RF2 (located on the connector panel of the device).
