Teldat Regesta PLC Installation Manual page 14

3 Components and Power Supply
3.2.1 Removing/Installing the connector cover
The Regesta PLC includes a protective case for the connectors. The main function of the protective case is to protect
against accidental electrical discharge, which can prove dangerous. Thus, direct contact with the connectors is
avoided while the device is operating.
To remove the protective case, carry out the following steps:
The middle of the front panel contains a fastening mechanism to lock the protective case in place. To remove the
case, rotate the fastening 90º to the right or left.

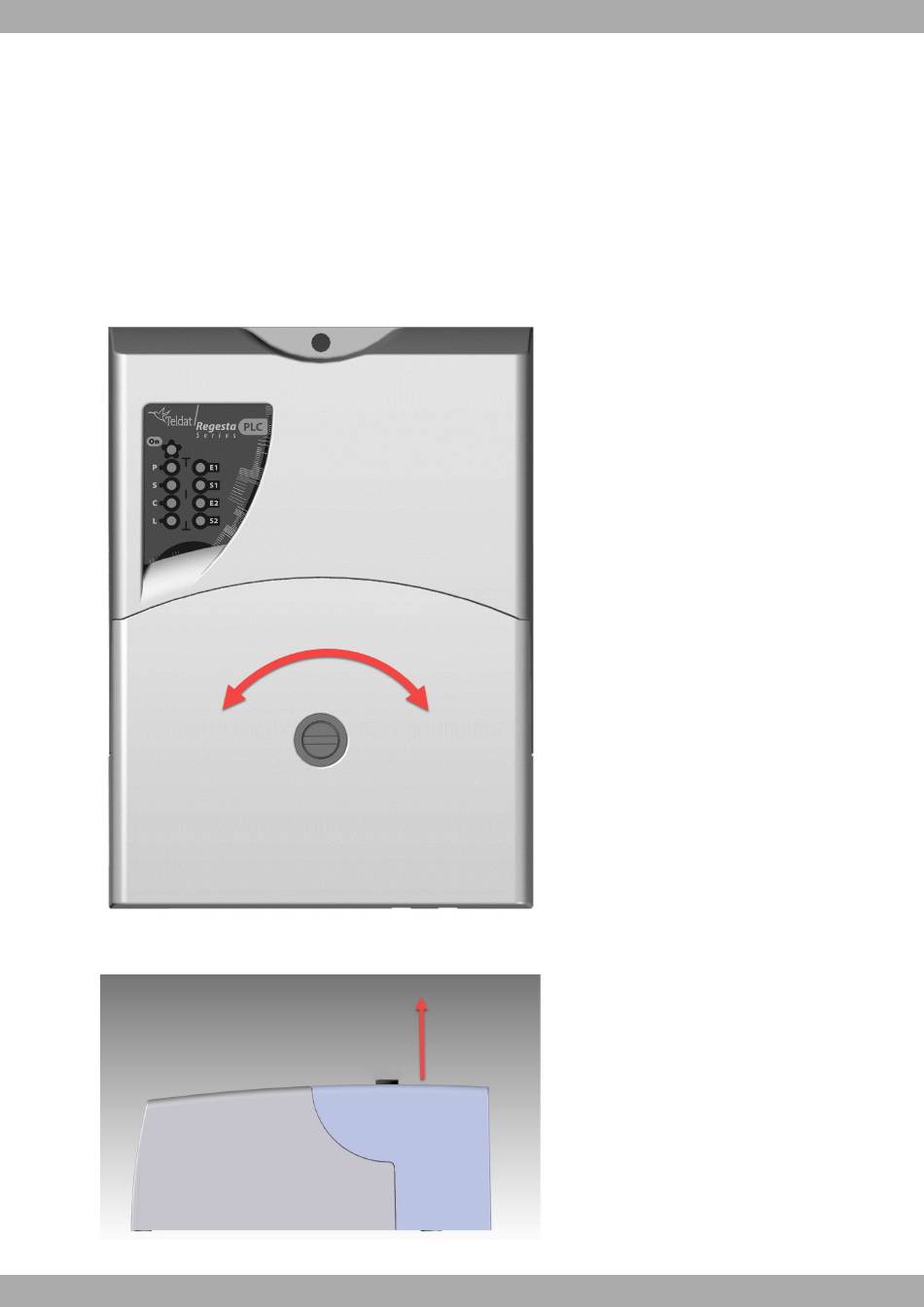

The following figure shows you how to remove the protective case from the device.
Slide the case up as shown:
