3.1.3 Underside panel
The router identification label is located on the underside panel. It has several perforations for different mounting op-
tions. The following figure shows the underside panel:

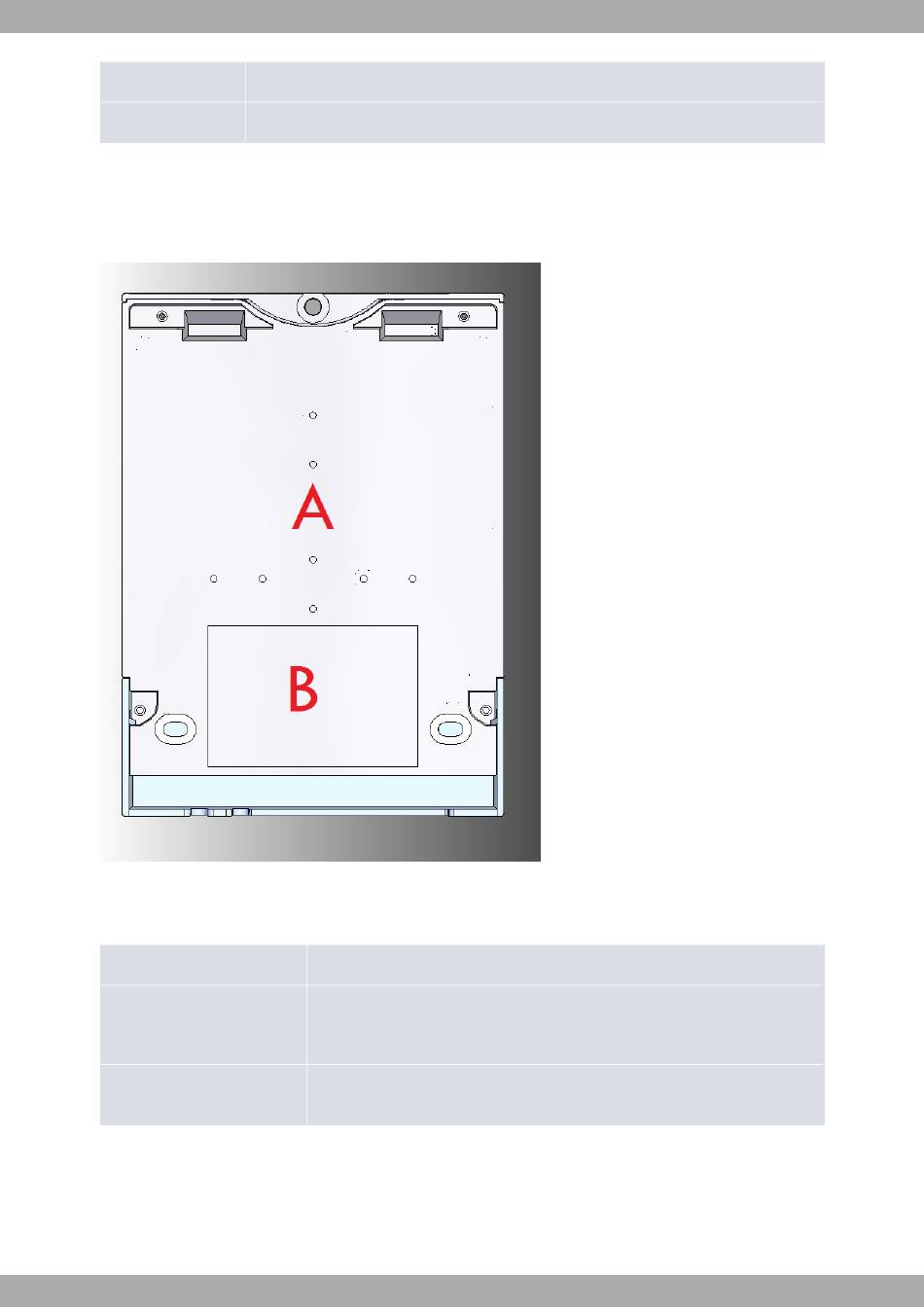

Underside Panel
Fig. 4:
The following components can be found on the underside panel:
Table 3: Underside panel components
Item
A
B
3.2 Assembly
Regesta PLC
RF1. WWAN antenna connector.
RF2. WWAN antenna connector.
Description
Slots for the accessories to attach the device to a DIN rail mount. For further in-
formation on this accessory, please see section
cessory
on page 12.
Flat area where the product information label is placed. This label contains inform-
ation on the device model, MAC, serial number, etc.
3 Components and Power Supply
Installing a DIN rail mount ac-
9
