Warning
All interconnected communication devices should be plugged to THE SAME GROUNDED POWER
OUTLET, which should at the same time be of good quality (lower than 10 ohms).
We recommend connecting all data devices to the same power source regardless of whether the work-
place is provided with an uninterrupted power supply (UPS), a regulated supply or it is independent of
other power supplies (such as lighting, etc.). This will help to prevent malfunctions and a premature
aging of the drivers and other components.
3.3.3 Connecting
3.3.4 Disconnecting
Power supply connector

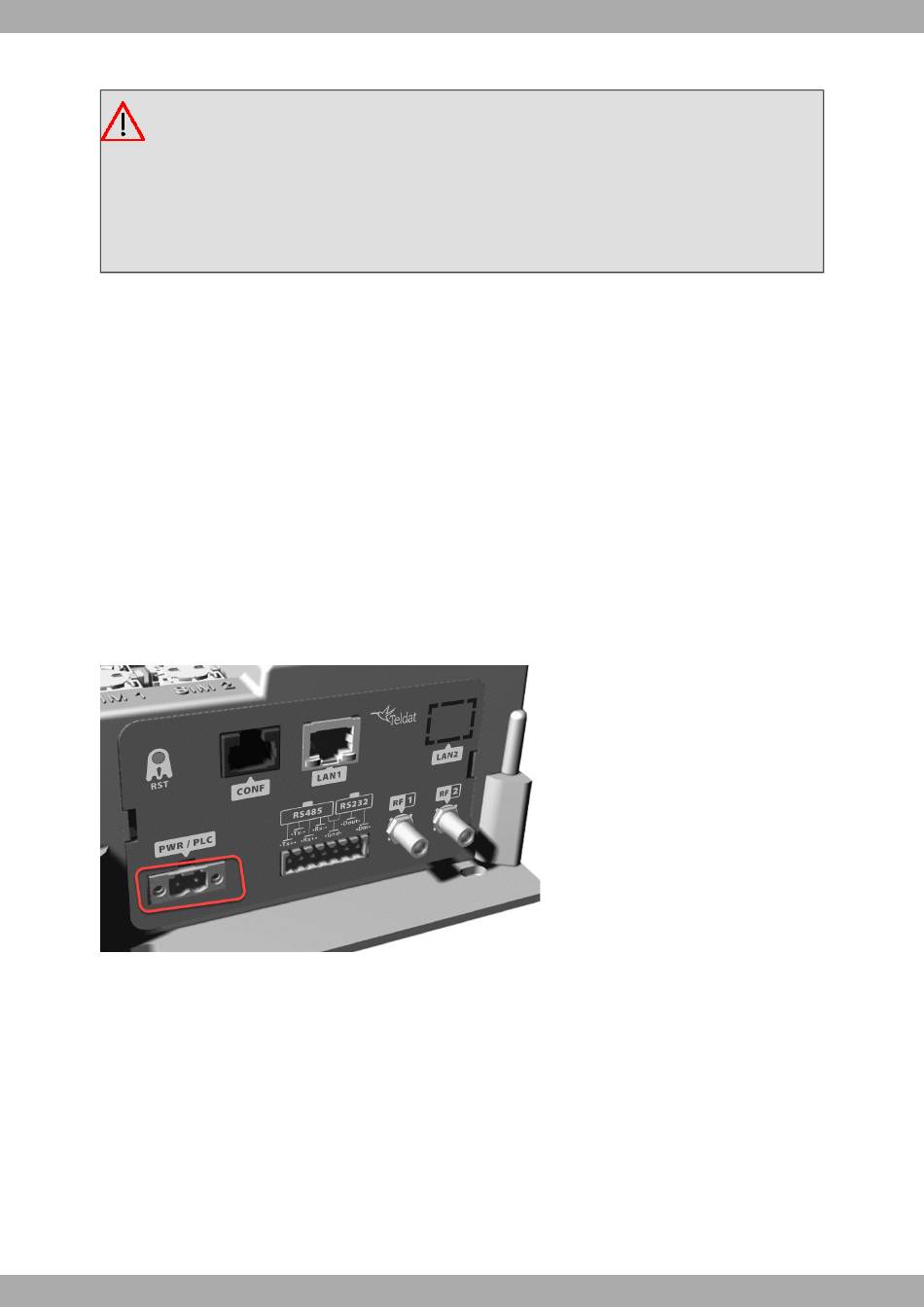

Fig. 13:
The connector has 2 terminals for powering.
To connect the power to the device, please follow the steps set out in
source is NOT connected to the electricity network; find the Power Supply connector (located on the front panel) and
insert the power cable connector.
3.4 RST button
The Regesta PLC has a button that can be accessed from the outside and is labeled "RST" . It is located on the con-
nector panel and has two functions.
• To trigger a reboot.
• To restart the device with the default configuration. The default configuration has IP 192.168.1.1 assigned to all
Regesta PLC
• Ensure that the power supply is NOT connected to either the electricity supply
or the router.
• Connect all data cables.
• Connect the power supply cable to the device.
• Install the protective case for the connectors.
• Connect the power supply cable to the electricity supply.
• Disconnect the power supply from the electricity supply.
• Remove the protective case.
• Disconnect the power supply from the router.
• Disconnect the data cables.
Connecting on page 15: check the power
