REMKO Smart-Control Touch
Connection of the remote control to the I/O module via a WLAN router
WLAN

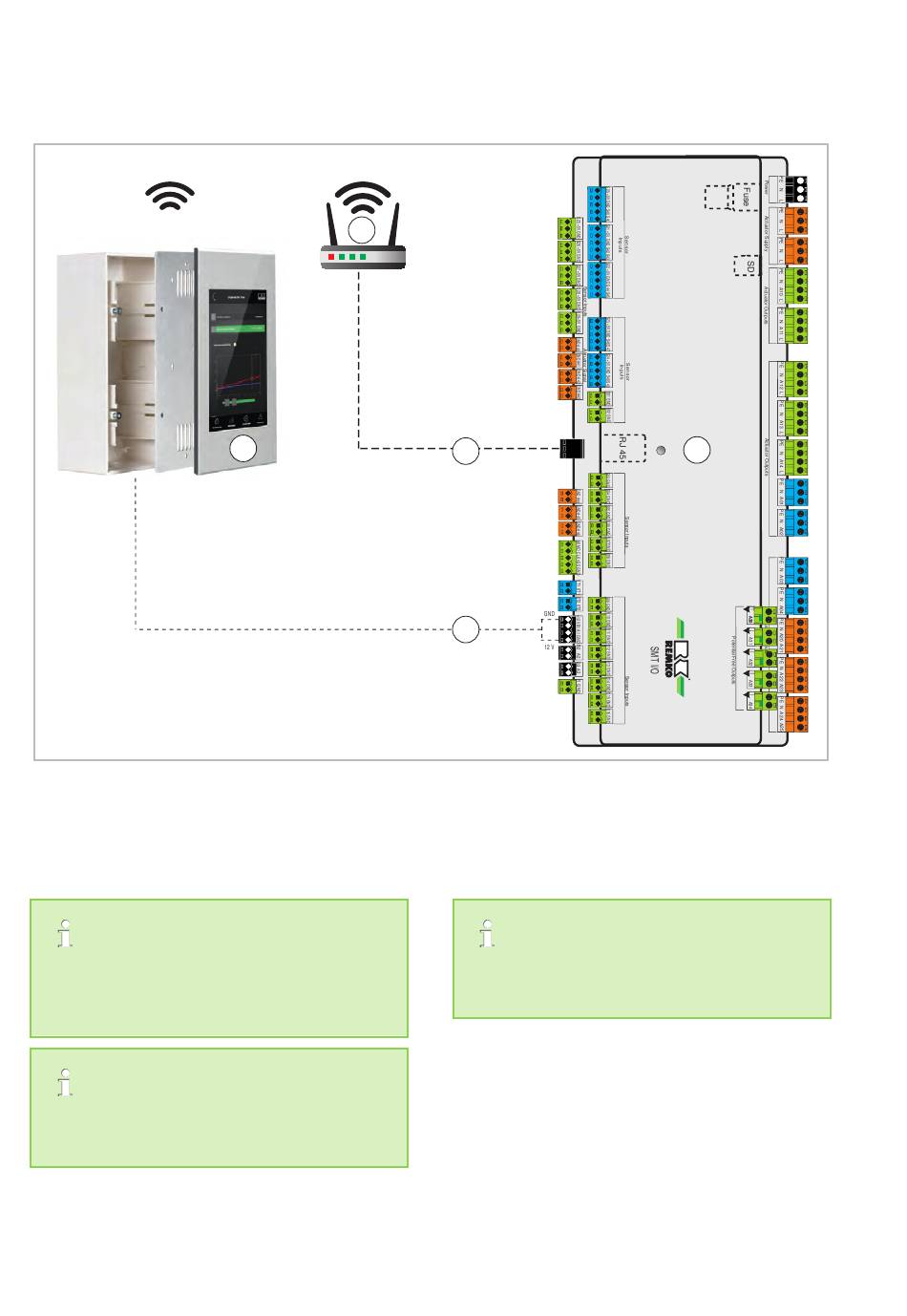

Fig. 19: Connection to the I/O module
A: Remote control
B: Customer's WLAN router
C: I/O module
The power supply (+12V) of the controller can
also be established by the customer with an
external mains power supply. Refer in this
regard to the technical data for the connection.
Setting up and installing the WLAN function can
be found in the corresponding operating instruc-
tions for the Smart-Control Touch controller.
76
B
A
1
2
1: Ethernet interface/patch cable connection (LAN
cable)
2: Power supply: +12V, terminal B1/A1
Observe the separate controller instructions for
commissioning and programming the REMKO
Smart-Control Touch controller.
C
