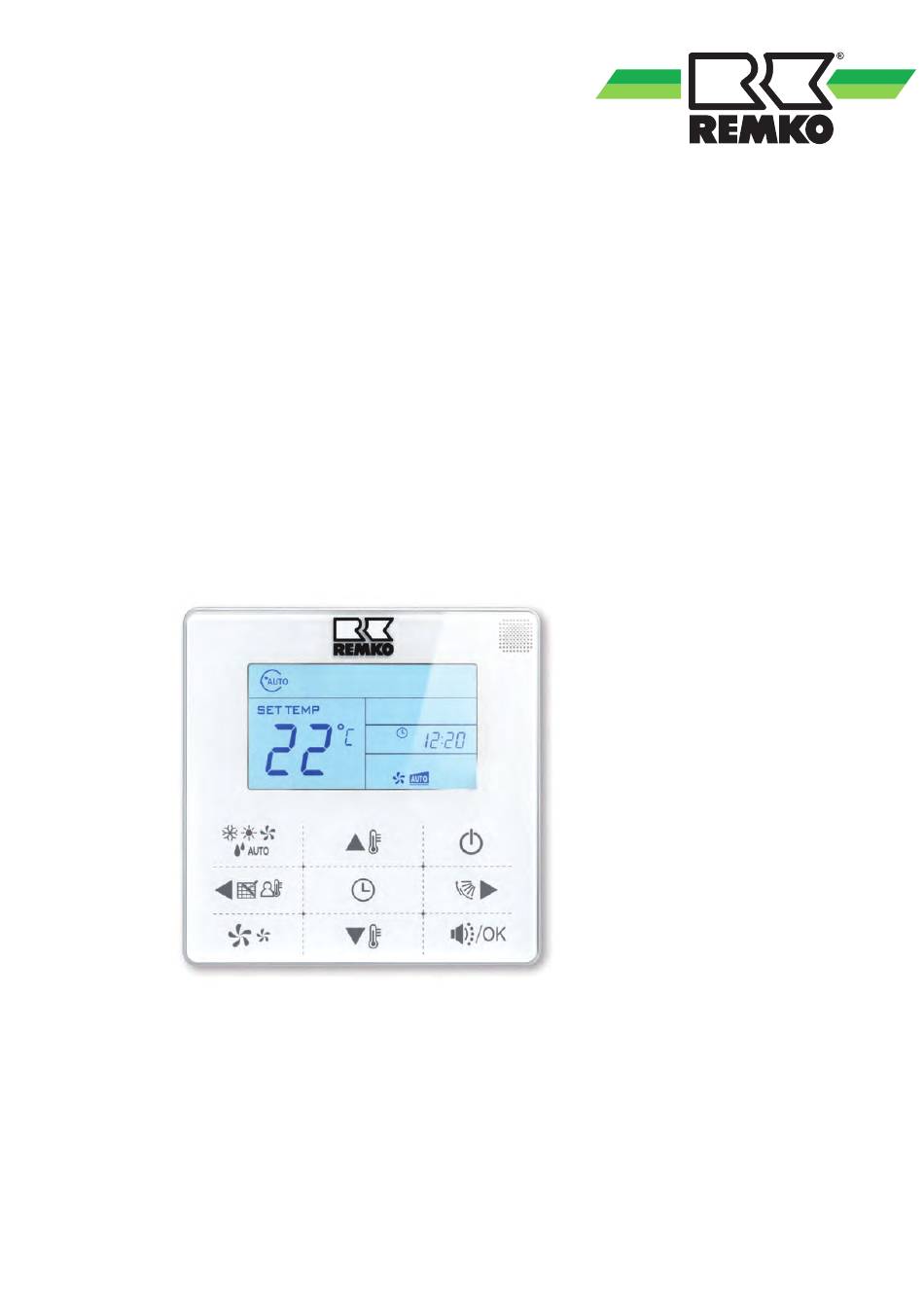

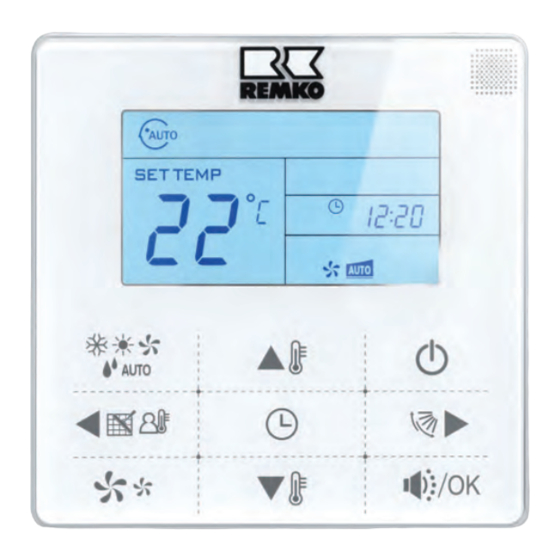

- Page 1 Assembly and operating instructions REMKO KFB 3 Wired remote control RVD DC, RVT DC, RXT DC MXD, MXT, MVD and MVW Read the instructions prior to performing any task! 0061-2013-09 Edition 1, en_GB...
- Page 2 Read these operating instructions carefully before commis- sioning / using this device! These instructions are an integral part of the system and must always be kept near or on the device. Subject to modifications; No liability accepted for errors or mis- prints! Installation and operating instructions (translation of the orig- inal)
-
Page 3: Table Of Contents
Table of contents Safety and usage instructions......................4 1.1 General safety notes........................4 1.2 Identification of notes........................4 1.3 Personnel qualifications........................4 1.4 Dangers of failure to observe the safety notes................4 1.5 Safety-conscious working....................... 4 1.6 Safety notes for the operator......................5 1.7 Safety notes for installation, maintenance and inspection.............. -
Page 4: Safety And Usage Instructions
REMKO KFB 3 Safety and usage instructions CAUTION! This combination of symbol and signal word 1.1 General safety notes warns of a potentially hazardous situation, which if not avoided may cause injury or mate- Carefully read the operating manual before com- rial and environmental damage. -
Page 5: Safety Notes For The Operator
The setup, connection and operation of the plete and return the "certificate of warranty" to units and its components must be undertaken REMKO GmbH & Co. KG at the time when the in accordance with the usage and operating units are purchased and commissioned. -
Page 6: Transport And Packaging
REMKO KFB 3 1.11 Transport and packaging The devices are supplied in a sturdy shipping con- tainer. Please check the equipment immediately upon delivery and note any damage or missing parts on the delivery and inform the shipper and your contractual partner. For later complaints can not be guaranteed. -
Page 7: Technical Data
Technical data 2.1 Unit data Series KFB 3 Wired remote control for unit types Operating mode RVD DC, RVT DC, RXT DC, MXD, MXT, MVD and MVW Operating range °C / r.H. -5 to +43 / 40 to 90 Temperature range for storage purposes °C / r.H. -
Page 8: Operation
REMKO KFB 3 Operation "Mode" key Press this key to choose from the different oper- Keys on the remote control ating modes: 1. Automatic mode: In automatic mode, the controller automatically selects either heating or cooling mode, depending on the set target temperature. Provided an ade-... -
Page 9: Assembly Instructions For Qualified Personnel
Assembly instructions 5. Recirculation mode: for qualified personnel In this mode, the unit is used as an air circulation unit. It is not possible to set a target temperature. Check the contents of the packaging for complete- The room is neither heated nor cooled. Please ness and check the unit for visible transport always observe the following additional informa- damage. -
Page 10: Installation
REMKO KFB 3 Installation Commissioning Disconnect the power supply. Switch the unit on using the room tempera- ture controller. Connect the 4-core cable to the terminals on the rear side. Check all functions. Mount the room temperature controller on the Install all removed parts. -
Page 11: Electrical Wiring
Electrical wiring 8.1 Electrical wiring diagram Fig. 4: Electrical wiring diagram Wired remote control Indoor unit On-site extension by way of a four-core cable (max. 15m) Colour Wired remote control coding Blue Gray Black Colour Indoor unit coding Brown Yellow Black White... -
Page 12: Connection Variants
REMKO KFB 3 Connection variants Variant 1: Assembly of a single split combination with a remote control Fig. 5: Assembly of a single split combination with a remote control A: KFB 3 C: RVT 262 DC IT B: RVT 262 DC AT Variant 2: Assembly of two single split combinations with a remote control (e.g. - Page 13 Variant 3: Assembly of a multi-split combination with a remote control Fig. 7: Assembly of a multi-split combination with a remote control A: KFB 3 C: MXW 262 B: MVT 1051 DC...
-
Page 14: Index
REMKO KFB 3 Index Operation ......8 Assembly ......9 Automatic mode . - Page 16 SFlb Customer Service Our equipment operates precisely and reliably. However, in the event of a fault, REMKO customer service is quickly at the scene. Our comprehensive network of experienced dealers always guarantees quick and REMKO GmbH & Co. KG reliable service.
