8 Assembly and installa-
tion of the Smart Control
Touch controller
NOTICE!
Only use the unit in dry areas and protect it
from electromagnetic radiation.
The Smart Control Touch remote can be mounted
to a wall, e.g. in the living room.

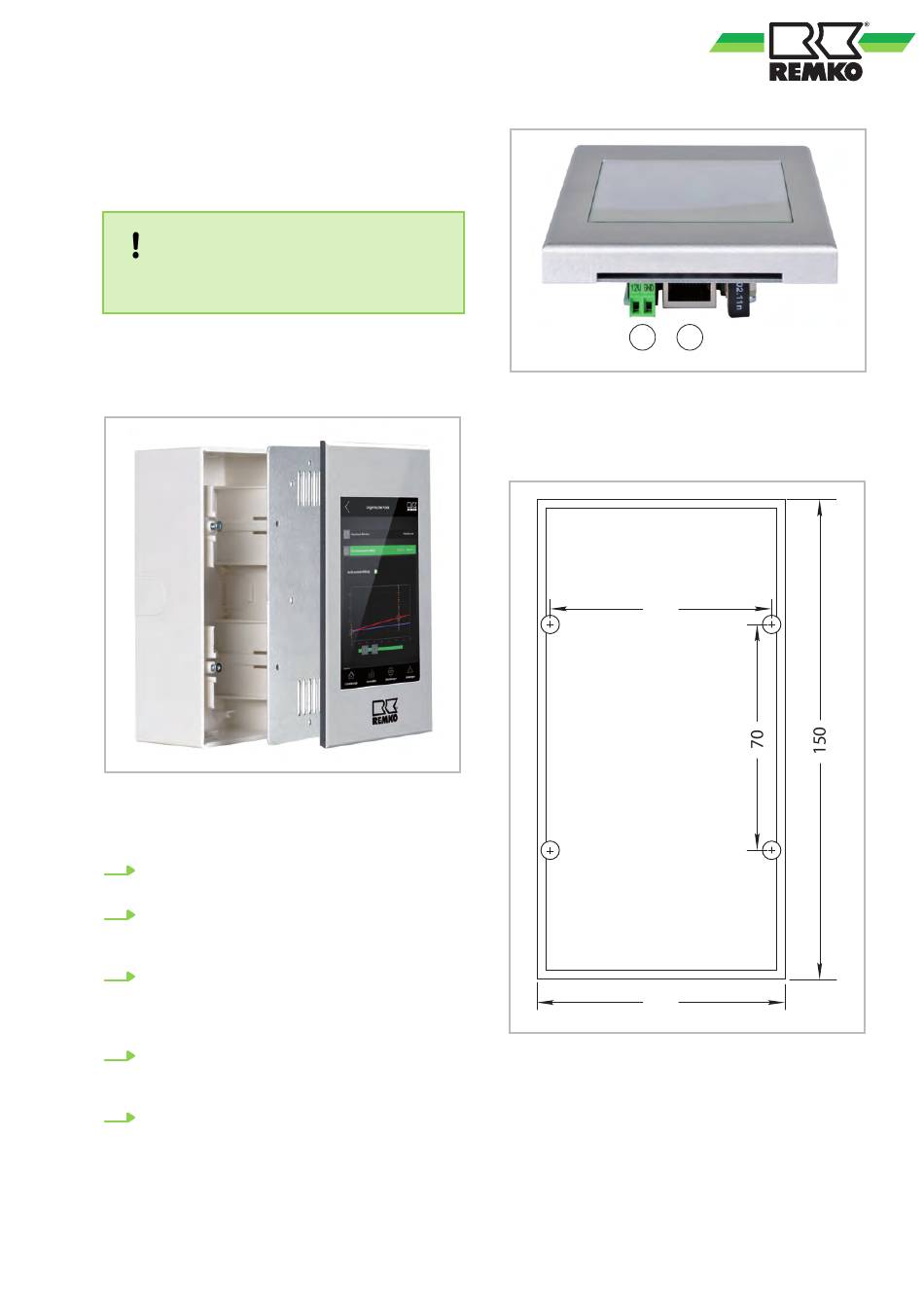

Surface-mounted installation
Fig. 13: Surface-mounted installation
To surface-mount the Smart Control Touch remote,
proceed as follows:
1. Fasten the wall bracket directly to the wall
using screws and rawlplugs.
2. Lay the patch cable (LAN cable) from the I/O
module of the heat pump to the wall bracket.
(Not supplied as standard).
3. Lay a two-core cable from the I/O module of
the heat pump to the wall bracket (terminal
+12V B1 and GND A1) for the power supply
(+12V). (Not supplied as standard).
4. Connect the remote control to the intended
sockets with the cables and bolt the base
plate to the wall bracket.
5. Fit the remote control on the base plate with
magnets.
1
Fig. 14: Remote control connections
1: 12 V / GND connection
2: Patch cable connection (LAN cable)
60
80
Fig. 15: Assembly and dimensioning of the wall
bracket (all measurements in mm)
2
73
