6.3 Template hydraulic diagrams with installation parameters

NOTICE!
The following template hydraulic systems are only to be used as a planning aid, and do not replace an
installation drawing! Technical modifications reserved!
The design and planning of customer-provided hydraulic systems must be performed by a specialist
installer!
We recommend adapting plant-specific parameters, such a heating limits and bivalence point, to the
design data!
You can find further hydraulics examples at www.remko.de

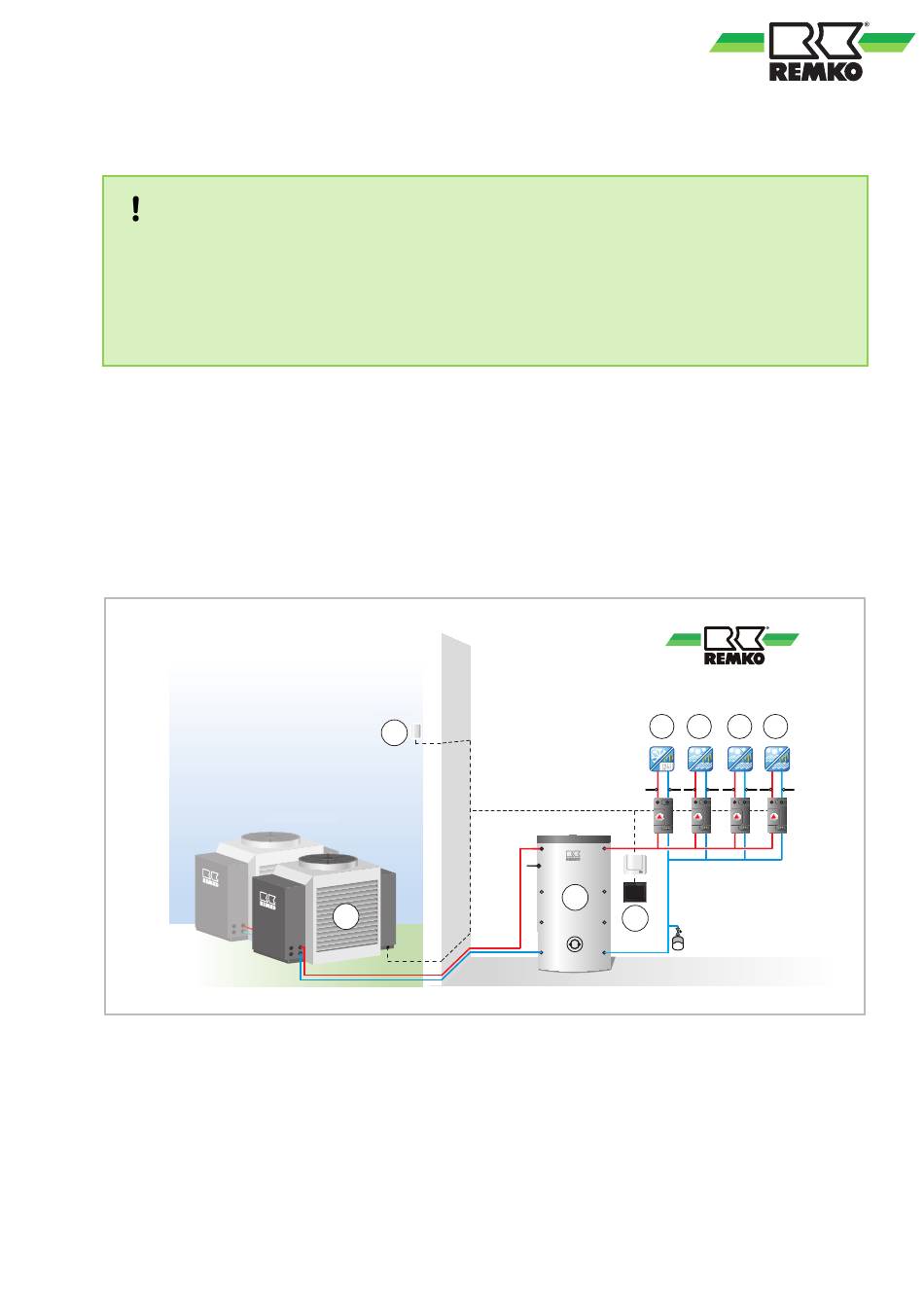

Hydraulic circuit diagram for heat pump SQW Package Cologne
Configuration: Circuit unmixed, circuit 1 mixed, circuit 2 mixed, circuit 3 mixed.
Operating mode: monoenergetic.
Function: Heating or cooling.
This hydraulic circuit diagram serves solely to assist in planning activities;
the customer-provided hydraulic system on site must be planned and installed by the installation contractor!
REMKO SQW Wärmepumpe
Fig. 12: Example hydraulic diagram
A: Heat pump SQW
B: Storage tank
C: Smart Control
D: External probe
Außenfühler S 06
D
A
1: Unmixed circuit
2: Mixed circuit 1
3: Mixed circuit 2
4: Mixed circuit 3
1 2
HK ungemischt HK 1 gemischt
S 09 S 10 S 11
HGU HGM
S07
MPS
B
Pufferspeicher
Smart-Control
C
3 4
HK 2 gemischt HK 3 gemischt
S 12 S 13 S 14 S 15 S 16
HGM HGM
