Operating manual

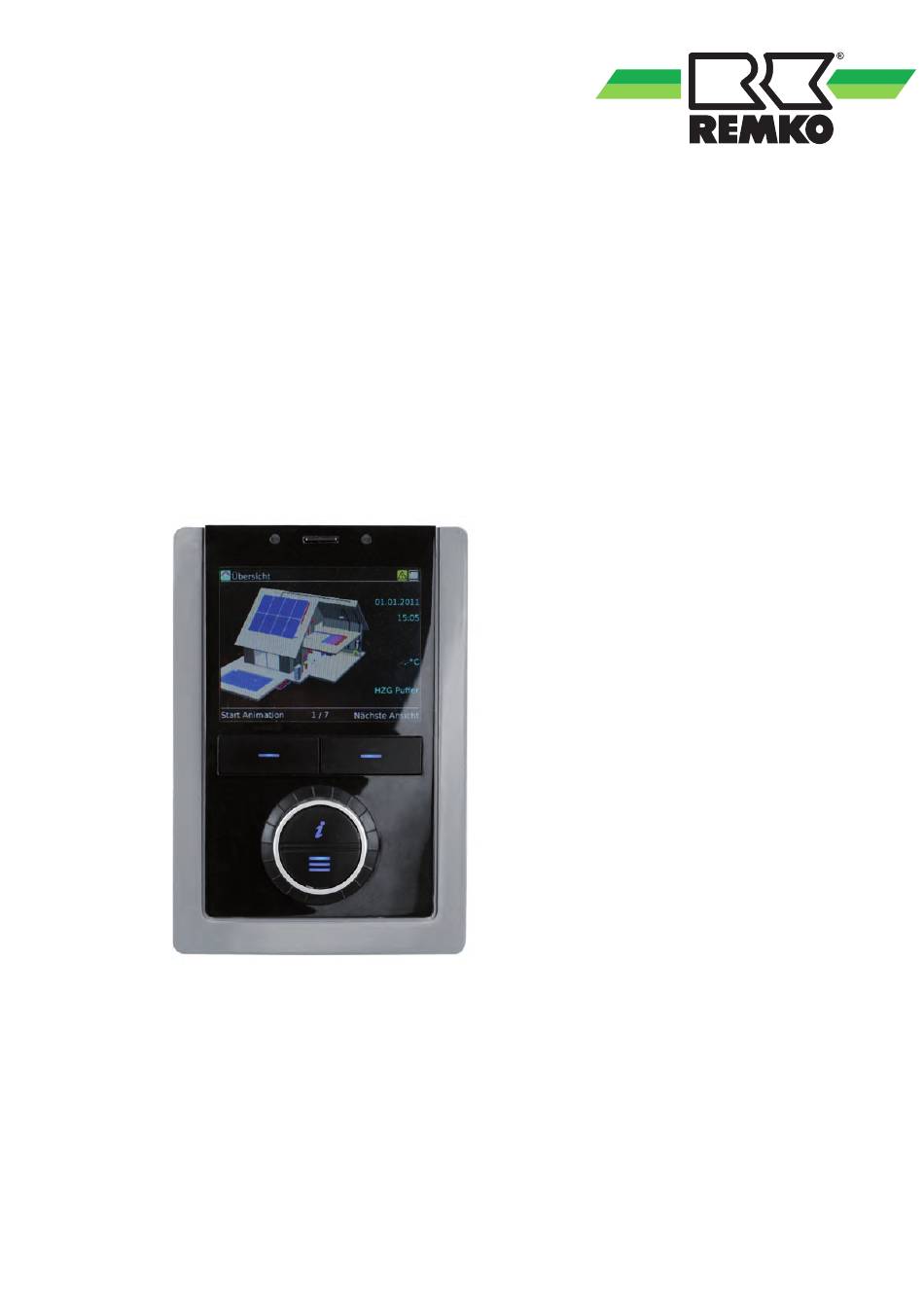

REMKO Smart-Control
Series HTS, WKF/WKF-compact and WKF Duo
Quick manual for users
Read the instructions prior to performing any task!
0122-2018-06 Edition 2, en_GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTS Series and is the answer not in the manual?

Questions and answers

Related Manuals for REMKO HTS Series

Summary of Contents for REMKO HTS Series

  • Page 1 Operating manual REMKO Smart-Control Series HTS, WKF/WKF-compact and WKF Duo Quick manual for users Read the instructions prior to performing any task! 0122-2018-06 Edition 2, en_GB...
  • Page 2 Read these operating instructions carefully before commis- sioning / using this device! These instructions are an integral part of the system and must always be kept near or on the device. Subject to modifications; No liability accepted for errors or mis- prints! Translation of the original operating manual...

  • Page 3: Table Of Contents

    Table of contents Safety and usage instructions......................4 1.1 General safety notes........................4 1.2 Identification of notes........................4 1.3 Personnel qualifications........................4 1.4 Dangers of failure to observe the safety notes................4 1.5 Safety-conscious working....................... 4 1.6 Safety notes for the operator......................5 1.7 Safety notes for installation, maintenance and inspection..............

  • Page 4: Safety And Usage Instructions

    REMKO Smart-Control Safety and usage instructions CAUTION! This combination of symbol and signal word 1.1 General safety notes warns of a potentially hazardous situation, which if not avoided may cause injury or mate- Carefully read the operating manual before com- rial and environmental damage.

  • Page 5: Safety Notes For The Operator

    The setup, connection and operation of the plete and return the "certificate of warranty" to units and its components must be undertaken REMKO GmbH & Co. KG at the time when the in accordance with the usage and operating units are purchased and commissioned.

  • Page 6: Transport And Packaging

    REMKO Smart-Control 1.11 Transport and packaging 1.12 Environmental protection and recycling The devices are supplied in a sturdy shipping con- tainer or inside the heat pump casing. Please Disposal of packaging check the equipment immediately upon delivery All products are packed for transport in environ- and note any damage or missing parts on the mentally friendly materials.

  • Page 7: Operation - General

    Selecting user / expert mode NOTICE! Fig. 1: Controls of the Smart Control The settings in expert mode may only be con- 1: SD card figured by REMKO-authorised installers! 2: Display 3: Softkeys There are two different authorisation levels for the 4: Rotary knob main menu: user mode and expert mode.
  • Page 8 REMKO Smart-Control Navigation and changing parameters Confirm the selection "Language / Time" with "OK" (right softkey). You are now on the parameter Calling up the main menu menu of the "Language / Time" folder. Press the menu key until the menu items "Informa- tion", "Settings"...
  • Page 9 Overview Time: : 00 Start animation Next view Fig. 9: Selecting a parameter 2 Fig. 11: Exiting the menu Changing the parameter Turn the rotary knob to set the number of hours. Turning the knob to the left reduces the value, and turning it to the right increases it.

  • Page 10: Operation - User Level

    REMKO Smart-Control Operation - User level 3.1 Menu structure of the controller - The following diagrams and explanations The following information is primarily directed at relate to the full menu structure, which my differ system operators. Specialists can find relevant from the menu structure of your own controller.
  • Page 11 Overview of the menus (User level) Favourites LEVEL 0 3D house Hot water Room climate menu Main menu Chimney LEVEL 1 Information Settings Messages sweep *) Basic Basic Error messages LEVEL 2 Mode information settings warnings Hot water Solar Solar valve Domestic Domestic...
  • Page 12 REMKO Smart-Control "3D house" animation Explanation of operating statuses: Once the Smart Control commissioning wizard has Circuit is in operation been completed, you will see the home screen with Hot water or heating is being heated by solar the 3D house. Pressing the left softkey starts the energy animation.
  • Page 13 Favourites menu: for the user Solar Using the rotary knob (turning it clockwise) you can access other views. They allow you to rapidly and easily adjust the most important parameters and view the yield in kilowatt hours Hot water The Storage tank set temperature (set with the left softkey, then confirm with "OK") is the tempera- ture to which the hot water is to be heated to ensure comfortable conditions.
  • Page 14 REMKO Smart-Control Room climate One-off hot water/party mode Colder/Warmer can be used to adjust the temper- Activating Party mode (select with the right ature of the heating (set with the left softkey, then softkey) causes the next window of time with confirm with "OK").
  • Page 15 Solar yield User pro le A 15:45 12 15 18 21 24 History Time period Fig. 23: Time programmes Fig. 24: Example diagram: Solar yield Then turn the rotary knob clockwise. NOTE: These yields are also displayed with an activated PV function Then turn the rotary knob clockwise.
  • Page 16 REMKO Smart-Control "Main menu" menu item Pressing the Menu key takes you to the main menu. There is an expert mode and a user mode. The two authorisation levels are identified by icons. Some menu items and parameters are only visible in expert mode.
  • Page 17 "Information" menu item - User This menu contains information about the current operating status of the system. The menu is opened with the key on the right. Pressing the left-hand key allows you to jump up a level in the menu structure again. By turning the rotary knob, you can select another menu item (for instance "Settings").
  • Page 18 REMKO Smart-Control "Information" menu item (continued) - User Authorisa- Level 2 Level 3 menu item Info tion level menu item Pump A01 Control signal A40 Collector temp. S01 Lower storage tank temp. S02 Storage tank charging status Solar Storage tank changeover valve A12...
  • Page 19 "Information" menu item (continued) - User Authorisa- Level 2 menu Level 3 menu item Info tion level item Heating cycle set temp. Heating cycle actual temp. Room target temperature 2nd mixed Heating cycle Room actual temperature Room humidity Mixed outside temperature Heating cycle set temp.
  • Page 20 REMKO Smart-Control "Information" menu item (continued) - User Authorisa- Level 2 menu Level 3 menu item Info tion level item Heat pump status Remaining idle time Defrost status S22 Compressor status S21 Compressor frequency *2), *3), *5) Fault status S20 *2), *4)
  • Page 21 "Information" menu item (continued) - User Authorisa- Level 2 menu Level 3 menu item Info tion level item Heat pump status Remaining idle time Defrost status Compressor status Fault code (outside) Fault code (inside) You can find Heat pump many of the indi- Target temperature vidual info texts (I/O 2) *5)
  • Page 22 REMKO Smart-Control "Information" menu item (continued) - User Authorisa- Level 2 menu Level 3 menu item Info tion level item Current output Solar yield Solar yield (day) Solar Solar yield (week) Solar yield (month) Solar yield (year) Therm. power, heat pump Therm.
  • Page 23 "Information" menu item (continued) - User Authorisa- Level 2 menu Level 3 menu item Info tion level item Current household output Household energy (day) Household Household energy (week) Household energy (month) Household energy (year) Photovoltaic output Photovoltaic yield (day) Photovoltaic yield (week) Photovoltaic yield (month) Photovoltaic yield (year) Photovoltaic yield...
  • Page 24 REMKO Smart-Control "Settings" menu item - User In this menu you can configure the settings. For example, you can adjust hot water and heating tempera- tures or change time settings. The menu is opened with the key on the right. Pressing the left-hand key allows you to jump up a level in the menu structure again.
  • Page 25 "Settings" menu item (continued) - User Authorisa- Level 2 menu Level 3 menu item Level 4 menu item Info tion level item Room climate mode Mode Differ. from cooling limit Differ. from heating limit Cooling cycle mode Time program Cooling Cooling curve adjustment Heating/ cooling...
  • Page 26 REMKO Smart-Control "Settings" menu item (continued) - User Authorisa- Level 2 menu Level 3 menu item Level 4 menu item Info tion level item Heating cycle mode Heating curve adjustment Fixed value Time program A Time program B 2nd mixed...

  • Page 27: Setting The Heating Curves

    "Settings" menu item (continued) - User Authorisa- Level 2 menu Level 3 menu item Level 4 menu item Info tion level item Number of power tariffs You can find Heat pump Graduated tariff Time field Tariff 1-9 many of the indi- vidual info texts Power tariff 1-9 about the level...
  • Page 28 REMKO Smart-Control - The standard inlet temperature and the outside temperature are set using the same procedure. Standard ow temp. Fig. 27: Heating curve adjustment 1: Temperature of the heating water in °C 2: Inlet temperature heating curve Fig. 29: Setting the standard inlet temperature 3: Return flow heating curve 4: Outside temperature in °C...
  • Page 29 Example for activating a heating cycle, Standard inlet temperature: e.g. 1st mixed heating cycle the standard inlet temperature corresponds to the Activating a heating cycle with panel heating. set temperature of the heating water at the standard outside temperature in the building loca- 1.
  • Page 30 REMKO Smart-Control - The standard inlet temperature and the outside temperature are set using the same procedure. Fig. 34: Setting the standard inlet temperature Standard outside temp. Fig. 35: Set the standard outside temperature Operating the heating cycle with a fixed value is not recommended, as it will cause the heat pump to operate inefficiently.

  • Page 31: Error Messages On The Smart-Control

    Error messages on the Smart-Control Operating messages, warnings and error display on the Smart-Control Operating messages Description Desig. Details The temperature on one of the probes in storage tank 1 Storage tank 1: Max. ID6000 is higher than the maximum permitted storage tank temperature reached temperature ID6001...
  • Page 32 REMKO Smart-Control Description Desig. Details Low pressure differ- The pressure difference is too low to start the com- ID6115 ence pressor Maximum defrosting ID6116 Maximum defrosting period period Error Description Desig. Details The anti-freeze protection in the heat pump's heat...
  • Page 33 Description Desig. Details Short circuit - circula- Short circuit - drinking water circulation temperature ID7211 tion temp. probe probe Open contact - inlet ID7212 Open contact - inlet temp. probe temp. probe Short circuit - inlet ID7213 Short circuit - inlet temp. probe temp.
  • Page 34 REMKO Smart-Control Description Desig. Details The physical address of the detected KNXnet/IP inter- Incorrect interface ID7249 face is not consistent with the parameter settings of the detected SMT controller The medium flow rate fell below the heat pump's min- Min. medium flow rate...
  • Page 35 Description Desig. Details Compressor stopped due to an emergency stop signal. ID7274 WKF fault code E177 After eliminating the cause of the error, the indoor and outdoor units must be restarted to reset the error Short circuit or open contact - probe ambient air tem- ID7275 WKF fault code E221 perature motherboard outdoor unit CN43 Pin 1&2...
  • Page 36 REMKO Smart-Control Description Desig. Details Short circuit - ID7299 3rd mixed heating cycle S12.2 Short circuit - 3. mixed heating cycle return flow temp. inlet temp. Open contact - ID7300 3rd mixed heating cycle S11.2 Open contact - 3. mixed heating cycle return flow temp.
  • Page 37 Description Desig. Details ID7319 WKF fault code E554 Refrigerant quantity / refrigerant loss malfunction Power ratings for the com. kit board (IM) and the moth- ID7320 WKF fault code E556 erboard (AM) differ - check board versions. Open contact - ID7328 2nd mixed heating cycle Open contact - 2.
  • Page 38 REMKO Smart-Control Description Desig. Details Upper application area The guaranteed application area of the external unit in ID8140 (heating) heating mode is currently exceeded The temperature has currently dropped below the guar- Lower application area ID8141 anteed application area of the external unit in cooling...

  • Page 39: Assembly

    To wall mount the Smart Control remote, proceed as follows: For installation and commissioning of the Fasten the wall bracket directly to the wall REMKO Smart-Control remote control, follow using screws and rawl plugs. the corresponding instructions Connect the bus connection (maximum 50 m) with shielded cable (4 x 0.5mm²).

  • Page 40: Index

    REMKO Smart-Control Index Assembly ......39 Operation User level ......10 Changing parameters .
  • Page 42 REMKO Smart-Control...
