Hydraulic circuit diagram
Functions: Heating
The sample hydraulic schematic shown below is only to be used as a planning aid, and does not
replace an installation drawing! Technical modifications reserved!
The design and planning of customer-provided hydraulic systems must be performed by a specialist
installer!

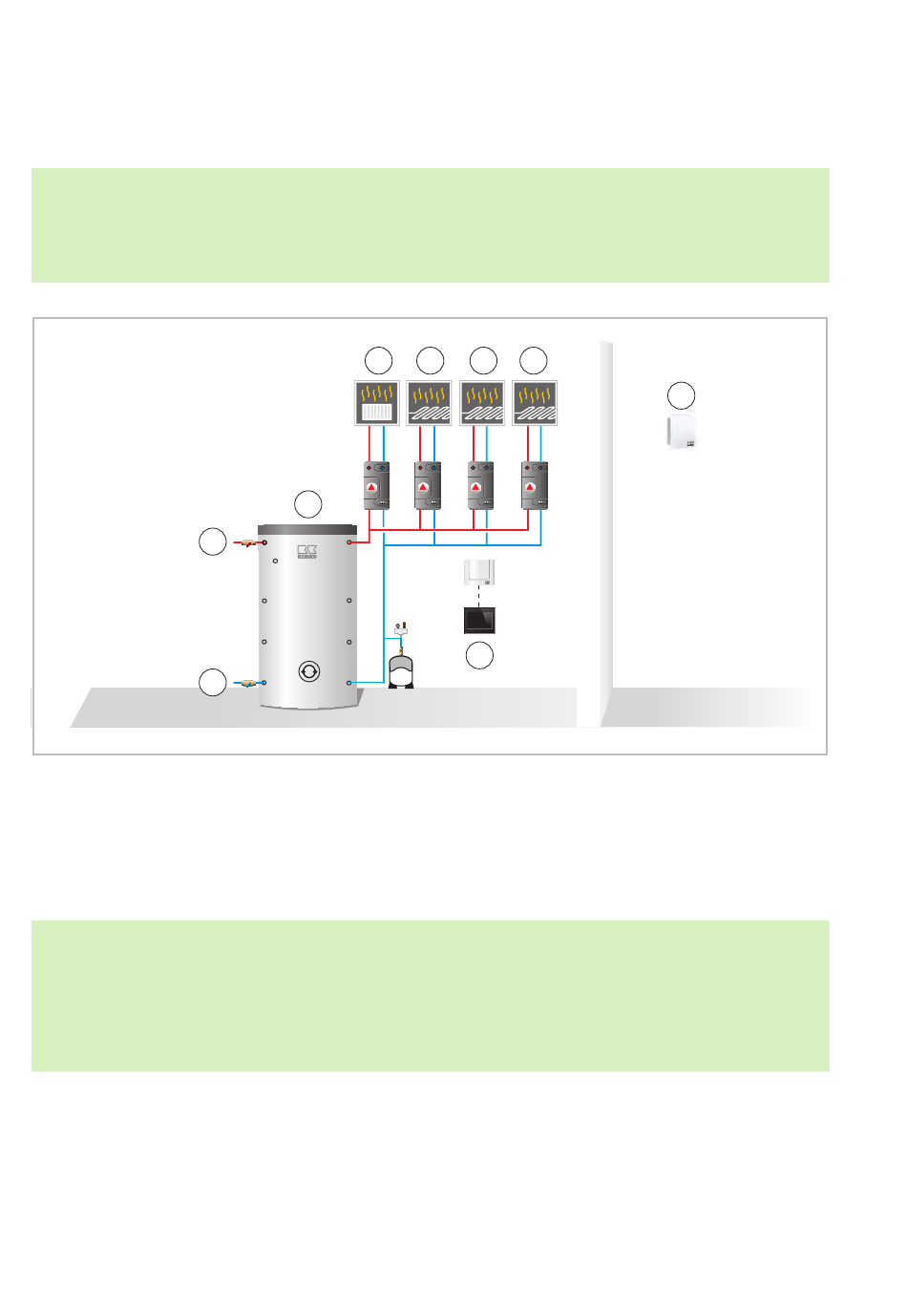

Fig. 8: Example hydraulic diagram
A: Storage tank
B: Room temperature/humidity probe
C: Smart Control Touch
1: Heat pump inlet line
2: Heat pump return flow
CAUTION
During cooling mode via the underfloor/panel heating system, make sure that the dew point is not
undershot. REMKO recommends installing dew point probes in conjunction with one (max. five
probes for dew point monitoring) or more dew point monitors.
Cooling via an underfloor/panel heating system is technically only released in conjunction
with a room temperature/moisture probe from REMKO.
24
3
A
1
2
4 5 6
Pufferspeicher
C
3: Unmixed circuit
4: 1st mixed circuit
5: 2nd mixed circuit
6: 3rd mixed circuit
