Setting ATPC
This procedure is based on the prevailing path conditions being typical during the
setup procedure, that is, not subject to rain fade or other fade conditions and assumes
the Target Fade Margin is the primary driver for establishing the settings.
The objective is to check that Remote Fade Margin and the Detected Tx Power are
within +/- 3 dB of the planned figures for the link, and that there is appropriate Tx
Power headroom for correct ATPC operation.

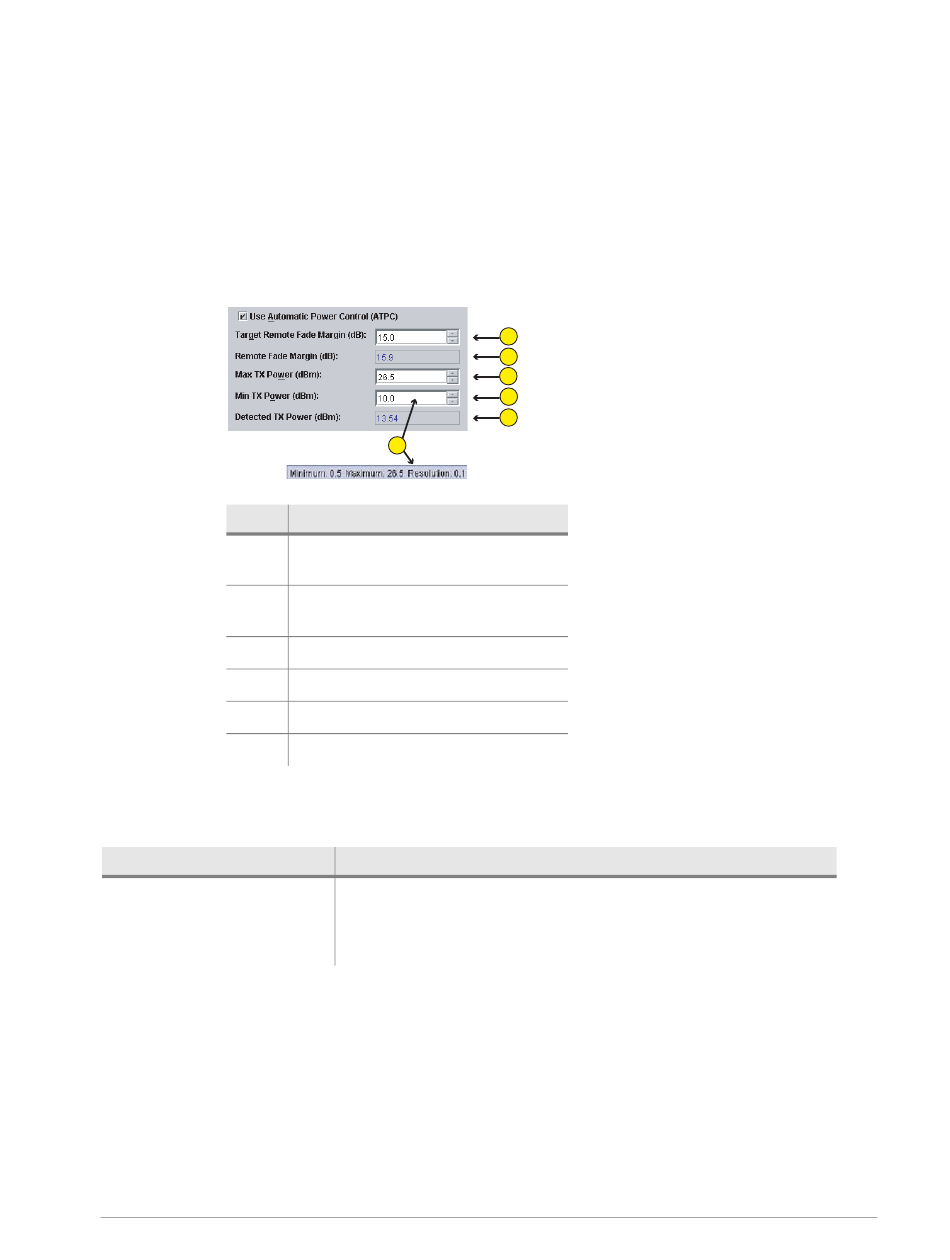

Figure 4-8.
Item
1
2
3
4
5
6
ATPC Functions and Descriptions
Table 4-7.
Function
Target Remote Fade Margin
260-668080-001 Rev 002 March 2013
Example ATPC Settings
6
Description
Set the fade margin for the
remote end
Calculated remote end fade
margin
Set maximum local end Tx power
Set minimum local end Tx power
Detected local end Tx power
Mouse-over for tooltip advice
Description
This is the desired fade margin for the remote-end ODU.
Depending on the path design this should be set at a level
which will allow head room for the local Tx power, while
ensuring an adequate fade margin.
