Chapter 2. Eclipse Edge System Description
VLAN mode supports two separate LAN connections. Ports 1 and 2 are multiplexed
to C1 to provide two virtual LANs (VLANs 1 and 2). Internal VLAN port tagging of
frames provides correct end-to-end matching of port traffic over the link. Tags are
removed before port egress at the far end.

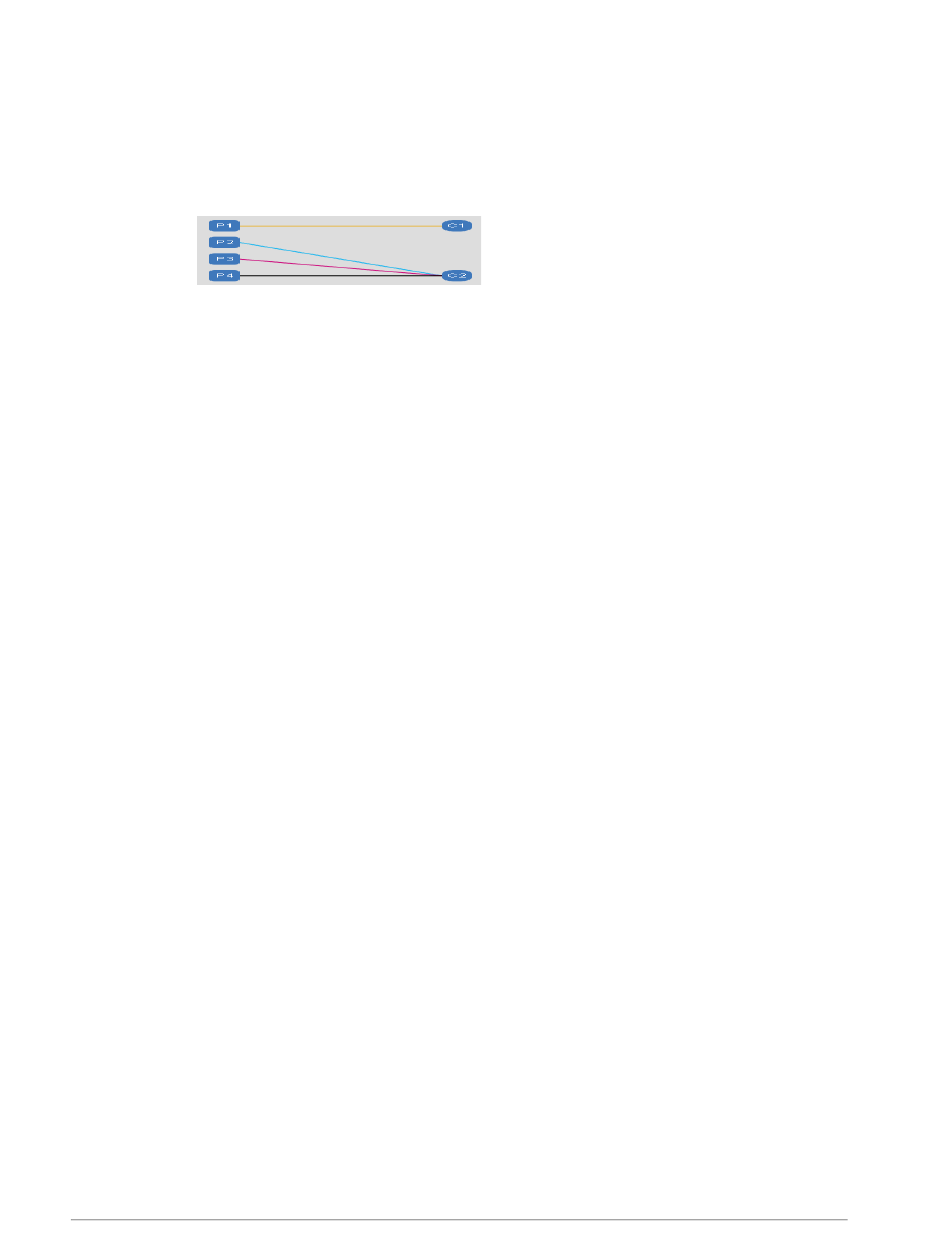

Figure 2-7.

Transport Channel Configuration

Selection is provided for channel capacity on a per-channel basis.
• Channel capacity is selected in multiples of 2 Mbps.
• The channel supports a maximum 32 Mbps.

Basic Port Settings

Customer selection/confirmation is provided for the following port parameters:
Enabled
A port must be enabled to allow traffic flow.
Name
A port name or other relevant port data can be entered.
Speed-Duplex
Provides selection per-port of auto or manual settings for half or full duplex
operation on speeds of 10 Mbps or 100 Mbps. In auto, a connection is set based on
the traffic type detected.
Interface Type
Provides selection per port of auto or manual settings for the interface type; Mdi or
MdiX (straight or cross-over respectively).
Port Up
Indicates that a valid Ethernet connection with valid Ethernet framing has been
detected.
Resolved
Indicates a port connection has been resolved for an auto speed-duplex setting.

Priority Mapping

Port and traffic prioritization is determined using priority options of low, medium
low, medium high, and high. Prioritization is 8:4:2:1 weighted where, for example, 8
high priority packets are sent for every one low priority packet. This ensures that even
low priority traffic gets some bandwidth when link capacity is over-subscribed.
12
VLAN Mode Port and Channel Assignment
