Typical Throughputs

The following Layer 2 (RFC 2544) throughputs are typical for a 32 Mbps link
configuration:
Frame Size bytes
64
126
256
512
1024
1280
1518
The use of IFG and Preamble stripping and re-insertion across the link ensure there
is no appreciable throughput drop-off for smaller frame sizes.

Modes of Operation

Two operational modes are supported, Transparent and VLAN. These define the
connection fabric between the switch ports and channels.
Transparent Mode
This is the default, broadcast mode. It supports two customer connections, P1 and P2,
with bridging between and to the transport channel C1.

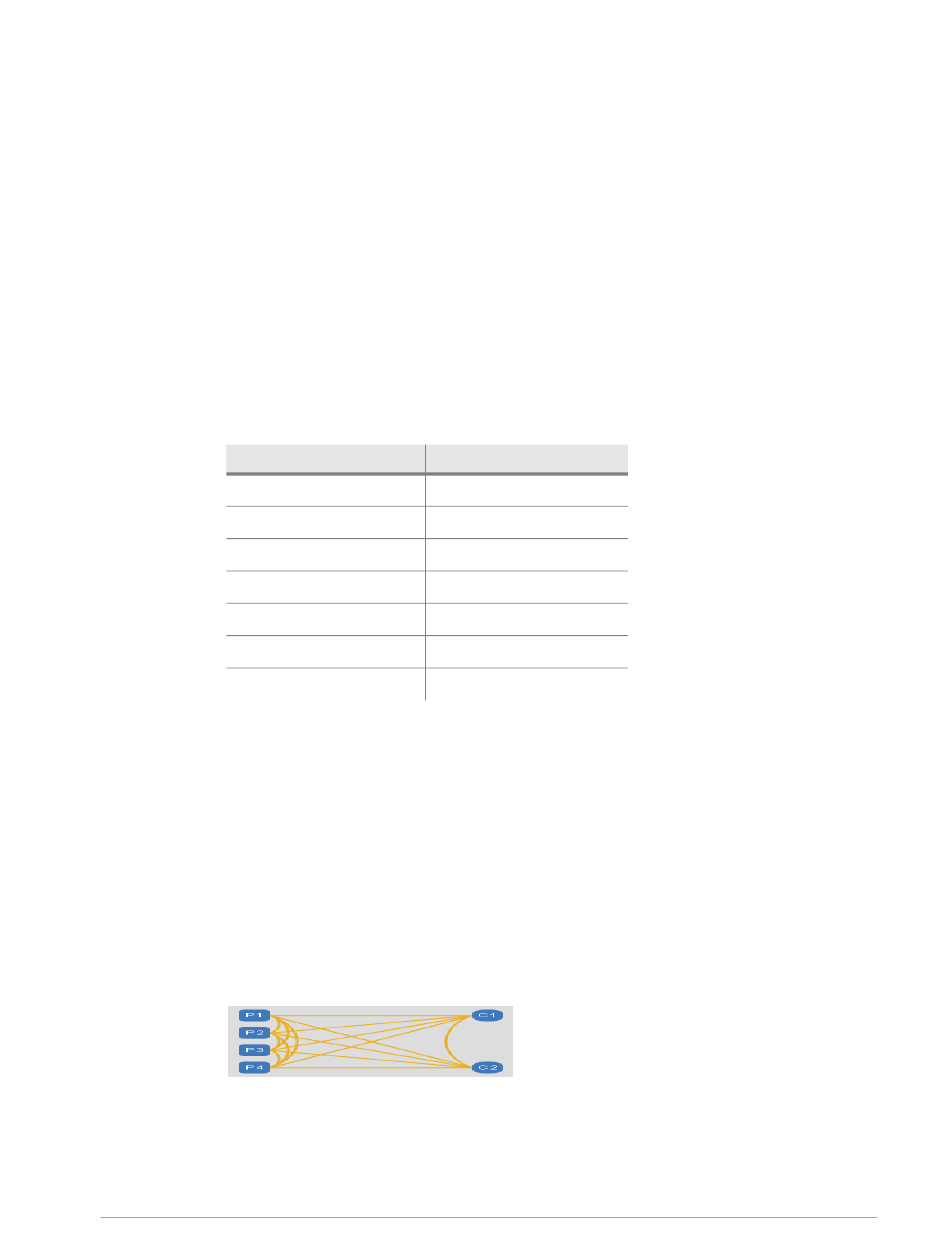

Figure 2-6.
VLAN Mode
260-668080-001 Rev 002 March 2013
Throughput Mbps
29.6
30.9
30.3
32.2
32.1
32.2
32.2
Transparent Mode Port and Channel Assignment
