Event Browser

The Event Browser screen provides a real time view of all events, both active and
cleared, for the terminal. The browser has a nominal capacity of 5000 events, after
which time new events replace earliest events on a one-for-one basis.
The screen opens to an event listing, which scrolls down to the latest event, unless
auto-scroll is turned off.

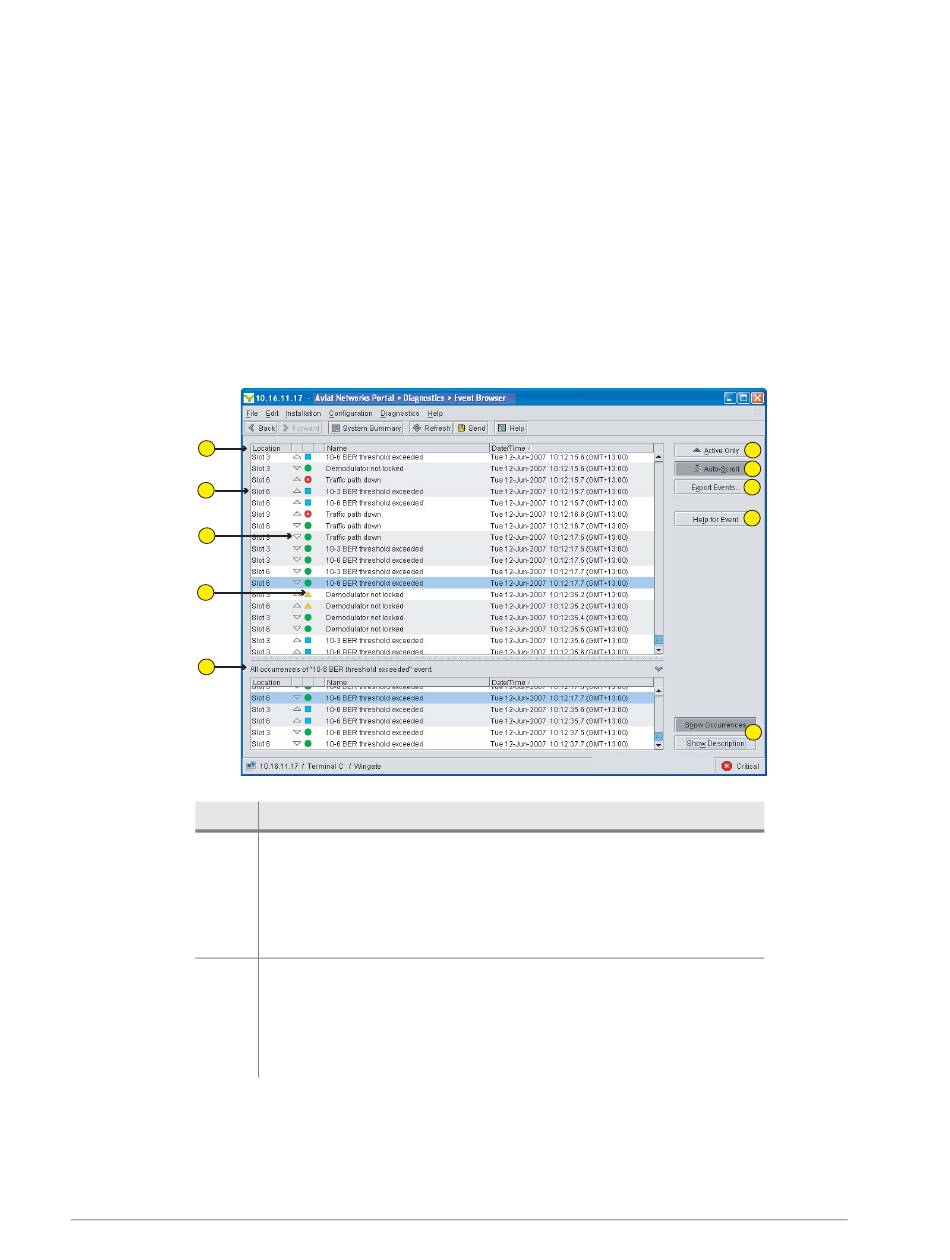

Figure 4-26.
1
2
3
4
5
Item
1
2
84
Figure 4-26
Example Event Browser Screen
Description
Event Box. Provides a date/time-stamped listing for each new
event (alarm and informational). Events are shown in true
chronological order with time-stamping to a 0.1 second
resolution. Indicators assist with identification of event source
(plug-in location), whether it is a new or cleared event, and the
severity and status of the event.
Triangles indicate event status:
• Black triangle = Event active
• White triangle pointing up = Event was raised
• White triangle pointing down = Event was cleared
shows an example screen.
