Item
3
260-668080-001 Rev 002 March 2013
Description

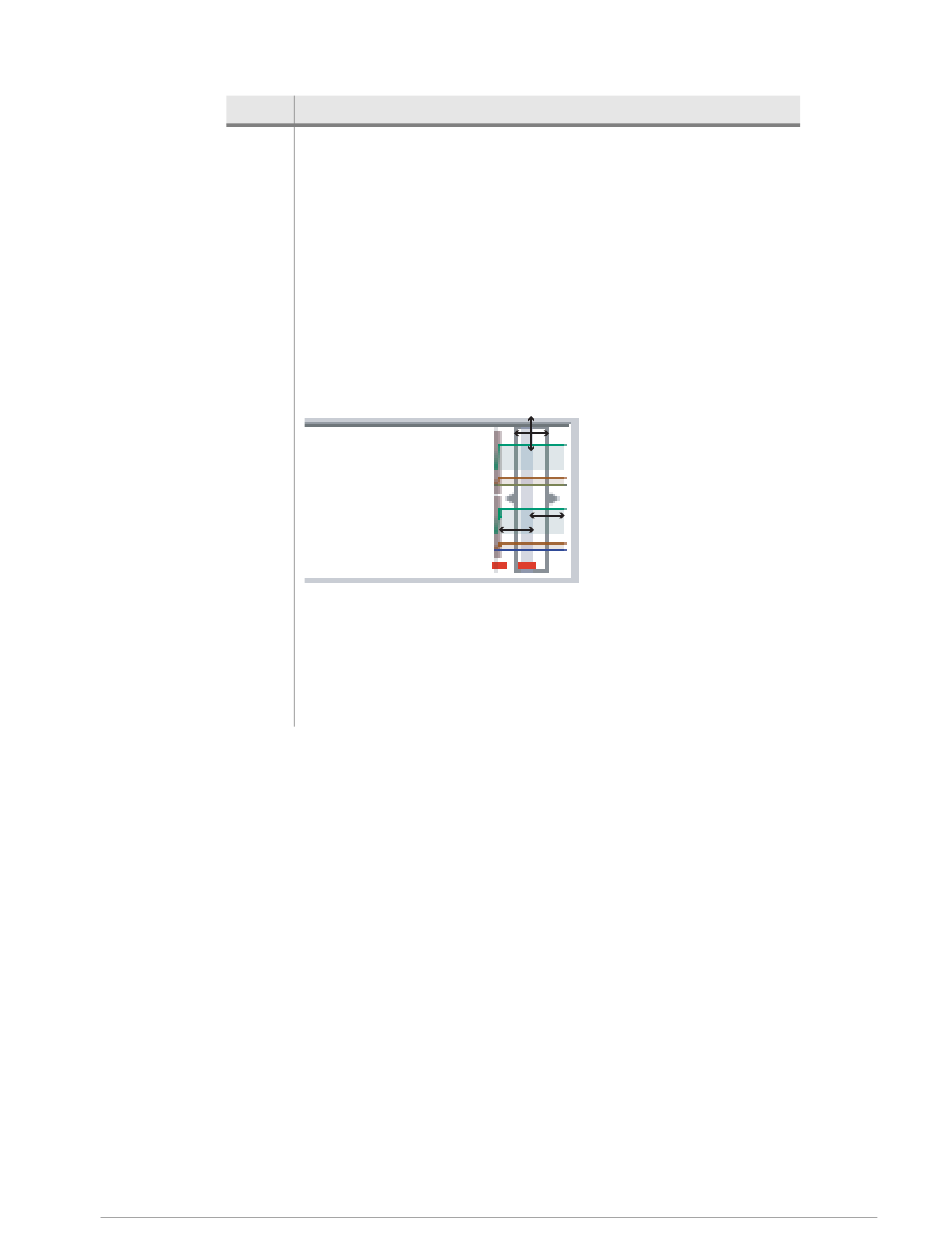

Summary data window. The most recent 15 minute data bins
(up to 7 days) are default displayed. The same collection
period is also displayed in the Detail window.
The most recent data is displayed to the right side of the
window.
• Use your mouse to click and drag a (shorter) period of time
(reduced number of bins) for display within the Detail
window.
• The edges (start and finish times) can be separately set.
• The selected period (number of bins) can be moved within
the widow by dragging the crossed arrow icon, which is
displayed when your mouse is moved to the top of the
selected period.
• Alternatively, use the use the buttons above the Detail
window. Left-side buttons move the start, right-side buttons
move the end, and the middle buttons move the whole
range.
• The selected start and end date/times are displayed to each
side of the buttons.
