Installing the ODUspe
The ODUspe is attached to its antenna using a mounting plate supplied with each
ODU. See
antenna, and the four bolts (item 9) fix the ODUspe to the plate. Installation
instructions are provided with each ODU.
Figure 3-1.
Figure 3-2
Figure 3-2.
260-668080-001 Rev 002 March 2013
Figure 3-1. The six countersunk screws (item 8) fix the plate to the

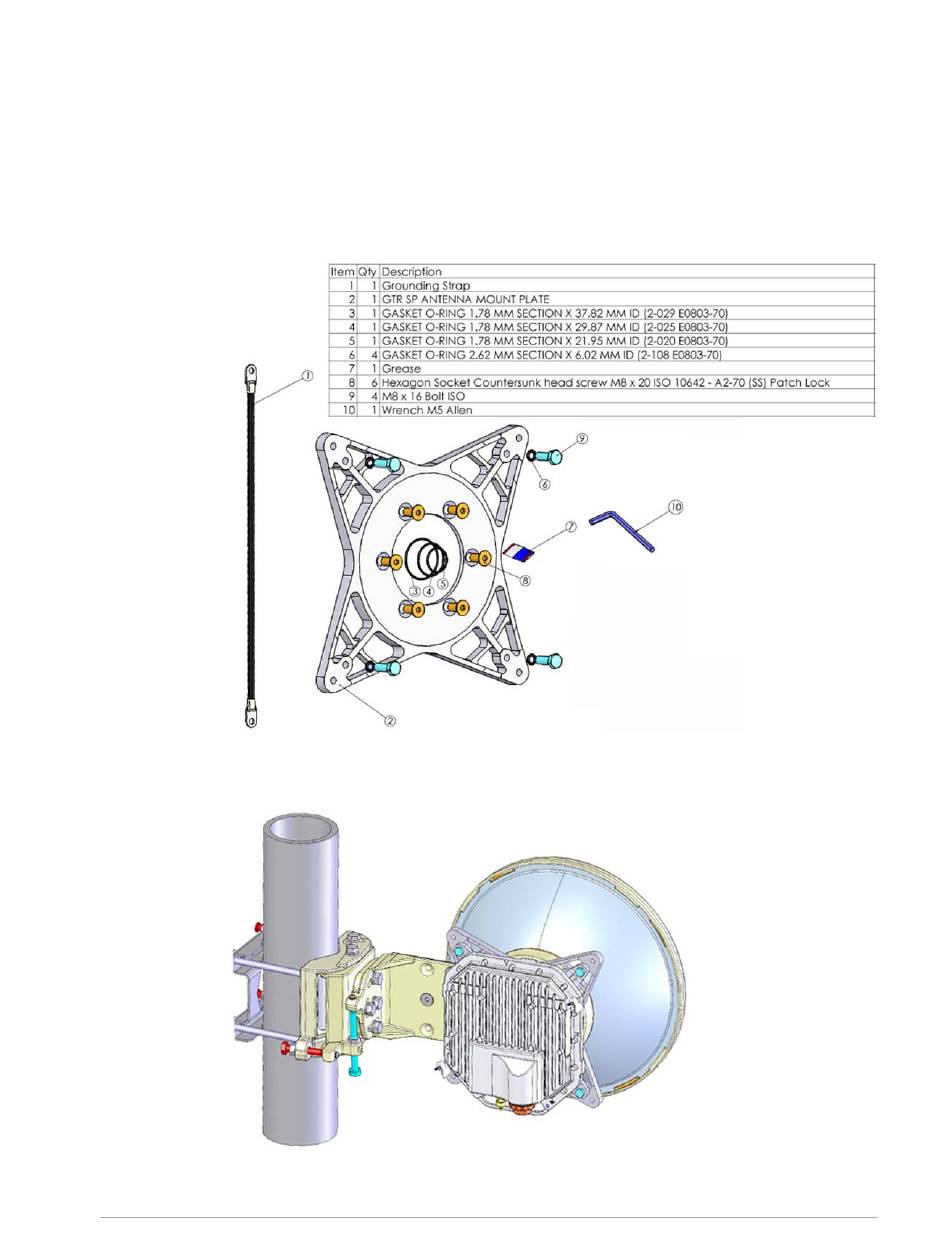

ODUspe Mounting Assembly Kit
shows an ODUspe fitted to its antenna.
ODU fitted to Andrew Mounting Collar
