Chapter 4. Eclipse Edge Configuration and Diagnostics
The Help Menu provides access to:
• Eclipse Edge Online User Manual or Portal.
• This is a web-based (html) online copy of the user manual. The Portal option is a
subset of the Edge manual - the manual is opened to the start of the Portal
chapter.
• The installer for the online help is included with the installer for the Portal
application.
• Once opened any topic can be selected and viewed using content listing or search
options.
• Context Help. Eclipse online help is opened to a page in the user manual that
corresponds to the currently viewed Portal screen. Most Portal screens support
Context Help.
• Contact details for Aviat Networks help desks.
• Version data for Portal.
Refresh and Send
• Refresh sends a read request to the radio to provide a configuration update to the
current saved configuration. In situations where a configuration amendment has
caused an unwanted change, clicking Refresh provides a rollback to the saved
configuration.
• Send sends a new configuration to the radio, to be written into the on-board flash.
When no changes requiring a Send command have been made, the flashcard icon
within the Send button will be uncolored. When a change has been made which
requires a Send command, to confirm the change the flashcard icon will first flash
yellow three times and then stay yellow until clicked. When clicked, a Send window
with a cancel option is displayed and will remain open until the send process has
been completed.

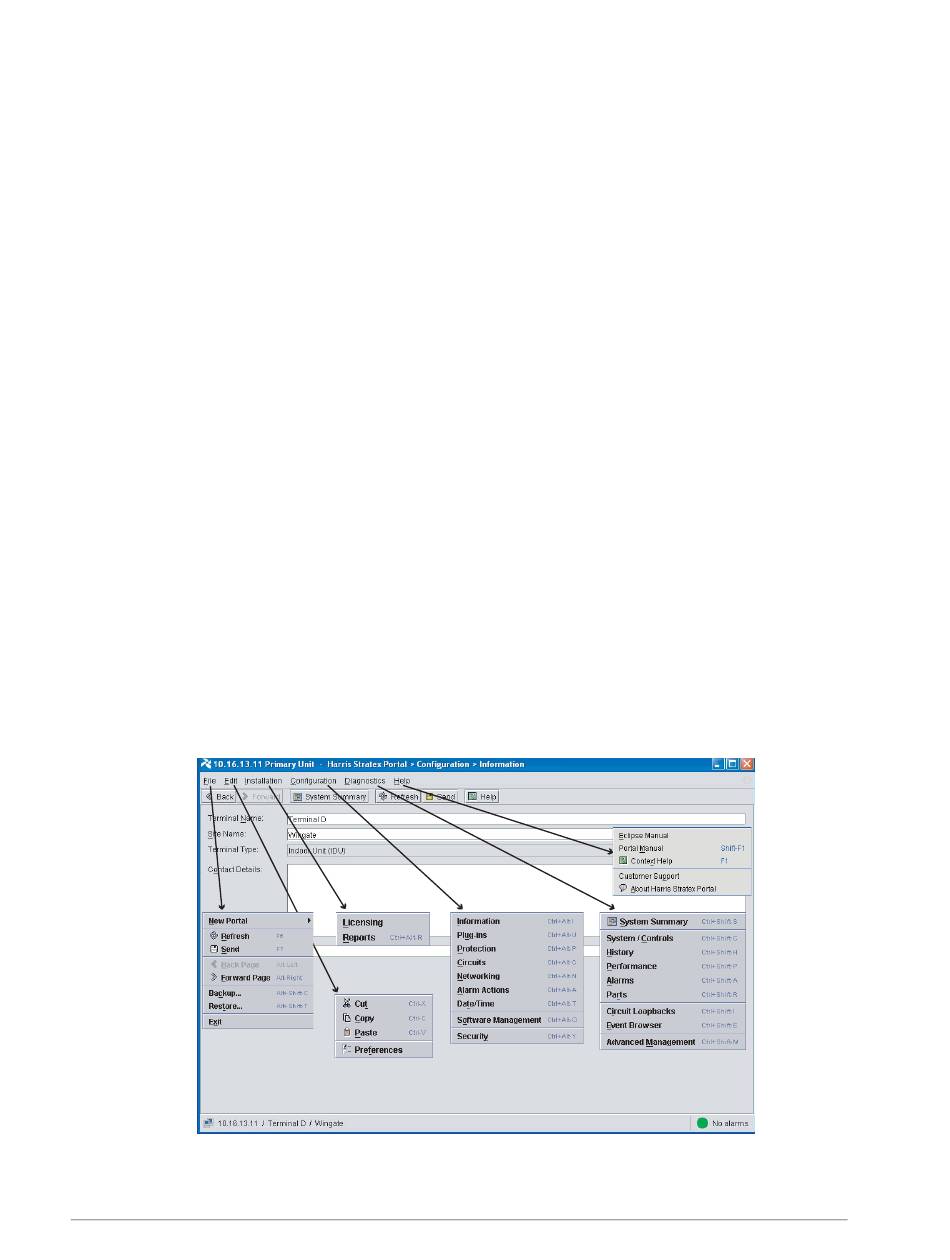

Figure 4-4
Figure 4-4.
28
shows the menu-bar menus for an Eclipse terminal.
