Touch Screen Display - Icom IC-705 Basic Manual

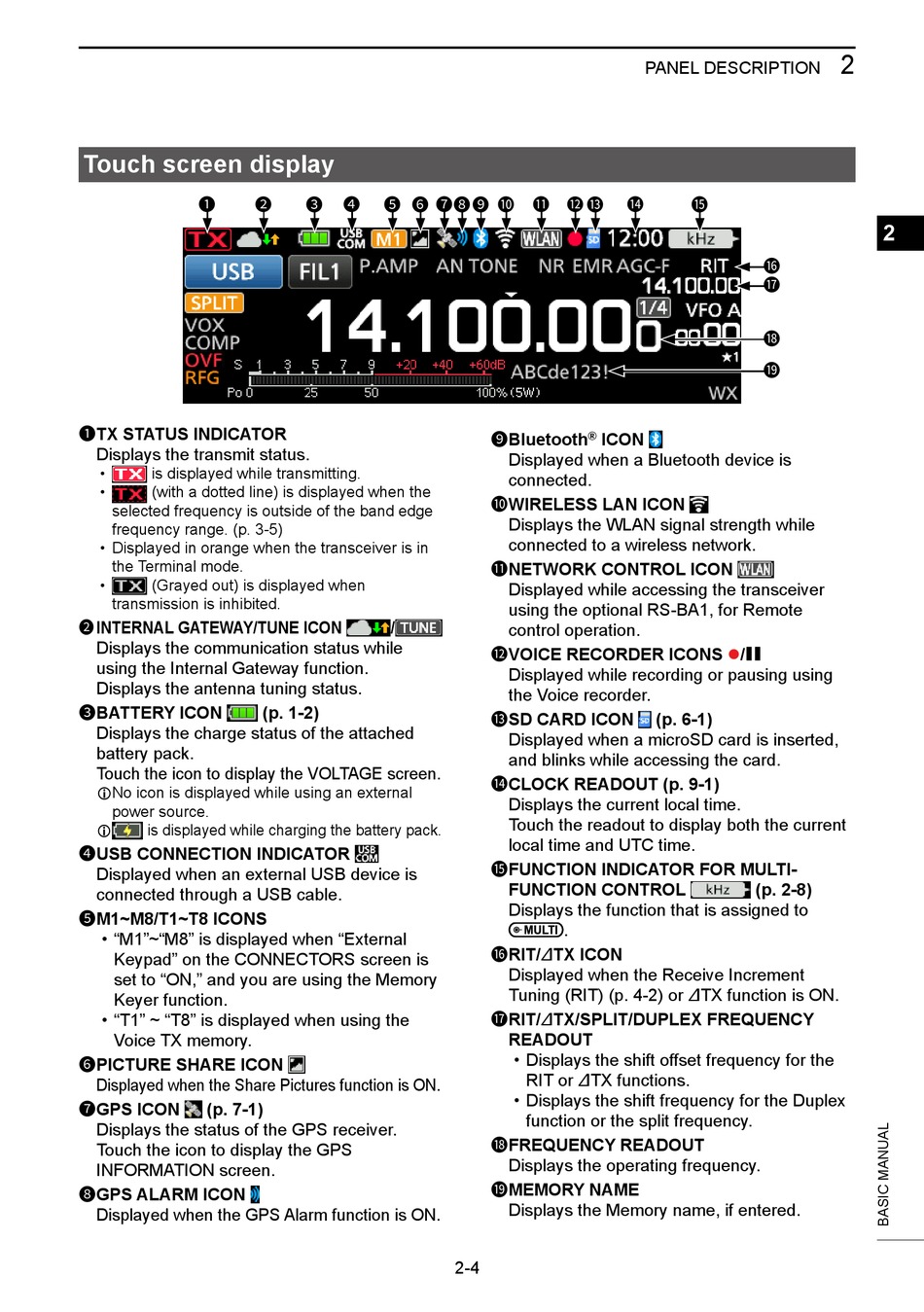

Touch screen display

1
1 T X STATUS INDICATOR
Displays the transmit status.
• is displayed while transmitting.
• (with a dotted line) is displayed when the
selected frequency is outside of the band edge
frequency range. (p. 3-5)
• Displayed in orange when the transceiver is in
the Terminal mode.
• (Grayed out) is displayed when
transmission is inhibited.
2 INTERNAL GATEWAY/TUNE ICON
Displays the communication status while
using the Internal Gateway function.
Displays the antenna tuning status.
3 B ATTERY ICON
Displays the charge status of the attached
battery pack.
Touch the icon to display the VOLTAGE screen.
LNo icon is displayed while using an external
power source.
is displayed while charging the battery pack.
L
4 U SB CONNECTION INDICATOR
Displayed when an external USB device is
connected through a USB cable.
5 M 1~M8/T1~T8 ICONS
• "M1"~"M8" is displayed when "External
Keypad" on the CONNECTORS screen is
set to "ON," and you are using the Memory
Keyer function.
• "T1" ~ "T8" is displayed when using the
Voice TX memory.
6 P ICTURE SHARE ICON
Displayed when the Share Pictures function is ON.
7 G PS ICON (p. 7-1)
Displays the status of the GPS receiver.
Touch the icon to display the GPS
INFORMATION screen.
8 G PS ALARM ICON
Displayed when the GPS Alarm function is ON.
2 3 4 5 6 7 8 9 10 11 12 13 14
/
(p. 1-2)
9 B luetooth ® ICON
Displayed when a Bluetooth device is
connected.
10 W IRELESS LAN ICON
Displays the WLAN signal strength while
connected to a wireless network.
11 N ETWORK CONTROL ICON
Displayed while accessing the transceiver
using the optional RS-BA1, for Remote
control operation.
12 V OICE RECORDER ICONS z/〓
Displayed while recording or pausing using
the Voice recorder.
13 S D CARD ICON
Displayed when a microSD card is inserted,
and blinks while accessing the card.
14 C LOCK READOUT (p. 9-1)
Displays the current local time.
Touch the readout to display both the current
local time and UTC time.
15 F UNCTION INDICATOR FOR MULTI-
FUNCTION CONTROL
Displays the function that is assigned to
.
16 R IT/∂TX ICON
Displayed when the Receive Increment
Tuning (RIT) (p. 4-2) or ∂TX function is ON.
17 R IT/∂TX/SPLIT/DUPLEX FREQUENCY
READOUT
• Displays the shift offset frequency for the
RIT or ∂TX functions.
• Displays the shift frequency for the Duplex
function or the split frequency.
18 F REQUENCY READOUT
Displays the operating frequency.
19 M EMORY NAME
Displays the Memory name, if entered.
2-4
PANEL DESCRIPTION
15
16
17
18
19
(p. 6-1)
(p. 2-8)
2
2
