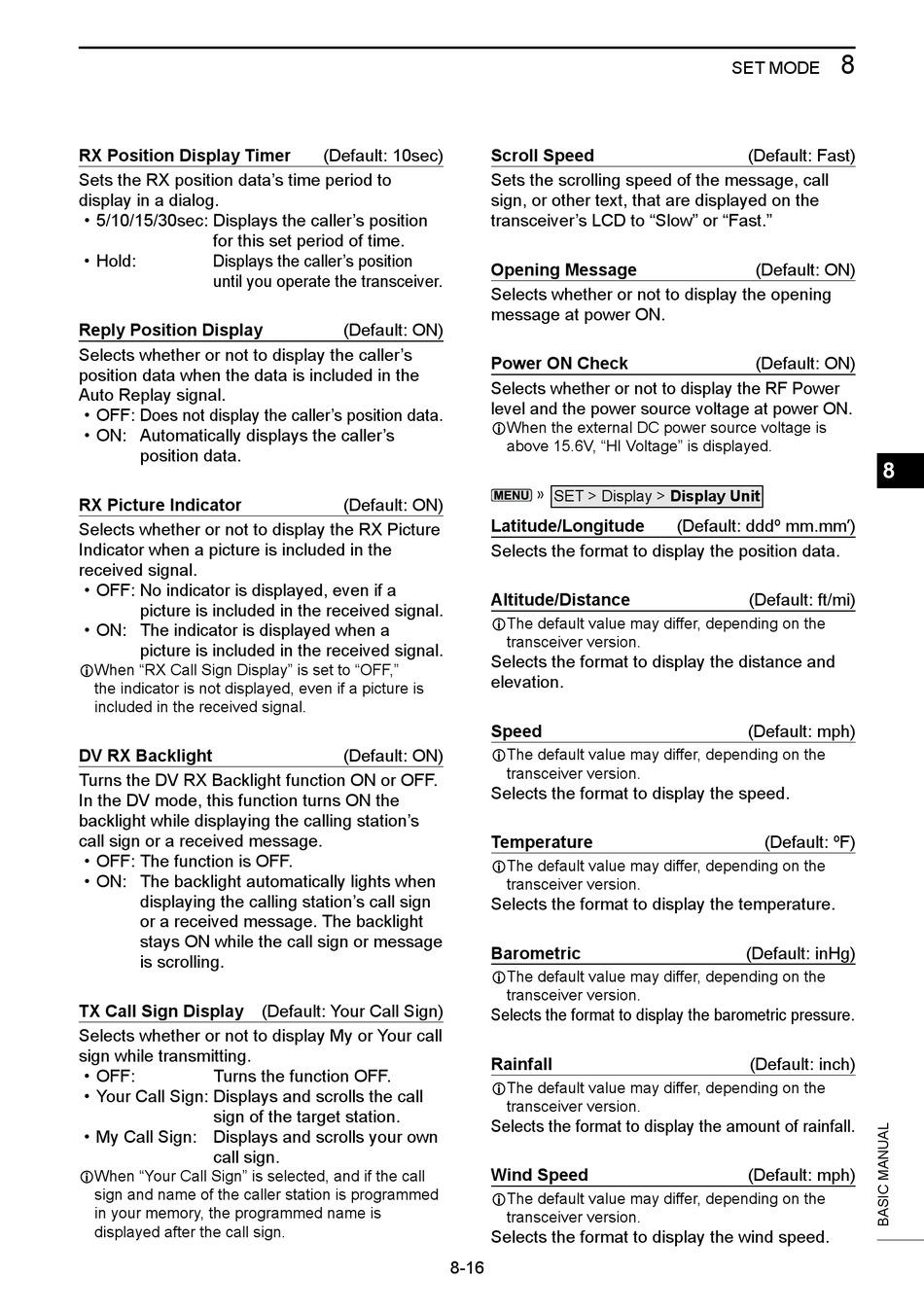

RX Position Display Timer

Sets the RX position data's time period to
display in a dialog.
• 5/10/15/30sec: Displays the caller's position
for this set period of time.
• Hold: Displays the caller's position
until you operate the transceiver.

Reply Position Display

Selects whether or not to display the caller's
position data when the data is included in the
Auto Replay signal.
• OFF: Does not display the caller's position data.
• ON: Automatically displays the caller's
position data.

RX Picture Indicator

Selects whether or not to display the RX Picture
Indicator when a picture is included in the
received signal.
• OFF: No indicator is displayed, even if a
picture is included in the received signal.
• ON: The indicator is displayed when a
picture is included in the received signal.
LWhen "RX Call Sign Display" is set to "OFF,"
the indicator is not displayed, even if a picture is
included in the received signal.

DV RX Backlight

Turns the DV RX Backlight function ON or OFF.
In the DV mode, this function turns ON the
backlight while displaying the calling station's
call sign or a received message.
• OFF: The function is OFF.
• ON: The backlight automatically lights when
displaying the calling station's call sign
or a received message. The backlight
stays ON while the call sign or message
is scrolling.
TX Call Sign Display (Default: Your Call Sign)
Selects whether or not to display My or Your call
sign while transmitting.
• OFF: Turns the function OFF.
• Your Call Sign: Displays and scrolls the call
sign of the target station.
• My Call Sign: Displays and scrolls your own
call sign.
LWhen "Your Call Sign" is selected, and if the call
sign and name of the caller station is programmed
in your memory, the programmed name is
displayed after the call sign.
(Default: 10sec) Scroll Speed
Sets the scrolling speed of the message, call
sign, or other text, that are displayed on the
transceiver's LCD to "Slow" or "Fast."
Opening Message
Selects whether or not to display the opening
message at power ON.
(Default: ON)
Power ON Check
Selects whether or not to display the RF Power
level and the power source voltage at power ON.
LWhen the external DC power source voltage is
(Default: ON)
Latitude/Longitude
Selects the format to display the position data.
Altitude/Distance
LThe default value may differ, depending on the
Selects the format to display the distance and
elevation.
Speed
(Default: ON) LThe default value may differ, depending on the
Selects the format to display the speed.
Temperature
LThe default value may differ, depending on the
Selects the format to display the temperature.
Barometric
LThe default value may differ, depending on the
Selects the format to display the barometric pressure.
Rainfall
LThe default value may differ, depending on the
Selects the format to display the amount of rainfall.
Wind Speed
LThe default value may differ, depending on the
Selects the format to display the wind speed.
8-16
above 15.6V, "HI Voltage" is displayed.
» SET > Display > Display Unit
(Default: dddº mm.mm')
transceiver version.
transceiver version.
transceiver version.
transceiver version.
transceiver version.
transceiver version.
8
SET MODE
(Default: Fast)
(Default: ON)
(Default: ON)
8
(Default: ft/mi)
(Default: mph)
(Default: ºF)
(Default: inHg)
(Default: inch)
(Default: mph)
