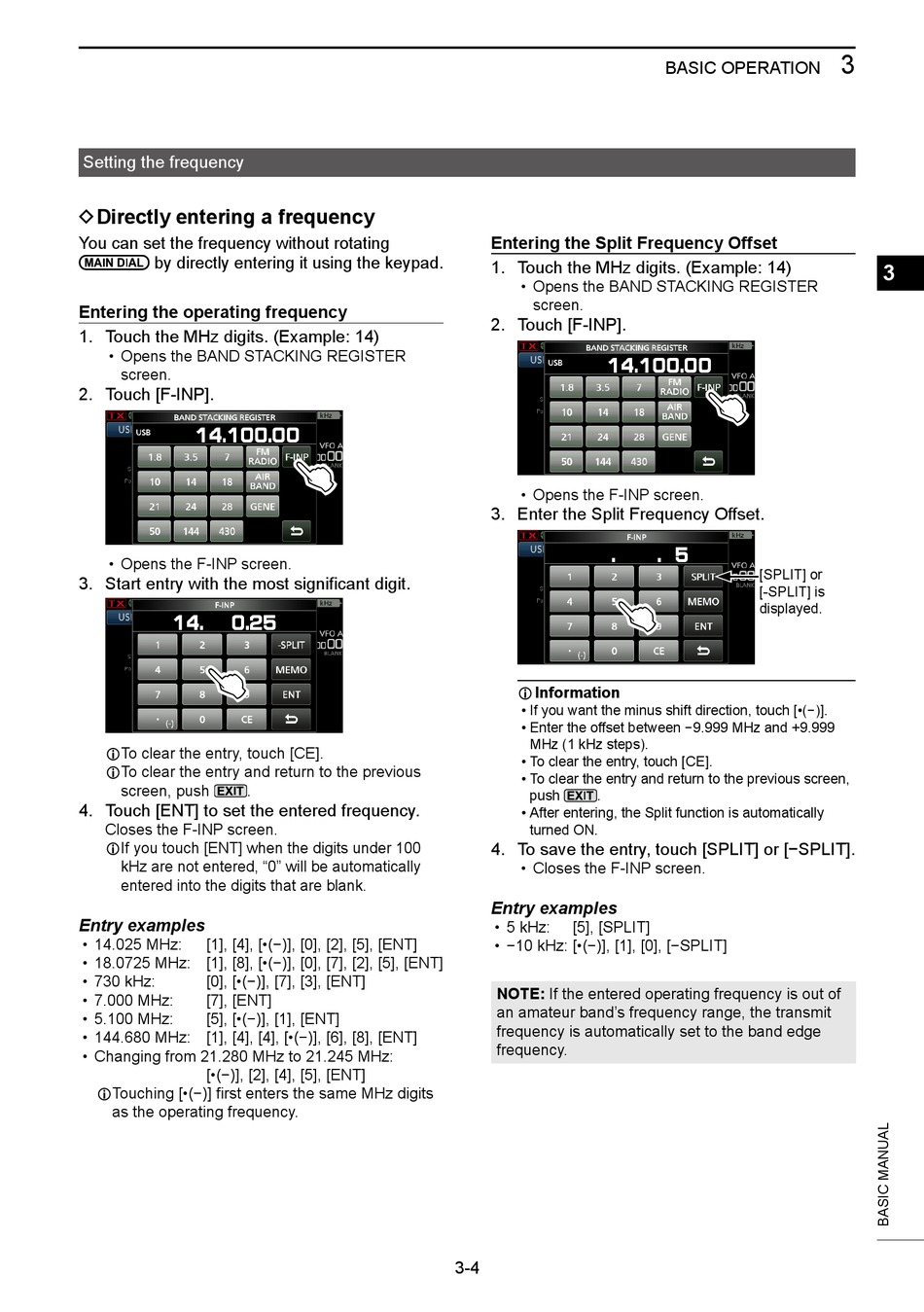

Setting the frequency
DDirectly entering a frequency
You can set the frequency without rotating
by directly entering it using the keypad.

Entering the operating frequency

1. Touch the MHz digits. (Example: 14)
• Opens the BAND STACKING REGISTER
screen.
2. Touch [F-INP].
• Opens the F-INP screen.
3. Start entry with the most significant digit.
LTo clear the entry, touch [CE].
LTo clear the entry and return to the previous
screen, push .
4. Touch [ENT] to set the entered frequency.
Closes the F-INP screen.
LIf you touch [ENT] when the digits under 100
kHz are not entered, "0" will be automatically
entered into the digits that are blank.
Entry examples
• 14.025 MHz: [1], [4], [•(−)], [0], [2], [5], [ENT]
• 18.0725 MHz: [1], [8], [•(−)], [0], [7], [2], [5], [ENT]
• 730 kHz: [0], [•(−)], [7], [3], [ENT]
• 7.000 MHz: [7], [ENT]
• 5.100 MHz: [5], [•(−)], [1], [ENT]
• 144.680 MHz: [1], [4], [4], [•(−)], [6], [8], [ENT]
• Changing from 21.280 MHz to 21.245 MHz:
[•(−)], [2], [4], [5], [ENT]
LTouching [•(−)] first enters the same MHz digits
as the operating frequency.

Entering the Split Frequency Offset

1. Touch the MHz digits. (Example: 14)
• Opens the BAND STACKING REGISTER
screen.
2. Touch [F-INP].
• Opens the F-INP screen.
3. Enter the Split Frequency Offset.
L Information
• If you want the minus shift direction, touch [•(−)].
• Enter the offset between −9.999 MHz and +9.999
MHz (1 kHz steps).
• To clear the entry, touch [CE].
• To clear the entry and return to the previous screen,
push .
• After entering, the Split function is automatically
turned ON.
4. To save the entry, touch [SPLIT] or [−SPLIT].
• Closes the F-INP screen.
Entry examples
• 5 kHz: [5], [SPLIT]
• −10 kHz: [•(−)], [1], [0], [−SPLIT]
NOTE: If the entered operating frequency is out of
an amateur band's frequency range, the transmit
frequency is automatically set to the band edge
frequency.
3-4
BASIC OPERATION
[SPLIT] or
[-SPLIT] is
displayed.
