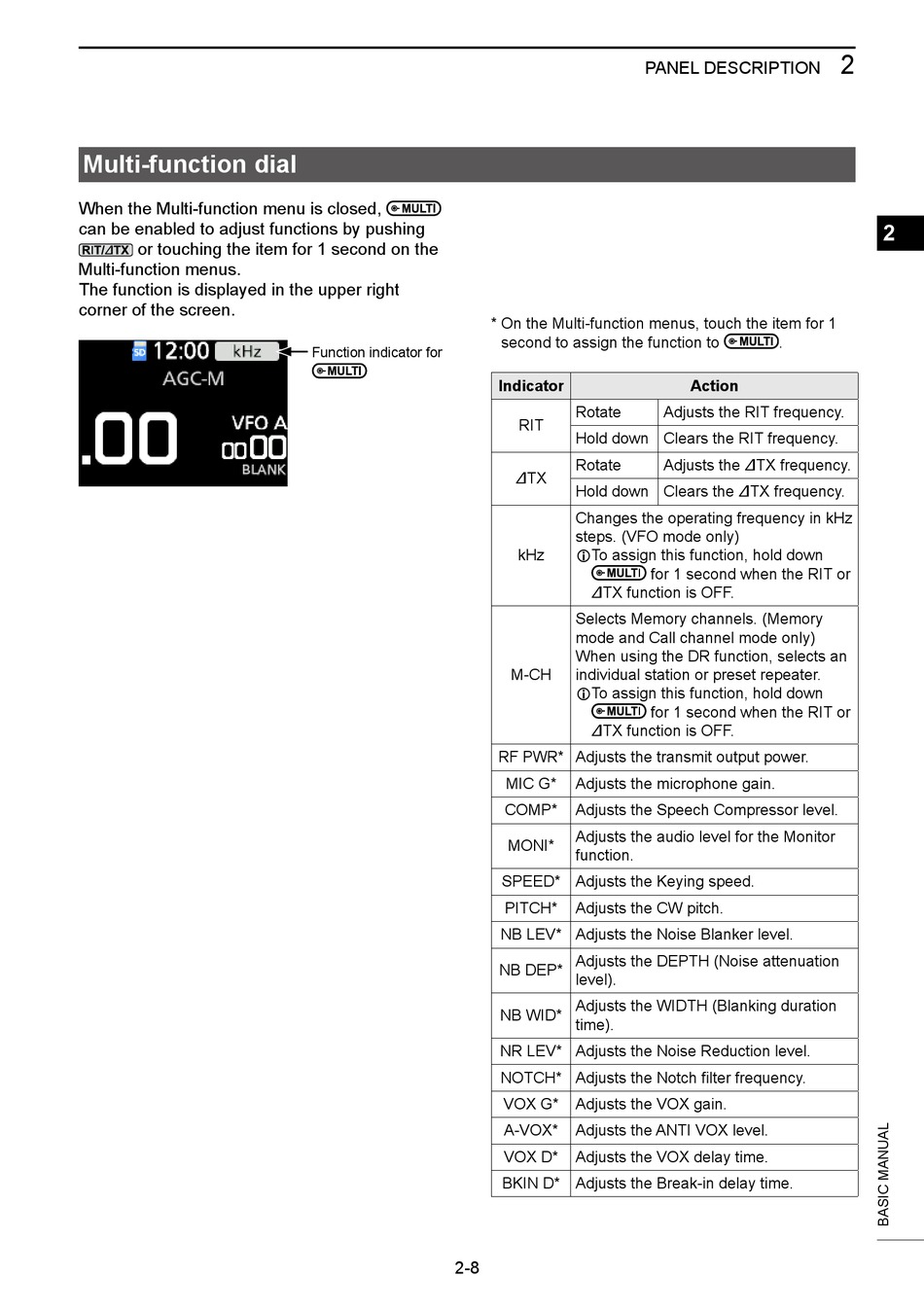

Multi-function dial

When the Multi-function menu is closed,
can be enabled to adjust functions by pushing
or touching the item for 1 second on the
Multi-function menus.
The function is displayed in the upper right
corner of the screen.
Function indicator for
2-8
PANEL DESCRIPTION
* On the Multi-function menus, touch the item for 1
second to assign the function to
Indicator
Rotate Adjusts the RIT frequency.
RIT
Hold down Clears the RIT frequency.
Rotate Adjusts the ∂TX frequency.
∂TX
Hold down Clears the ∂TX frequency.
Changes the operating frequency in kHz
steps. (VFO mode only)
kHz LTo assign this function, hold down
for 1 second when the RIT or
∂TX function is OFF.
Selects Memory channels. (Memory
mode and Call channel mode only)
When using the DR function, selects an
M-CH individual station or preset repeater.
LTo assign this function, hold down
for 1 second when the RIT or
∂TX function is OFF.
RF PWR* Adjusts the transmit output power.
MIC G* Adjusts the microphone gain.
COMP* Adjusts the Speech Compressor level.
Adjusts the audio level for the Monitor
MONI*
function.
SPEED* Adjusts the Keying speed.
PITCH* Adjusts the CW pitch.
NB LEV* Adjusts the Noise Blanker level.
Adjusts the DEPTH (Noise attenuation
NB DEP*
level).
Adjusts the WIDTH (Blanking duration
NB WID*
time).
NR LEV* Adjusts the Noise Reduction level.
NOTCH* Adjusts the Notch filter frequency.
VOX G* Adjusts the VOX gain.
A-VOX* Adjusts the ANTI VOX level.
VOX D* Adjusts the VOX delay time.
BKIN D* Adjusts the Break-in delay time.
