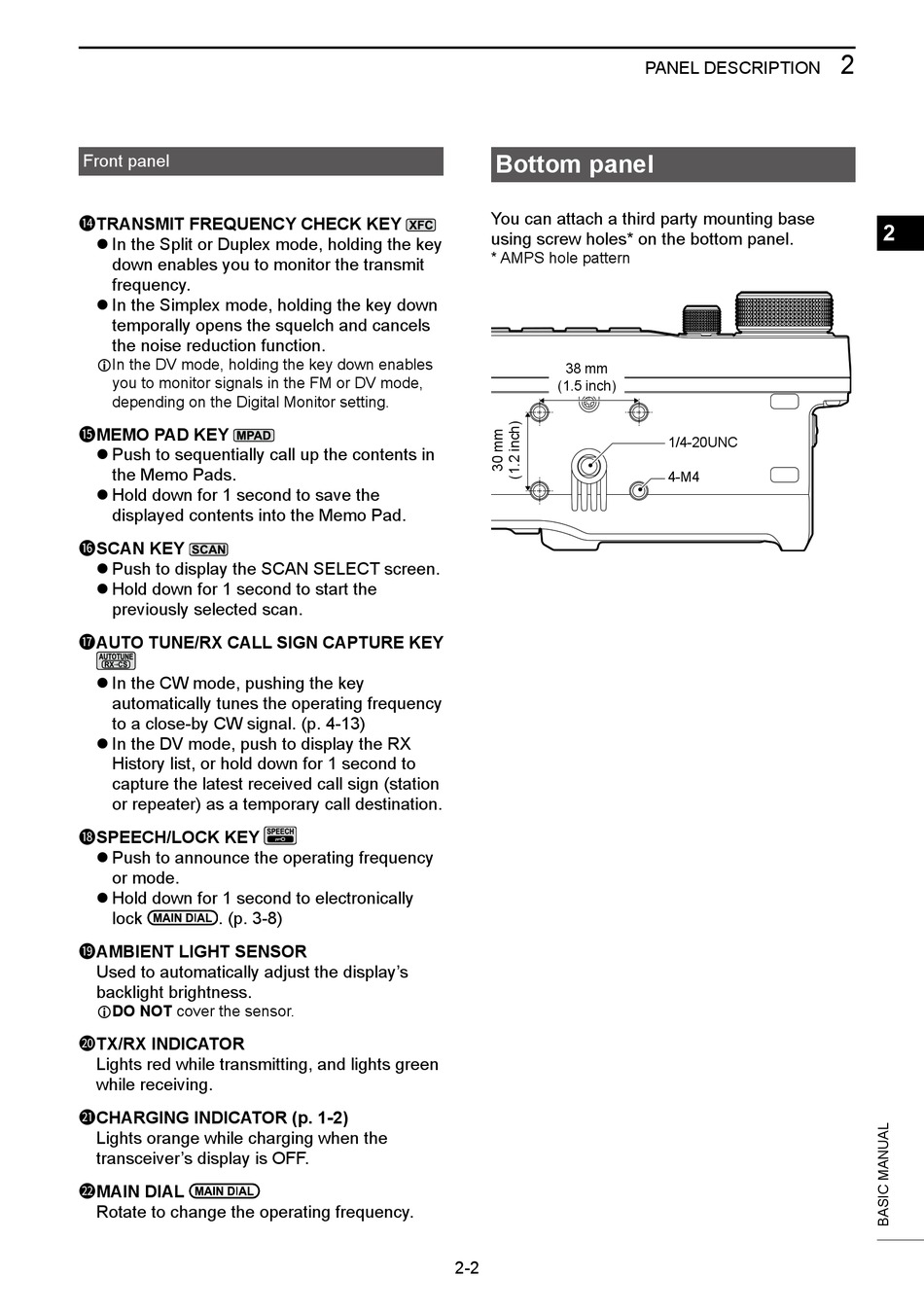

Bottom Panel - Icom IC-705 Basic Manual

Front panel
14 T RANSMIT FREQUENCY CHECK KEY
z In the Split or Duplex mode, holding the key
down enables you to monitor the transmit
frequency.
z In the Simplex mode, holding the key down
temporally opens the squelch and cancels
the noise reduction function.
LIn the DV mode, holding the key down enables
you to monitor signals in the FM or DV mode,
depending on the Digital Monitor setting.
15 M EMO PAD KEY
z Push to sequentially call up the contents in
the Memo Pads.
z Hold down for 1 second to save the
displayed contents into the Memo Pad.
16 S CAN KEY
z Push to display the SCAN SELECT screen.
z Hold down for 1 second to start the
previously selected scan.
17 A UTO TUNE/RX CALL SIGN CAPTURE KEY
z In the CW mode, pushing the key
automatically tunes the operating frequency
to a close-by CW signal. (p. 4-13)
z In the DV mode, push to display the RX
History list, or hold down for 1 second to
capture the latest received call sign (station
or repeater) as a temporary call destination.
18 S PEECH/LOCK KEY
z Push to announce the operating frequency
or mode.
z Hold down for 1 second to electronically
lock . (p. 3-8)
19 A MBIENT LIGHT SENSOR
Used to automatically adjust the display's
backlight brightness.
LDO NOT cover the sensor.
20 T X/RX INDICATOR
Lights red while transmitting, and lights green
while receiving.
21 C HARGING INDICATOR (p. 1-2)
Lights orange while charging when the
transceiver's display is OFF.
22 M AIN DIAL
Rotate to change the operating frequency.

Bottom panel

You can attach a third party mounting base
using screw holes* on the bottom panel.
* AMPS hole pattern
38 mm
(1.5 inch)
2-2
PANEL DESCRIPTION
1/4-20UNC
4-M4
