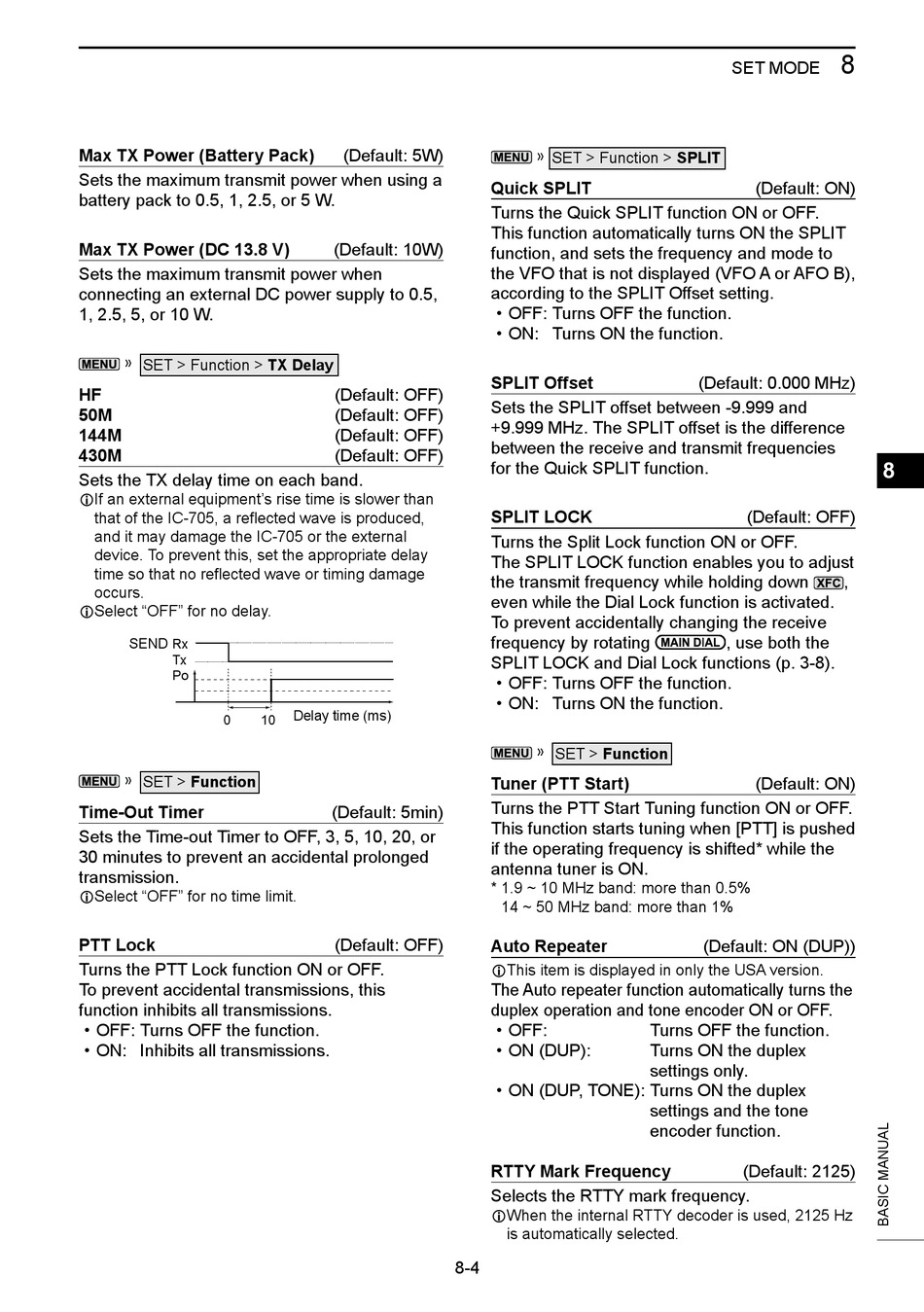

Max TX Power (Battery Pack)

Sets the maximum transmit power when using a
battery pack to 0.5, 1, 2.5, or 5 W.

Max TX Power (DC 13.8 V)

Sets the maximum transmit power when
connecting an external DC power supply to 0.5,
1, 2.5, 5, or 10 W.
» SET > Function > TX Delay
HF
50M
144M
430M
Sets the TX delay time on each band.
LIf an external equipment's rise time is slower than
that of the IC-705, a reflected wave is produced,
and it may damage the IC-705 or the external
device. To prevent this, set the appropriate delay
time so that no reflected wave or timing damage
occurs.
LSelect "OFF" for no delay.
SEND
Rx
Tx
Po
0
» SET > Function

Time-Out Timer

Sets the Time-out Timer to OFF, 3, 5, 10, 20, or
30 minutes to prevent an accidental prolonged
transmission.
LSelect "OFF" for no time limit.

PTT Lock

Turns the PTT Lock function ON or OFF.
To prevent accidental transmissions, this
function inhibits all transmissions.
• OFF: Turns OFF the function.
• ON: Inhibits all transmissions.
(Default: 5W)
(Default: 10W)
(Default: OFF)
(Default: OFF)
(Default: OFF)
(Default: OFF)
Delay time (ms)
10
(Default: 5min)
(Default: OFF)
» SET > Function > SPLIT
Quick SPLIT
Turns the Quick SPLIT function ON or OFF.
This function automatically turns ON the SPLIT
function, and sets the frequency and mode to
the VFO that is not displayed (VFO A or AFO B),
according to the SPLIT Offset setting.
• OFF: Turns OFF the function.
• ON: Turns ON the function.
SPLIT Offset
Sets the SPLIT offset between -9.999 and
+9.999 MHz. The SPLIT offset is the difference
between the receive and transmit frequencies
for the Quick SPLIT function.
SPLIT LOCK
Turns the Split Lock function ON or OFF.
The SPLIT LOCK function enables you to adjust
the transmit frequency while holding down
even while the Dial Lock function is activated.
To prevent accidentally changing the receive
frequency by rotating
SPLIT LOCK and Dial Lock functions (p. 3-8).
• OFF: Turns OFF the function.
• ON: Turns ON the function.
» SET > Function
Tuner (PTT Start)
Turns the PTT Start Tuning function ON or OFF.
This function starts tuning when [PTT] is pushed
if the operating frequency is shifted* while the
antenna tuner is ON.
* 1.9 ~ 10 MHz band: more than 0.5%
14 ~ 50 MHz band: more than 1%
Auto Repeater
LThis item is displayed in only the USA version.
The Auto repeater function automatically turns the
duplex operation and tone encoder ON or OFF.
• OFF:
• ON (DUP):
• ON (DUP, TONE): Turns ON the duplex
RTTY Mark Frequency
Selects the RTTY mark frequency.
LWhen the internal RTTY decoder is used, 2125 Hz
is automatically selected.
8-4
SET MODE
(Default: ON)
(Default: 0.000 MHz)
(Default: OFF)
, use both the
(Default: ON)
(Default: ON (DUP))
Turns OFF the function.
Turns ON the duplex
settings only.
settings and the tone
encoder function.
(Default: 2125)
