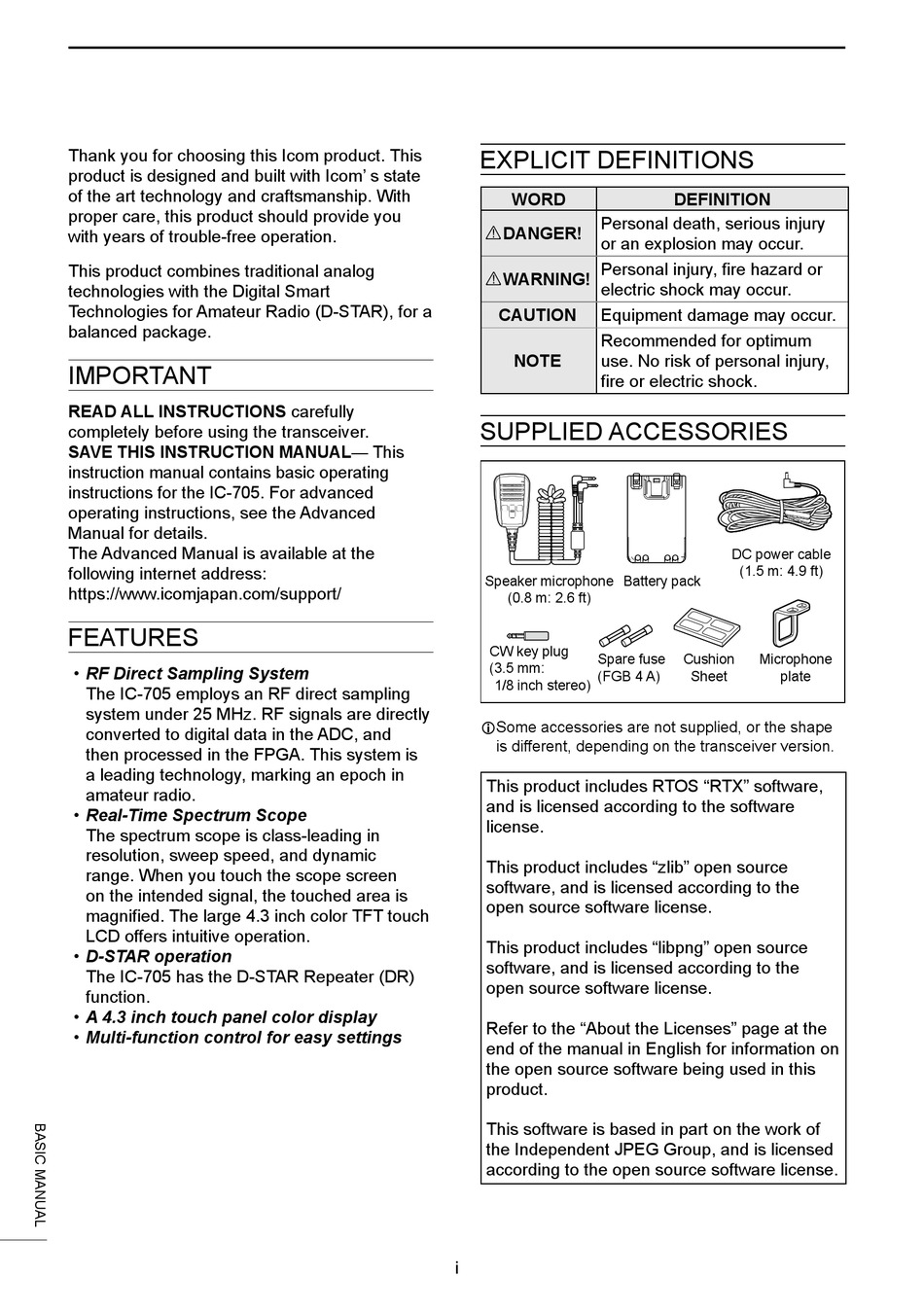

Thank you for choosing this Icom product. This
product is designed and built with Icom' s state
of the art technology and craftsmanship. With
proper care, this product should provide you
with years of trouble-free operation.
This product combines traditional analog
technologies with the Digital Smart
Technologies for Amateur Radio (D-STAR), for a
balanced package.
IMPORTANT
READ ALL INSTRUCTIONS carefully
completely before using the transceiver.
SAVE THIS INSTRUCTION MANUAL— This
instruction manual contains basic operating
instructions for the IC-705. For advanced
operating instructions, see the Advanced
Manual for details.
The Advanced Manual is available at the
following internet address:
https://www.icomjapan.com/support/

FEATURES

• RF Direct Sampling System
The IC-705 employs an RF direct sampling
system under 25 MHz. RF signals are directly
converted to digital data in the ADC, and
then processed in the FPGA. This system is
a leading technology, marking an epoch in
amateur radio.
• Real-Time Spectrum Scope
The spectrum scope is class-leading in
resolution, sweep speed, and dynamic
range. When you touch the scope screen
on the intended signal, the touched area is
magnified. The large 4.3 inch color TFT touch
LCD offers intuitive operation.
• D-STAR operation
The IC-705 has the D-STAR Repeater (DR)
function.
• A 4.3 inch touch panel color display
• Multi-function control for easy settings

EXPLICIT DEFINITIONS

WORD
Personal death, serious injury
RDANGER!
or an explosion may occur.
Personal injury, fire hazard or
RWARNING!
electric shock may occur.
CAUTION Equipment damage may occur.
Recommended for optimum
NOTE use. No risk of personal injury,
fire or electric shock.

SUPPLIED ACCESSORIES

Speaker microphone Battery pack
(0.8 m: 2.6 ft)
CW key plug
Spare fuse
( 3.5 mm:
(FGB 4 A)
1/8 inch stereo)
LSome accessories are not supplied, or the shape
is different, depending on the transceiver version.
This product includes RTOS "RTX" software,
and is licensed according to the software
license.
This product includes "zlib" open source
software, and is licensed according to the
open source software license.
This product includes "libpng" open source
software, and is licensed according to the
open source software license.
Refer to the "About the Licenses" page at the
end of the manual in English for information on
the open source software being used in this
product.
This software is based in part on the work of
the Independent JPEG Group, and is licensed
according to the open source software license.
i
DEFINITION
DC power cable
(1.5 m: 4.9 ft)
Cushion Microphone
Sheet plate
