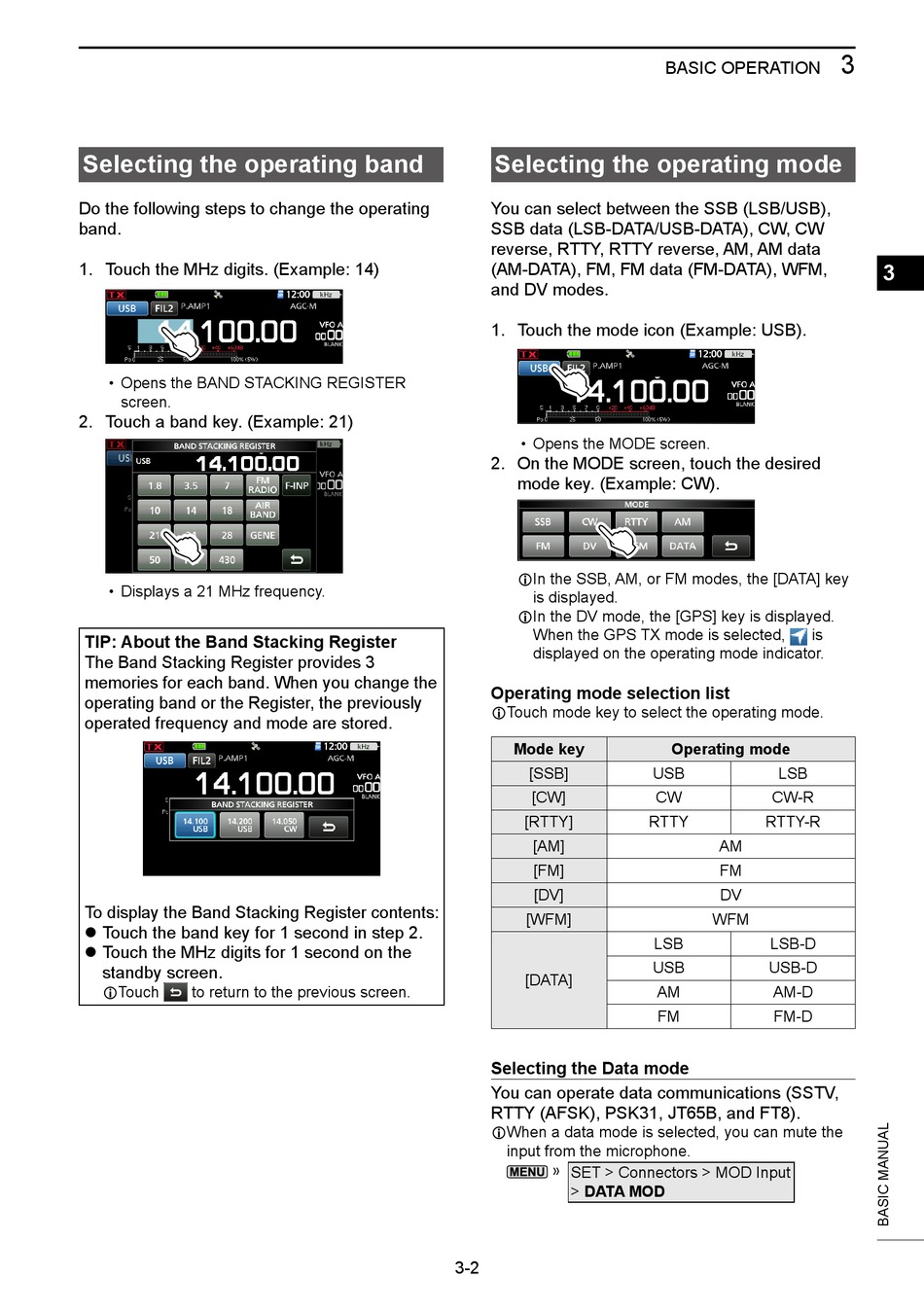

Selecting the operating band

Do the following steps to change the operating
band.
1. Touch the MHz digits. (Example: 14)
• Opens the BAND STACKING REGISTER
screen.
2. Touch a band key. (Example: 21)
• Displays a 21 MHz frequency.
TIP: About the Band Stacking Register
The Band Stacking Register provides 3
memories for each band. When you change the
operating band or the Register, the previously
operated frequency and mode are stored.
To display the Band Stacking Register contents:
z Touch the band key for 1 second in step 2.
z Touch the MHz digits for 1 second on the
standby screen.
to return to the previous screen.
LTouch

Selecting the operating mode

You can select between the SSB (LSB/USB),
SSB data (LSB-DATA/USB-DATA), CW, CW
reverse, RTTY, RTTY reverse, AM, AM data
(AM-DATA), FM, FM data (FM-DATA), WFM,
and DV modes.
1. Touch the mode icon (Example: USB).
• Opens the MODE screen.
2. On the MODE screen, touch the desired
mode key. (Example: CW).
LIn the SSB, AM, or FM modes, the [DATA] key
is displayed.
LIn the DV mode, the [GPS] key is displayed.
When the GPS TX mode is selected,
displayed on the operating mode indicator.

Operating mode selection list

LTouch mode key to select the operating mode.
Mode key
[SSB]
[CW]
[RTTY]
[AM]
[FM]
[DV]
[WFM]
[DATA]

Selecting the Data mode

You can operate data communications (SSTV,
RTTY (AFSK), PSK31, JT65B, and FT8).
LWhen a data mode is selected, you can mute the
input from the microphone.
» SET > Connectors > MOD Input
> DATA MOD
3-2
BASIC OPERATION
is
Operating mode
USB LSB
CW CW-R
RTTY RTTY-R
AM
FM
DV
WFM
LSB LSB-D
USB USB-D
AM AM-D
FM FM-D
