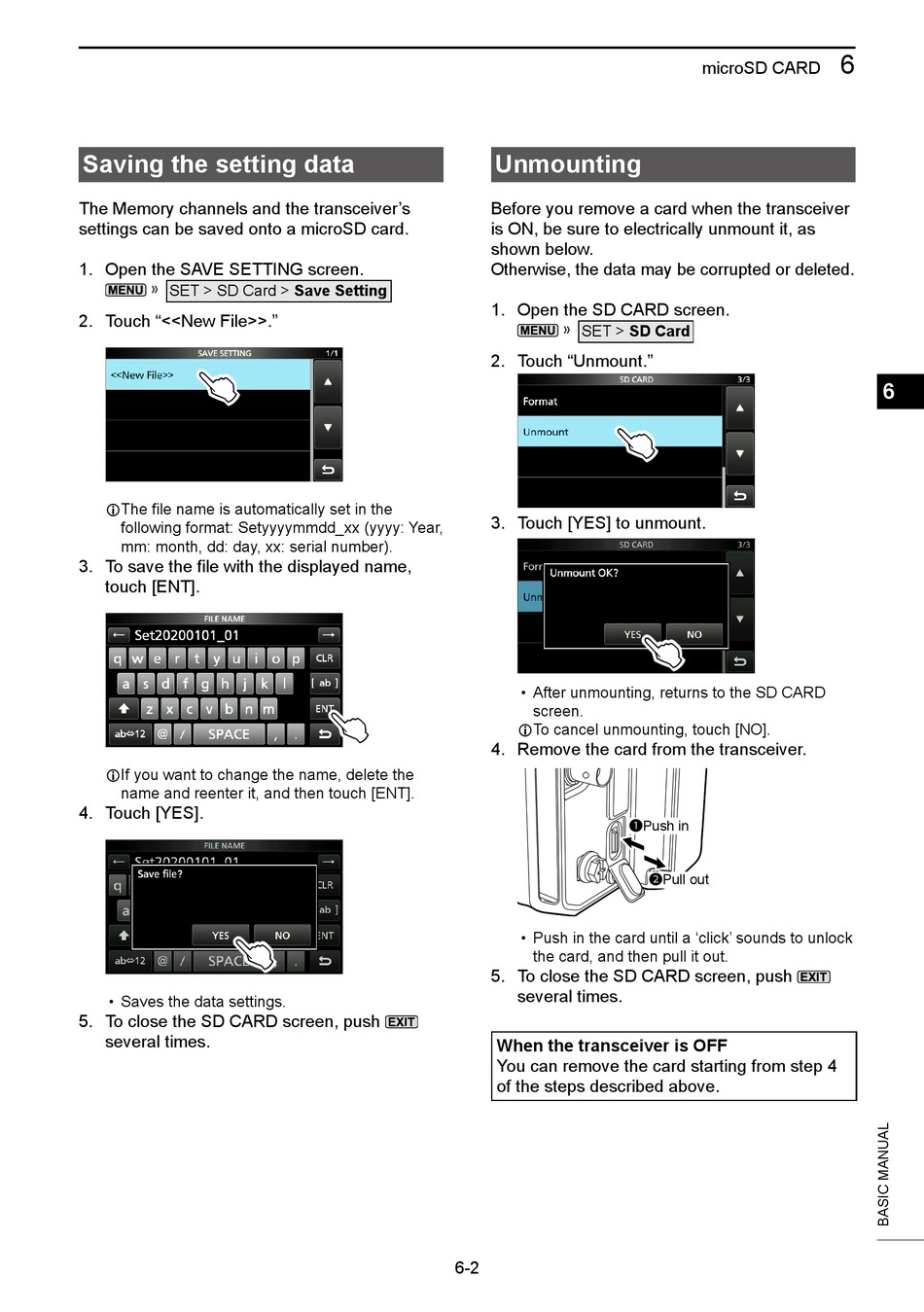

Saving the setting data

The Memory channels and the transceiver's
settings can be saved onto a microSD card.
1. Open the SAVE SETTING screen.
» SET > SD Card > Save Setting
2. Touch "<<New File>>."
LThe file name is automatically set in the
following format: Setyyyymmdd_xx (yyyy: Year,
mm: month, dd: day, xx: serial number).
3. To save the file with the displayed name,
touch [ENT].
LIf you want to change the name, delete the
name and reenter it, and then touch [ENT].
4. Touch [YES].
• Saves the data settings.
5. To close the SD CARD screen, push
several times.

Unmounting

Before you remove a card when the transceiver
is ON, be sure to electrically unmount it, as
shown below.
Otherwise, the data may be corrupted or deleted.
1. Open the SD CARD screen.
» SET > SD Card
2. Touch "Unmount."
3. Touch [YES] to unmount.
• After unmounting, returns to the SD CARD
screen.
LTo cancel unmounting, touch [NO].
4. Remove the card from the transceiver.
1Push in
• Push in the card until a 'click' sounds to unlock
the card, and then pull it out.
5. To close the SD CARD screen, push
several times.
When the transceiver is OFF
You can remove the card starting from step 4
of the steps described above.
