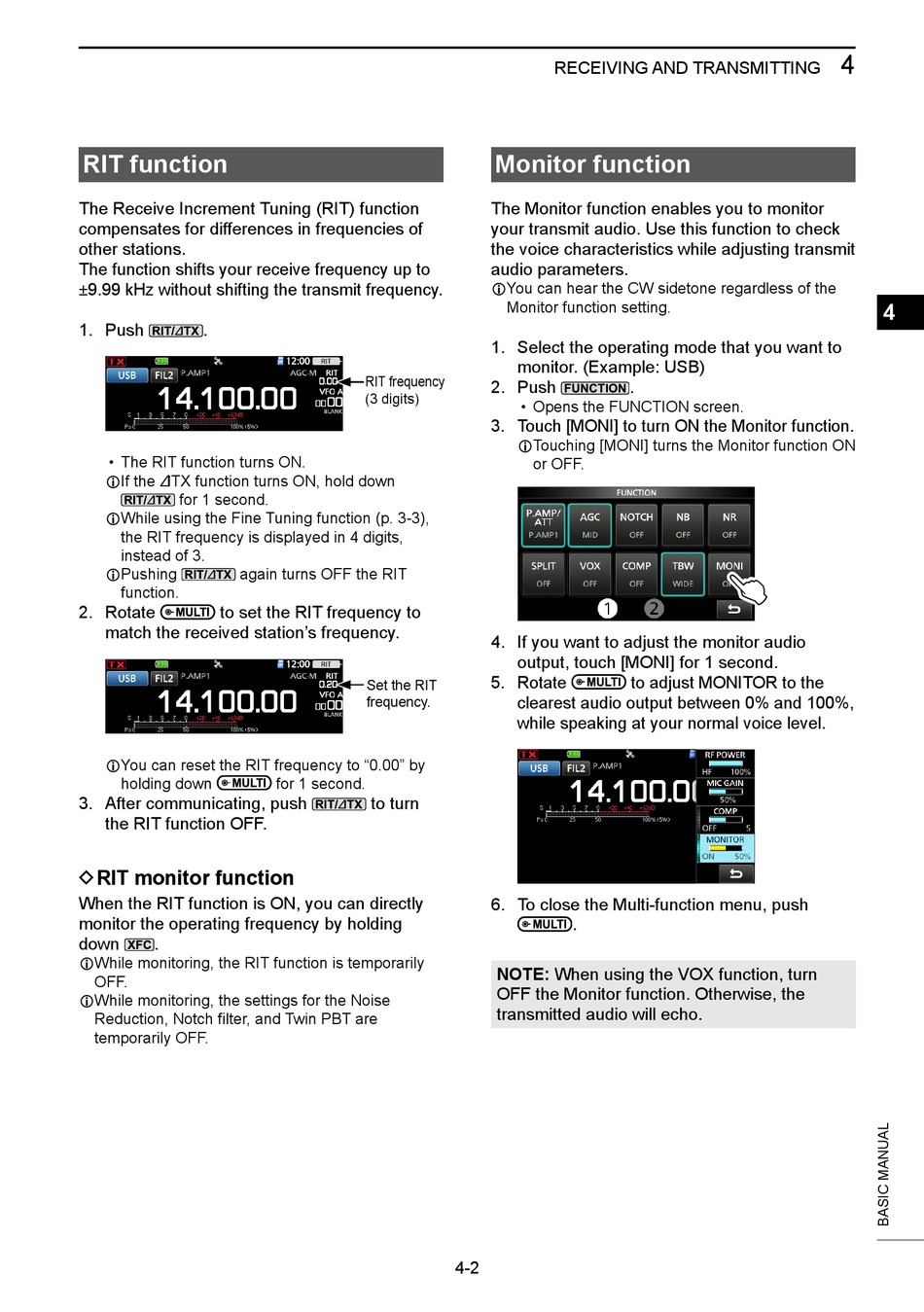

RIT function

The Receive Increment Tuning (RIT) function
compensates for differences in frequencies of
other stations.
The function shifts your receive frequency up to
±9.99 kHz without shifting the transmit frequency.
1. Push .
• The RIT function turns ON.
LIf the ∂TX function turns ON, hold down
for 1 second.
LWhile using the Fine Tuning function (p. 3-3),
the RIT frequency is displayed in 4 digits,
instead of 3.
again turns OFF the RIT
LPushing
function.
2. Rotate to set the RIT frequency to
match the received station's frequency.
LYou can reset the RIT frequency to "0.00" by
holding down
3. After communicating, push
the RIT function OFF.
DRIT monitor function
When the RIT function is ON, you can directly
monitor the operating frequency by holding
down .
LWhile monitoring, the RIT function is temporarily
OFF.
LWhile monitoring, the settings for the Noise
Reduction, Notch filter, and Twin PBT are
temporarily OFF.
RIT frequency
(3 digits)
Set the RIT
frequency.
for 1 second.
to turn
RECEIVING AND TRANSMITTING

Monitor function

The Monitor function enables you to monitor
your transmit audio. Use this function to check
the voice characteristics while adjusting transmit
audio parameters.
LYou can hear the CW sidetone regardless of the
Monitor function setting.
1. Select the operating mode that you want to
monitor. (Example: USB)
2. Push
• Opens the FUNCTION screen.
3. Touch [MONI] to turn ON the Monitor function.
LTouching [MONI] turns the Monitor function ON
or OFF.
4. If you want to adjust the monitor audio
output, touch [MONI] for 1 second.
5. Rotate
clearest audio output between 0% and 100%,
while speaking at your normal voice level.
6. To close the Multi-function menu, push
.
NOTE: When using the VOX function, turn
OFF the Monitor function. Otherwise, the
transmitted audio will echo.
4-2
.
to adjust MONITOR to the
4
4
